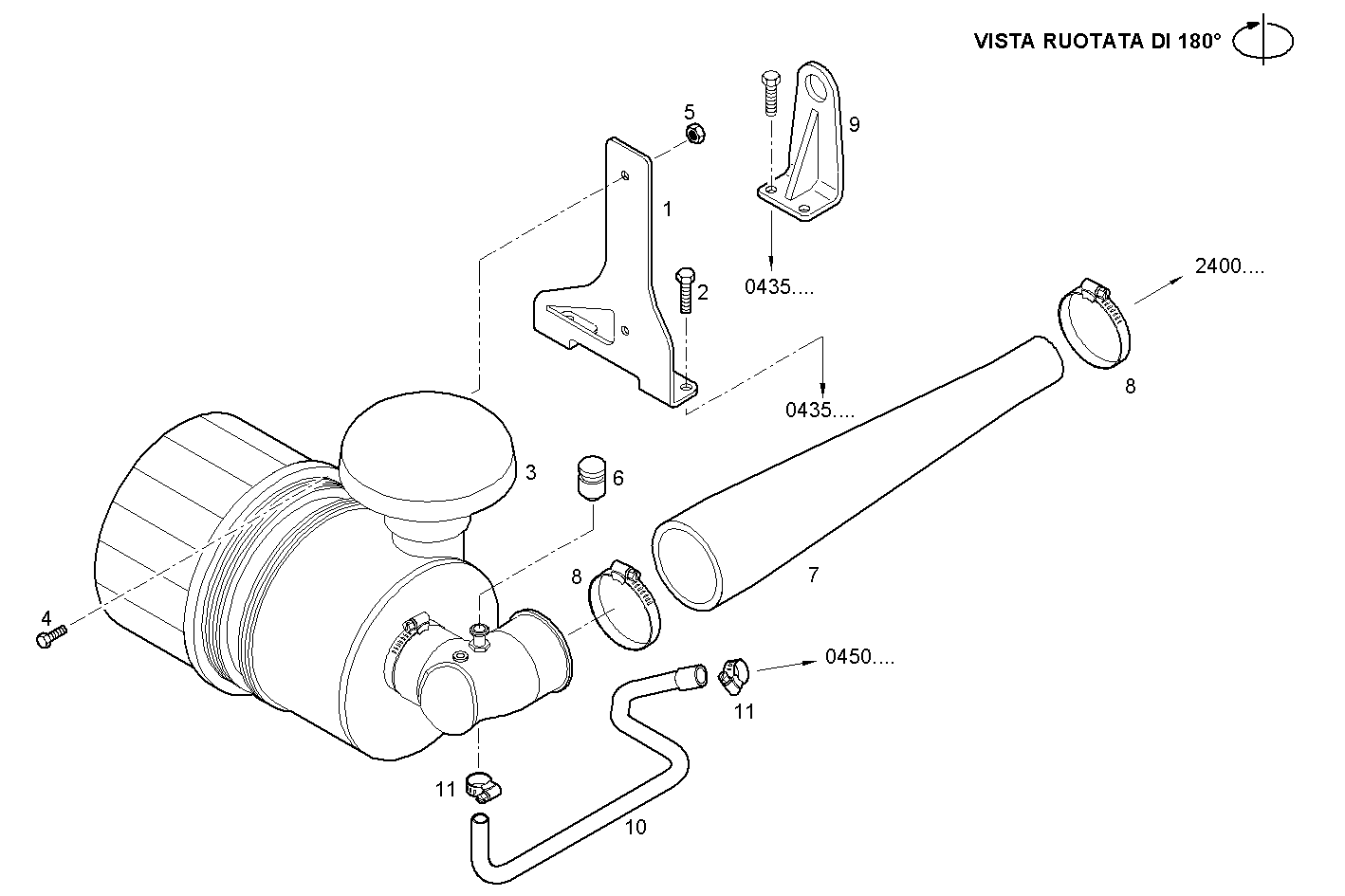

AIR CLEANER
Assembly ID: A21210549
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8050866 | FILTER SUPPORT | 1 | ||
| 2 | 16588025 | HEXAGON BOLT | 2 | ||
| 3 | 8050850 | AIR CLEANER | 1 | ||
| 4 | 16673835 | HEXAGON BOLT | 2 | ||
| 5 | 17044725 | HEXAGON NUT | 2 | ||
| 6 | 8027294 | CHOCKED FILTER INDIC. | 1 | ||
| 7 | 8050865 | FILTER HOSE | 1 | ||
| 8 | 17765091 | CLIP | 2 | ||
| 9 | 8049260 | HOOK | 1 | ||
| 10 | 8050867 | RUBBER SLEEVE | 1 | ||
| 11 | 17764594 | HOSE CLIP | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F32MNTX88.00 | F32 mechanic. - TIER 3 | view |
| F32TM1X.A008 | F32 mechanic. - TIER 3 | view |
| F32MNSA85.10 | F32 mechanic. - 2002/88/CE | view |
| F32SM1A.S500 | F32 mechanic. - 2002/88/CE | view |
| GEF3240MA.R980 | GEF32 mechanic. - 2008/88/CE | view |
| F32MNTA85.00 | F32 mechanic. - TIER 2 | view |
| F32TM1A.S500 | F32 mechanic. - 2002/88/CE | view |
| GEF3250MA.R980 | GEF32 mechanic. - 2008/88/CE | view |
