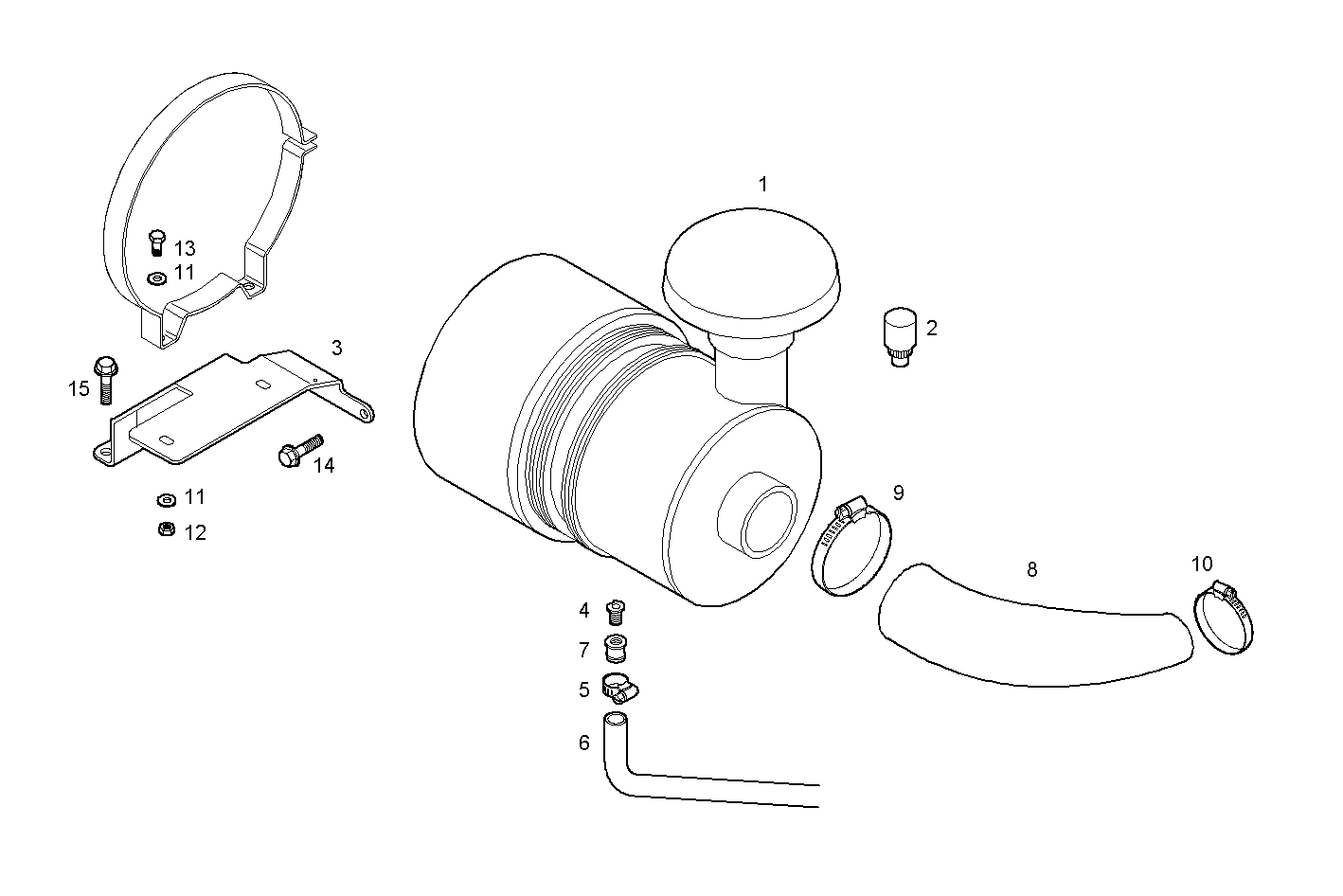

AIR CLEANER

Assembly ID: A21220501

Parts

#	Part number	Description	Quantity
1	8041166	AIR CLEANER	1
2	8027294	CHOCKED FILTER INDIC.	1
3	8041491	FILTER SUPPORT	1
4	8015315	PIPE SOCKET	1
5	18088392	CLIP	2
6	8034455	RUBBER SLEEVE	1
7	8015133	PIPE SOCKET	1
8	8034043	FILTER HOSE	1
9	17765791	CLIP	1
	17765794	CLIP	1
10	17765491	CLIP	1
	17765494	CLIP	1
11	17090174	SPRING WASHER	2
12	17038131	HEXAGON NUT	2
13	16607524	HEXAGON BOLT	2
14	18139424	HEXAGON BOLT	1
15	16677735	HEXAGON BOLT	2

Applies to engines

Engine	Family
GENEF180E.R980	GENEF 6 electron. - TIER 2	view
N60ENTE66.00	NEF 6 electron. - TIER 2	view
NEF60TE1.A001	NEF 6 electron. - TIER 2	view
N60ENTE60.00	NEF 6 electron. - TIER 2	view
NEF6TAGE2.A002	NEF 6 electron. - TIER 2	view
NEF60TE2.00	NEF 6 electron. - TIER 2	view
GENEF200E.R980	GENEF 6 electron. - TIER 2	view
NEF60TE2.A559	NEF 6 electron. - TIER 2	view
NEF60TE2.A001	NEF 6 electron. - TIER 2	view
GENEF200E.R990	GENEF 6 electron. - TIER 2	view
GENEF200E.A71M	GENEF 6 electron. - TIER 2	view
GENEF200E.A551	GENEF 6 electron. - TIER 2	view
GENEF200E.A72M	GENEF 6 electron. - TIER 2	view
GENEF200E.A552	GENEF 6 electron. - TIER 2	view
NEF60TE2.A558	NEF 6 electron. - TIER 2	view
NEF60TE2.A002	NEF 6 electron. - TIER 2	view
NEF60TE2.A003	NEF 6 electron. - TIER 2	view
NEF60TE2.A004	NEF 6 electron. - TIER 2	view
NEF60TE1.A002	NEF 6 electron. - TIER 2	view
NEF60TE2.A005	NEF 6 electron. - TIER 2	view
GENEF200E.A002	GENEF 6 electron. - TIER 2	view
GENEF200E.A001	GENEF 6 electron. - TIER 2	view
GENEF180E.A002	GENEF 6 electron. - TIER 2	view
GENEF180E.A001	GENEF 6 electron. - TIER 2	view
N67ENTX67.00	NEF 6 electron. - TIER 3	view
N67ENTX68.00	NEF 6 electron. - TIER 3	view
NEF67TE2.X001	NEF 6 electron. - TIER 3	view
NEF67TE1X.A001	NEF 6 electron. - TIER 3	view
NEF67TE2X.R981	NEF 6 electron. - TIER 3	view
NEF67TE1X.R981	NEF 6 electron. - TIER 3	view
N67ENTA65.00	NEF 6 electron. - 2002/88/CE	view
GENEF200EA.R980	GENEF 6 electron. - 2002/88/CE	view
NEF67TE2A.A001	NEF 6 electron. - 2002/88/CE	view
GENEF200EA.A001	GENEF 6 electron. - 2002/88/CE	view
GENEF200EA.A002	GENEF 6 electron. - 2002/88/CE	view
GENEF200EA.A551	GENEF 6 electron. - 2002/88/CE	view
GENEF200EA.A552	GENEF 6 electron. - 2002/88/CE	view
GENEF200EA.A72M	GENEF 6 electron. - 2002/88/CE	view
GENEF200EA.R990	GENEF 6 electron. - 2002/88/CE	view
NEF67TE2A.A003	NEF 6 electron. - 2002/88/CE	view
NEF67TE1X.A008	NEF 6 electron. - TIER 3	view
NEF67TE2X.A008	NEF 6 electron. - TIER 3	view
NEF67TE2X.A570	NEF 6 electron. - TIER 3	view
NEF67TE2A.A002	NEF 6 electron. - 2002/88/CE	view
NEF67TE2A.A005	NEF 6 electron. - 2002/88/CE	view
NEF67TE2A.A006	NEF 6 electron. - 2002/88/CE	view
NEF67TE2A.A558	NEF 6 electron. - 2002/88/CE	view
NEF67TE2A.A559	NEF 6 electron. - 2002/88/CE	view
