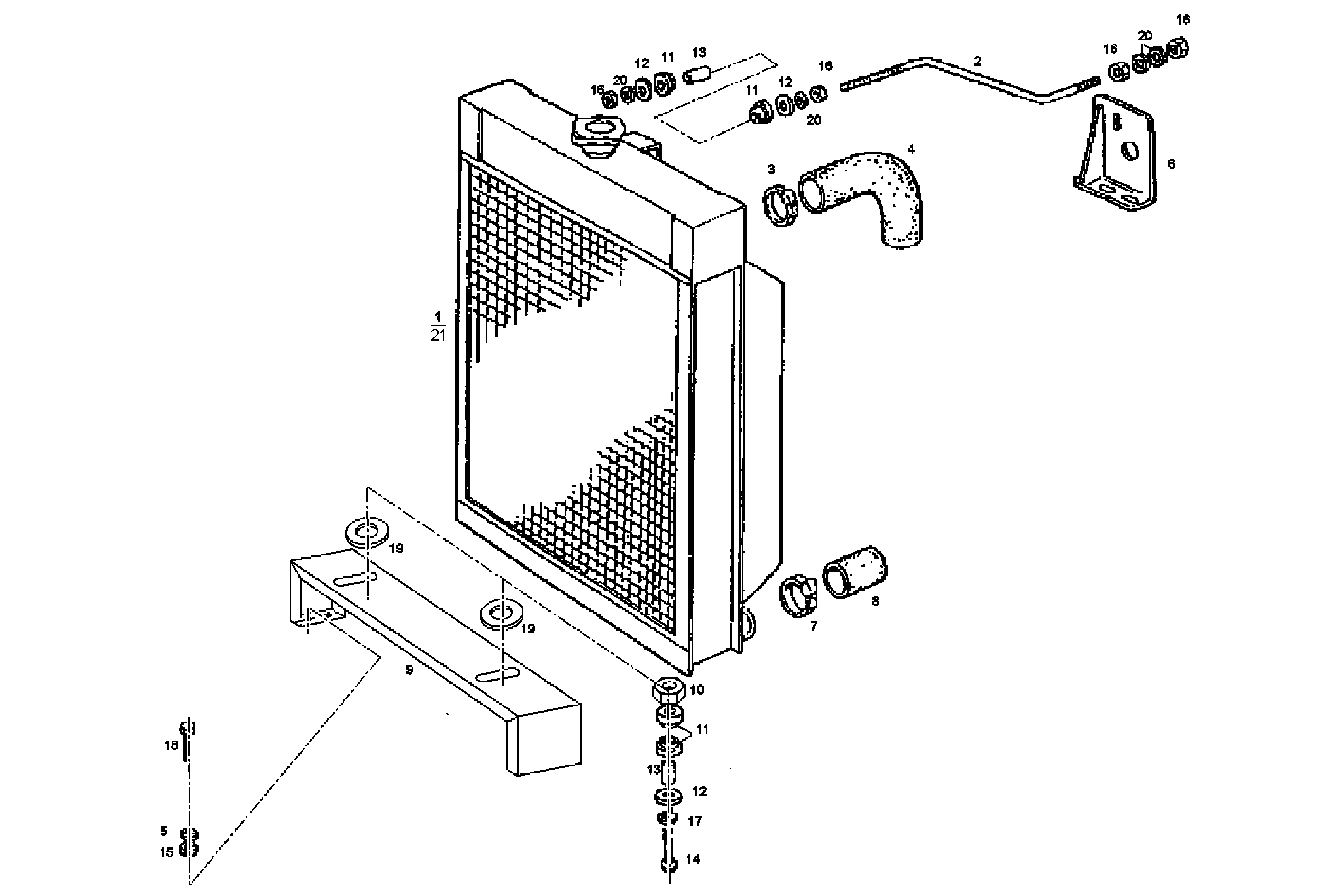

| 1 |
8024731
|
WATER RADIATOR
|
|
1
|
|
|
8039266 |
WATER RADIATOR |
|
1 |
|
| 2 |
8024390
|
TIE ROD
|
|
1
|
|
| 3 |
17764991
|
CLIP
|
|
2
|
|
| 4 |
8024783
|
CONNECTOR SLEEVE
|
|
1
|
|
| 5 |
17088474
|
WASHER
|
|
2
|
|
| 6 |
8020521
|
RETAINER
|
|
1
|
|
| 7 |
17764791
|
CLIP
|
|
2
|
|
|
17764792 |
CLIP |
|
2 |
|
| 8 |
17742887
|
RUBBER SLEEVE
|
|
1
|
|
| 9 |
503110170
|
SUPPORT
|
|
1
|
|
| 10 |
17038131
|
HEXAGON NUT
|
|
2
|
|
| 11 |
741569
|
RUBBER LUG
|
|
6
|
|
| 12 |
741570
|
WASHER
|
|
6
|
|
| 13 |
8108634
|
SPACING BAR
|
|
3
|
|
| 14 |
16608525
|
HEXAGON BOLT
|
|
2
|
|
| 15 |
17037821
|
HEXAGON NUT
|
|
4
|
|
| 16 |
17038425
|
HEXAGON NUT
|
|
4
|
|
| 17 |
17090174
|
SPRING WASHER
|
|
2
|
|
| 18 |
16603677
|
HEXAGON BOLT
|
|
4
|
|
| 19 |
17096050
|
WASHER
|
|
4
|
|
| 20 |
17091374
|
SPRING WASHER
|
|
4
|
|
| 21 |
8039266
|
WATER RADIATOR
|
|
1
|
|
