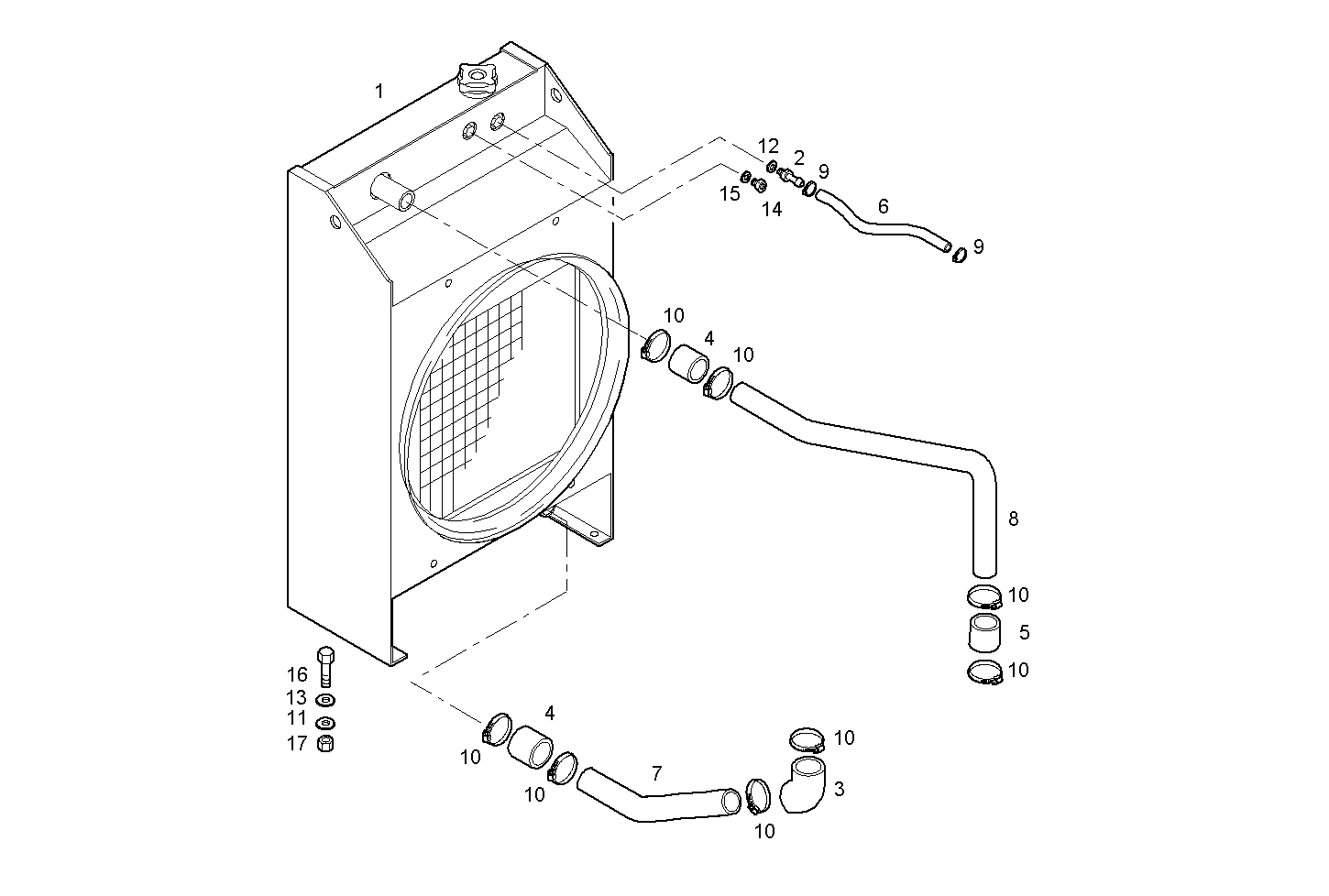

RADIATOR
Assembly ID: A22010512
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8041262 | WATER RADIATOR | 1 | ||
| 2 | 4935134 | OIL LINE | 1 | ||
| 3 | 8034192 | WATER HOSE | 1 | ||
| 4 | 4863960 | WATER HOSE | 2 | ||
| 5 | 4863962 | WATER HOSE | 1 | ||
| 6 | 8034635 | BREATHER PIPE | 1 | ||
| 7 | 8035527 | WATER PIPE | 1 | ||
| 8 | 8039832 | WATER PIPE | 1 | ||
| 9 | 18087993 | CLIP | 2 | ||
| 10 | 17764892 | PIPE CLIP | 8 | ||
| 11 | 17095524 | WASHER | 4 | ||
| 12 | 4858607 | WASHER | 1 | ||
| 13 | 17091674 | WASHER | 4 | ||
| 14 | 4935727 | PIPE SOCKET | 1 | ||
| 15 | 10284460 | SEAL GASKET | 1 | ||
| 16 | 16612224 | HEXAGON BOLT | 4 | ||
| 17 | 17038725 | NUT | 4 |
Applies to engines
| Engine | Family | |
|---|---|---|
| N67MNSI80.00 | NEF 6 mechanic. - TIER 2 | view |
| NEF67SM2.A002 | NEF 6 mechanic. - TIER 2 | view |
| GENEF125M.R980 | GENEF 6 mechanic. - TIER 2 | view |
| NEF67SM2.A001 | NEF 6 mechanic. - TIER 2 | view |
| NEF67SM1.A001 | NEF 6 mechanic. - TIER 2 | view |
| NEF67SM1.A002 | NEF 6 mechanic. - TIER 2 | view |
| NEF67SM1.A559 | NEF 6 mechanic. - TIER 2 | view |
| GENEF125M.A71M | GENEF 6 mechanic. - TIER 2 | view |
| GENEF125M.A551 | GENEF 6 mechanic. - TIER 2 | view |
| GENEF125M.A001 | GENEF 6 mechanic. - TIER 2 | view |
