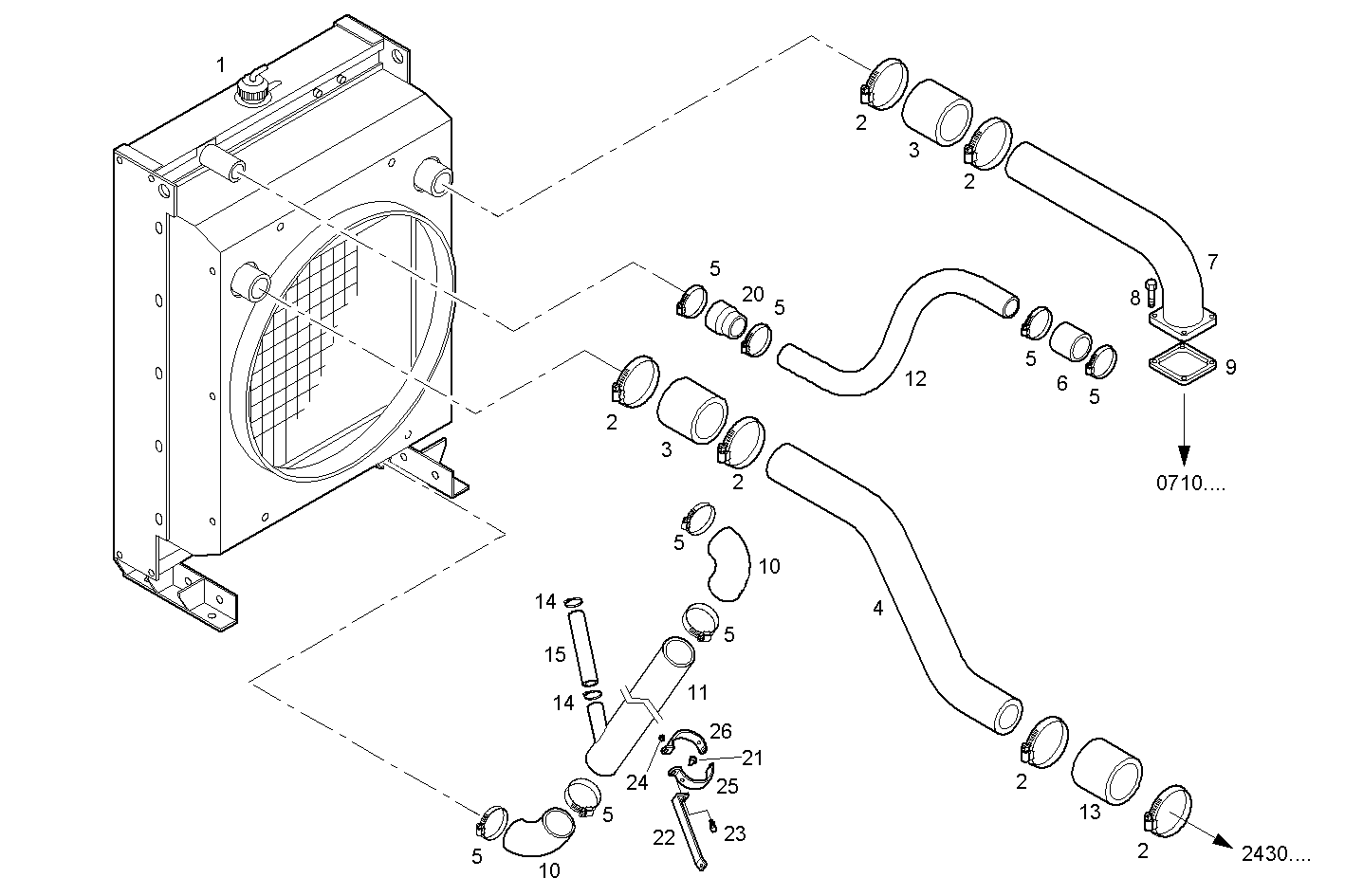

RADIATOR 2 CIRCUITS AIR/WATER

Assembly ID: A22010522

RADIATOR 2 CIRCUITS AIR/WATER

Parts

# Part number Description Note Quantity
1 8044662 WATER RADIATOR 1
2 18089191 CLIP 6
3 8047693 TURBOCHARGER HOSE 2
4 8047589 AIR PIPE/DUCT 1
5 17764892 PIPE CLIP 8
6 8040142 RUBBER SLEEVE 1
7 8046335 AIR PIPE/DUCT 1
8 16586424 HEXAGON BOLT 4
9 4899921 FLAT ENGINE GASKET 1
10 8034192 WATER HOSE 2
11 8046189 WATER PIPE 1
12 8046339 WATER PIPE 1
13 98443275 TURBOCHARGER HOSE 1
14 18087993 CLIP 2
15 17724687 HOSE 1
16 16612224 HEXAGON BOLT 4
17 17095524 WASHER 4
18 17091674 WASHER 4
19 17038725 NUT 4
20 8048889 WATER HOSE 1
21 4565875 RUBBER PAD 4
22 8046930 RETAINER 1
24 17045731 NUT 1
25 8113296 CLAMP 1
26 8113295 CLAMP 1

Applies to engines

Engine Family
N60ENTE66.00 NEF 6 electron. - TIER 2 view
NEF60TE1.A001 NEF 6 electron. - TIER 2 view
N60ENTE60.00 NEF 6 electron. - TIER 2 view
GENEF200E.R980 GENEF 6 electron. - TIER 2 view
NEF60TE2.A559 NEF 6 electron. - TIER 2 view
NEF60TE2.A001 NEF 6 electron. - TIER 2 view
GENEF200E.A71M GENEF 6 electron. - TIER 2 view
GENEF200E.A551 GENEF 6 electron. - TIER 2 view
GENEF200E.A72M GENEF 6 electron. - TIER 2 view
GENEF200E.A552 GENEF 6 electron. - TIER 2 view
NEF60TE2.A558 NEF 6 electron. - TIER 2 view
NEF60TE2.A002 NEF 6 electron. - TIER 2 view
NEF60TE2.A003 NEF 6 electron. - TIER 2 view
NEF60TE2.A004 NEF 6 electron. - TIER 2 view
NEF60TE1.A002 NEF 6 electron. - TIER 2 view
NEF60TE2.A005 NEF 6 electron. - TIER 2 view
GENEF200E.A002 GENEF 6 electron. - TIER 2 view
GENEF200E.A001 GENEF 6 electron. - TIER 2 view
GENEF180E.A002 GENEF 6 electron. - TIER 2 view
GENEF180E.A001 GENEF 6 electron. - TIER 2 view
N67ENTX67.00 NEF 6 electron. - TIER 3 view
N67ENTX68.00 NEF 6 electron. - TIER 3 view
N67MNTX68.00 NEF 6 mechanic. - TIER 3 view
NEF67TE2.X001 NEF 6 electron. - TIER 3 view
NEF67TE1X.A001 NEF 6 electron. - TIER 3 view
NEF67TE2X.R981 NEF 6 electron. - TIER 3 view
NEF67TE1X.R981 NEF 6 electron. - TIER 3 view
N67ENTA65.00 NEF 6 electron. - 2002/88/CE view
GENEF200EA.R980 GENEF 6 electron. - 2002/88/CE view
NEF67TE2A.A001 NEF 6 electron. - 2002/88/CE view
GENEF200EA.A001 GENEF 6 electron. - 2002/88/CE view
GENEF200EA.A002 GENEF 6 electron. - 2002/88/CE view
GENEF200EA.A551 GENEF 6 electron. - 2002/88/CE view
GENEF200EA.A552 GENEF 6 electron. - 2002/88/CE view
GENEF200EA.A71M GENEF 6 electron. - 2002/88/CE view
GENEF200EA.A72M GENEF 6 electron. - 2002/88/CE view
GENEF200EA.R990 GENEF 6 electron. - 2002/88/CE view
NEF67TE2A.A003 NEF 6 electron. - 2002/88/CE view
NEF67TE1X.A008 NEF 6 electron. - TIER 3 view
NEF67TE2X.A008 NEF 6 electron. - TIER 3 view
NEF67TE2X.A570 NEF 6 electron. - TIER 3 view
NEF67TE2A.A002 NEF 6 electron. - 2002/88/CE view
NEF67TE2A.A005 NEF 6 electron. - 2002/88/CE view
NEF67TE2A.A006 NEF 6 electron. - 2002/88/CE view
NEF67TE2A.A558 NEF 6 electron. - 2002/88/CE view
NEF67TE2A.A559 NEF 6 electron. - 2002/88/CE view
