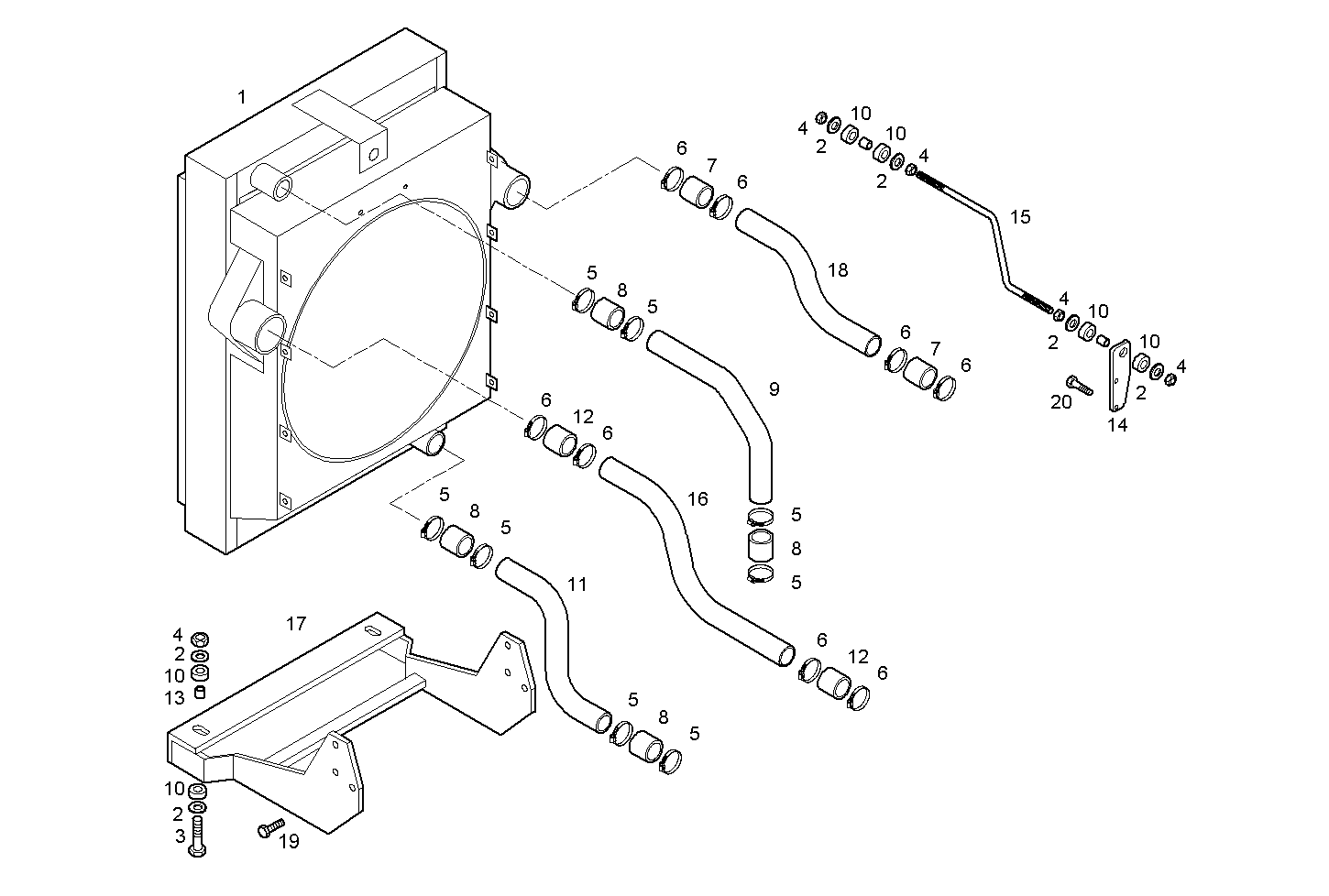

RADIATOR 2 CIRCUITS AIR/WATER
Assembly ID: A22010527
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8046050 | WATER RADIATOR | 1 | ||
| 2 | 741570 | WASHER | 8 | ||
| 3 | 16588824 | HEXAGON BOLT | 2 | ||
| 4 | 16750425 | HEXAGON NUT | 4 | ||
| 5 | 17764991 | CLIP | 12 | ||
| 6 | 17765192 | HOSE CLIP | 4 | ||
| 7 | 8036376 | WATER HOSE | 2 | ||
| 8 | 4863960 | WATER HOSE | 4 | ||
| 9 | 8047908 | WATER PIPE | 1 | ||
| 10 | 741569 | RUBBER LUG | 8 | ||
| 11 | 8047909 | WATER PIPE | 1 | ||
| 12 | 98443275 | TURBOCHARGER HOSE | 2 | ||
| 13 | 8108634 | SPACING BAR | 2 | ||
| 14 | 8048949 | RETAINER | 1 | ||
| 15 | 8037523 | TIE ROD | 1 | ||
| 16 | 8037761 | AIR PIPE/DUCT | 1 | ||
| 17 | 8037563 | SUPPORT | 1 | ||
| 18 | 8037762 | AIR PIPE/DUCT | 1 | ||
| 19 | 16588025 | HEXAGON BOLT | 6 | ||
| 20 | 16673735 | HEXAGON BOLT | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| N45MNTX20.00 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTX20.50 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTX20.50A800 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTX20.50A810 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTX21.50 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTA20.50A800 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTA20.50A810 | NEF 4 mechanic. - TIER 3 | view |
