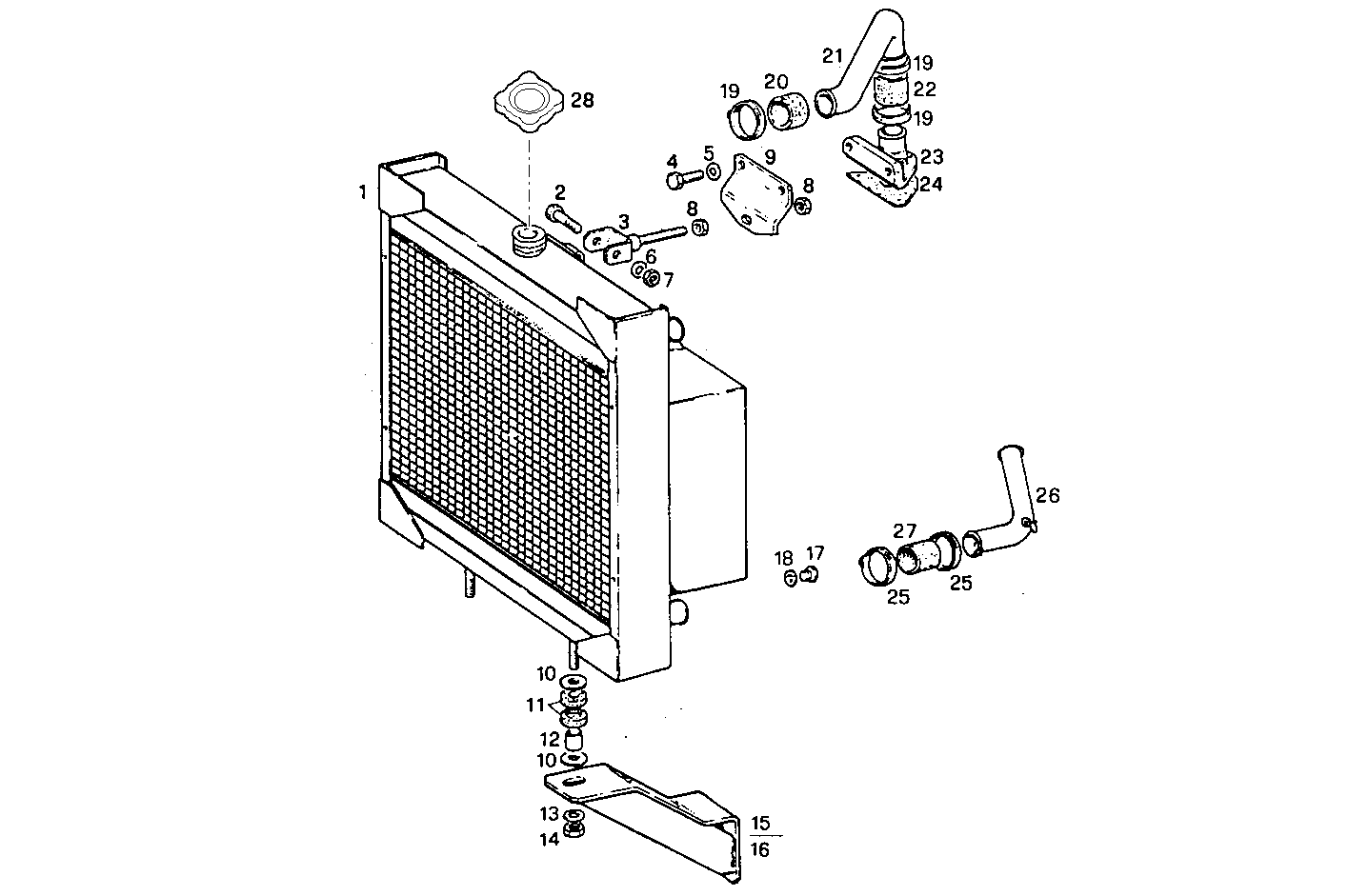

| 1 |
8101691
|
WATER RADIATOR
|
|
1
|
|
| 2 |
11227021
|
HEXAGON BOLT
|
|
1
|
|
| 3 |
8108105
|
TIE ROD
|
|
1
|
|
| 4 |
16043521
|
SCREW
|
|
2
|
|
| 5 |
11194079
|
SPRING WASHER
|
|
2
|
|
| 6 |
11194179
|
SPRING WASHER
|
|
1
|
|
| 7 |
12164711
|
HEXAGON NUT
|
|
1
|
|
| 8 |
16101511
|
HEXAGON NUT
|
|
2
|
|
|
17038631 |
HEXAGON NUT |
|
2 |
|
| 9 |
8104708
|
PLATE
|
|
1
|
|
| 10 |
741570
|
WASHER
|
|
4
|
|
| 11 |
741569
|
RUBBER LUG
|
|
4
|
|
| 12 |
8108634
|
SPACING BAR
|
|
2
|
|
| 13 |
11198379
|
SPRING WASHER
|
|
2
|
|
|
17090274 |
SPRING WASHER |
|
2 |
|
| 14 |
12164711
|
HEXAGON NUT
|
|
2
|
|
| 15 |
8108096
|
SUPPORT
|
|
1
|
|
| 16 |
8108097
|
SUPPORT
|
|
1
|
|
| 17 |
8802992
|
RETAINER COCK
|
|
1
|
|
| 18 |
10278660
|
SEAL GASKET
|
|
1
|
|
| 19 |
17764792
|
HOSE CLIP
|
|
4
|
|
| 20 |
4641232
|
WATER HOSE
|
|
1
|
|
|
4787630 |
WATER HOSE |
|
1 |
|
| 21 |
8101749
|
WATER PIPE
|
|
1
|
|
| 22 |
4952453
|
WATER HOSE
|
|
1
|
|
| 23 |
8101449
|
WATER PIPE
|
|
1
|
|
| 24 |
4599809
|
FLAT ENGINE GASKET
|
|
1
|
|
|
98420754 |
FLAT ENGINE GASKET |
|
1 |
|
| 25 |
17764992
|
CLIP
|
|
4
|
|
| 26 |
8077105
|
WATER PIPE
|
|
1
|
|
|
17764792 |
WATER PIPE |
|
1 |
|
| 27 |
4927830
|
RUBBER SLEEVE
|
|
1
|
|
| 28 |
4845408
|
PLUG
|
|
1
|
|
