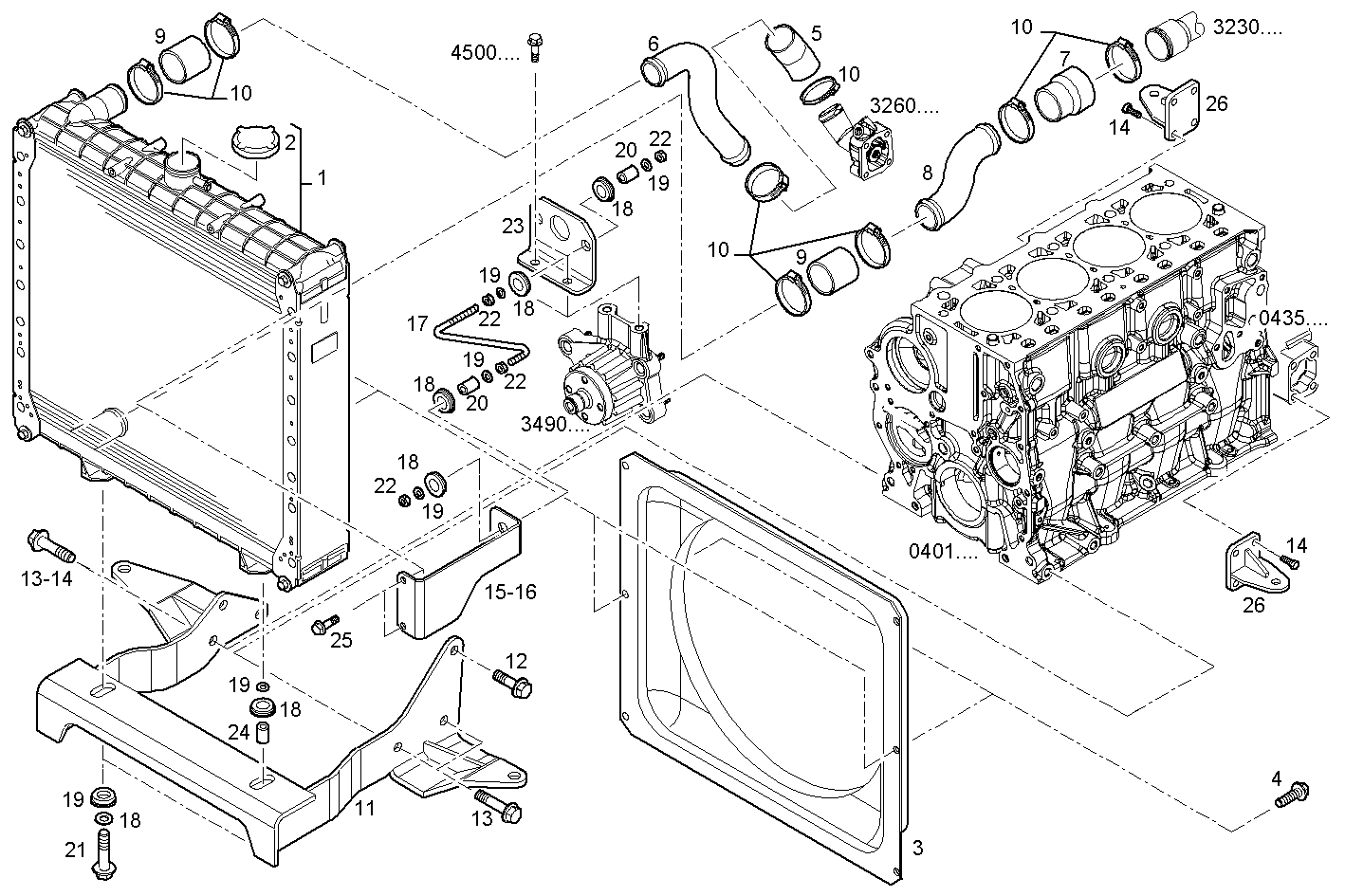

RADIATOR
Assembly ID: A22040501
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8049316 | WATER RADIATOR | 1 | ||
| 2 | 87558952 | RADIATOR PLUG | 1 | ||
| 3 | 8037087 | AIR HOOD | 1 | ||
| 4 | 16597925 | HEXAGON BOLT | 6 | ||
| 5 | 8049516 | WATER HOSE | 1 | ||
| 6 | 8049719 | WATER PIPE | 1 | ||
| 7 | 98447313 | WATER HOSE | 1 | ||
| 8 | 8049733 | WATER PIPE | 1 | ||
| 9 | 8110724 | RUBBER SLEEVE | 2 | ||
| 10 | 17764892 | PIPE CLIP | 8 | ||
| 11 | 8051377 | SUPPORT | 1 | ||
| 12 | 16588225 | HEXAGON BOLT | 1 | ||
| 13 | 16678135 | HEXAGON BOLT | 3 | ||
| 14 | 16588025 | HEXAGON BOLT | 10 | ||
| 15 | 8049381 | FASTENING BRACKET | 1 | ||
| 16 | 8049382 | FASTENING BRACKET | 1 | ||
| 17 | 8049742 | TIE ROD | 2 | ||
| 18 | 741569 | RUBBER LUG | 8 | ||
| 19 | 741570 | WASHER | 8 | ||
| 20 | 741571 | SPACING BAR | 4 | ||
| 21 | 11343721 | HEXAGON BOLT | 2 | ||
| 22 | 17044921 | HEXAGON NUT | 8 | ||
| 23 | 8048115 | HOOK | 1 | ||
| 24 | 8108634 | SPACING BAR | 2 | ||
| 25 | 16600224 | HEXAGON BOLT | 6 | ||
| 26 | 8050757 | REAR ENG. MOUNT | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F32MNSX00.00 | F32 mechanic. - TIER 3 | view |
| F32MNSX00.00A800 | F32 mechanic. - TIER 3 | view |
