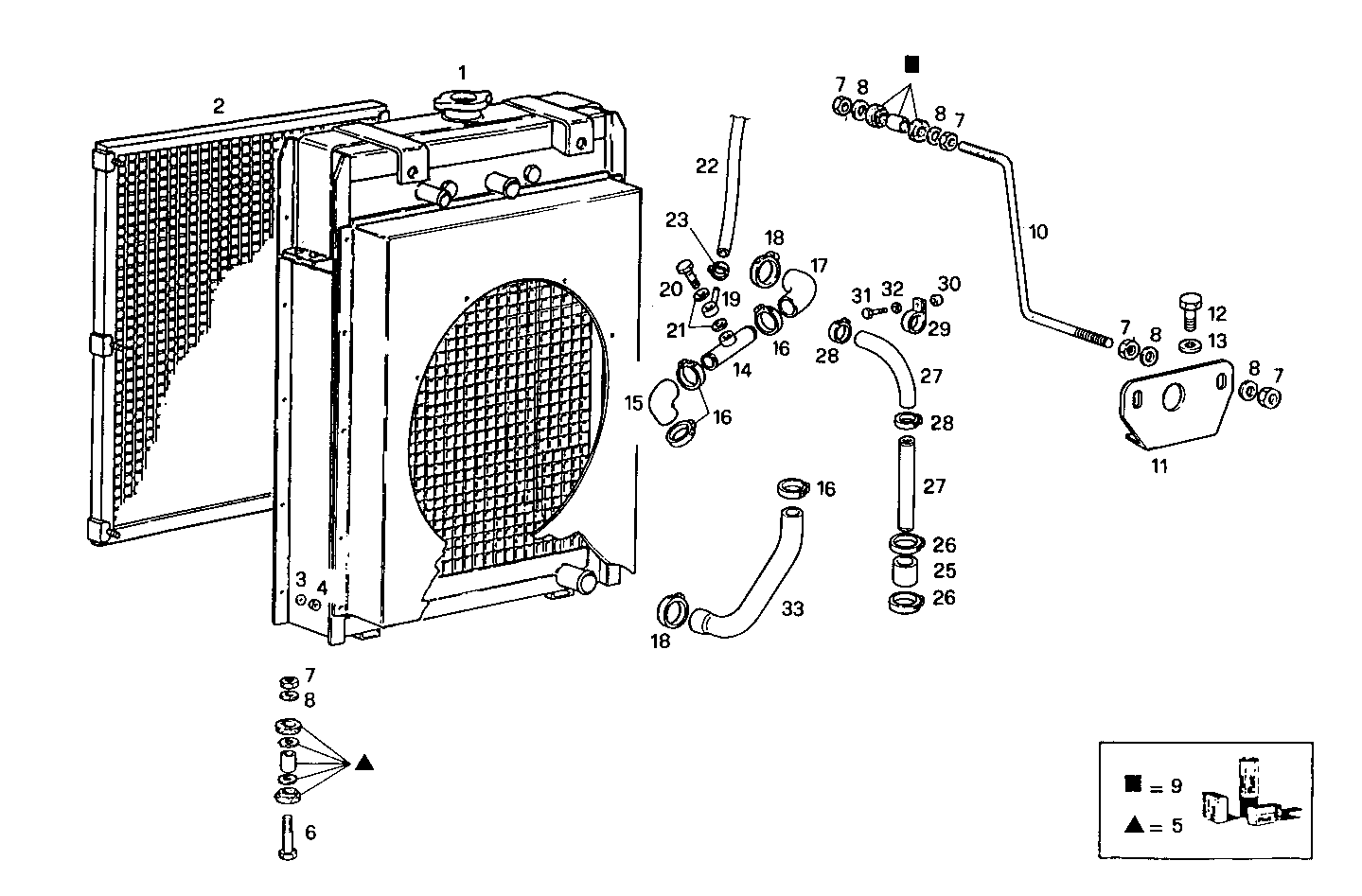

| 1 |
8107679
|
WATER RADIATOR
|
|
1
|
|
| 2 |
8108066
|
PROTECTION
|
|
1
|
|
| 3 |
17089474
|
SPRING WASHER
|
|
6
|
|
| 4 |
17037931
|
HEXAGON NUT
|
|
6
|
|
| 5 |
8090977
|
KIT-RADIATOR
|
|
1
|
|
| 6 |
16610724
|
SCREW
|
|
2
|
|
| 7 |
17038421
|
HEXAGON NUT
|
|
10
|
|
|
17038425 |
HEXAGON NUT |
|
10 |
|
| 8 |
17091074
|
WASHER
|
|
10
|
|
| 9 |
8090413
|
KIT-RADIATOR
|
|
1
|
|
| 10 |
8031385
|
TIE ROD
|
|
2
|
|
| 11 |
8031386
|
RETAINER
|
|
1
|
|
| 12 |
16605524
|
HEXAGON BOLT
|
|
2
|
|
| 13 |
17089474
|
SPRING WASHER
|
|
4
|
|
| 14 |
8031388
|
WATER PIPE
|
|
1
|
|
| 15 |
4952453
|
WATER HOSE
|
|
1
|
|
| 16 |
17764891
|
CLIP
|
|
4
|
|
|
17764892 |
CLIP |
|
4 |
|
| 17 |
4951318
|
RUBBER SLEEVE
|
|
1
|
|
| 18 |
17764991
|
CLIP
|
|
1
|
|
| 19 |
98405463
|
PIPE SOCKET
|
|
1
|
|
| 20 |
4864080
|
SCREW CONNECTOR
|
|
1
|
|
| 21 |
4858606
|
GASKET
|
|
2
|
|
| 22 |
19056687
|
RUBBER HOSE
|
|
1
|
|
|
17724587 |
RUBBER HOSE |
|
1 |
|
| 23 |
18087993
|
CLIP
|
|
2
|
|
| 24 |
8031387
|
WATER PIPE
|
|
1
|
|
| 25 |
61321610
|
RUBBER SLEEVE
|
|
1
|
|
| 26 |
17764691
|
CLIP
|
|
2
|
|
| 27 |
8029471
|
HOSE
|
|
1
|
|
| 28 |
17764591
|
CLIP
|
|
2
|
|
|
17764594 |
CLIP |
|
2 |
|
| 29 |
4033229
|
CLIP
|
|
1
|
|
| 30 |
4930712
|
SPACING BAR
|
|
1
|
|
| 31 |
11288021
|
HEXAGON BOLT
|
|
1
|
|
|
11288024 |
HEXAGON BOLT |
|
1 |
|
| 32 |
17090174
|
SPRING WASHER
|
|
1
|
|
| 33 |
8024991
|
RUBBER SLEEVE
|
|
1
|
|
