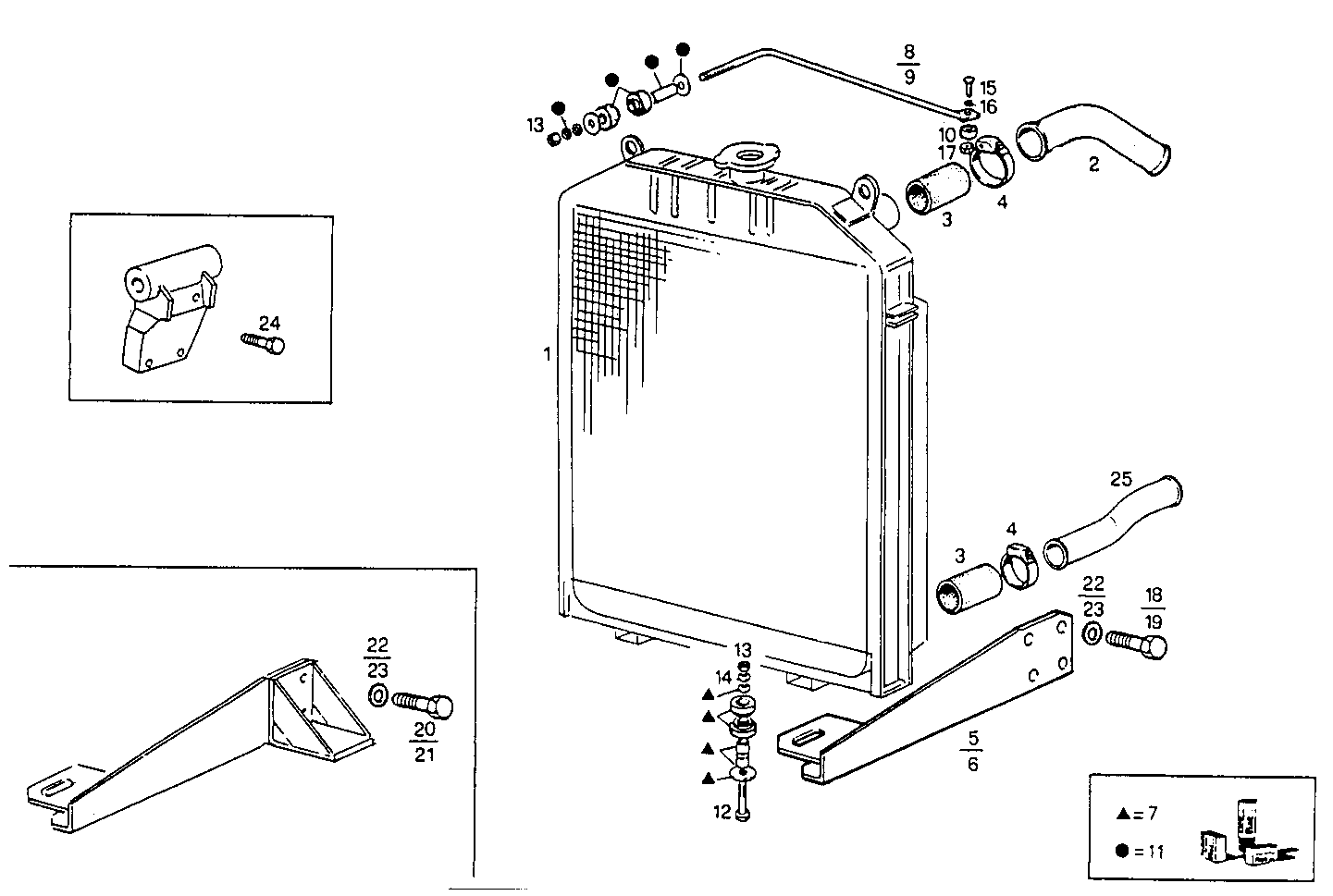

| 1 |
8113880
|
WATER RADIATOR
|
|
1
|
|
| 2 |
8107675
|
WATER PIPE
|
|
1
|
|
| 3 |
10140087
|
RUBBER SLEEVE
|
|
4
|
|
|
4787503 |
RUBBER SLEEVE |
|
4 |
|
| 4 |
12174790
|
CLIP
|
|
8
|
|
|
17764992 |
CLIP |
|
8 |
|
| 5 |
8107526
|
RETAINER
|
|
1
|
|
| 6 |
8107527
|
RETAINER
|
|
1
|
|
| 7 |
8090412
|
KIT-RADIATOR
|
|
1
|
|
| 8 |
8009095
|
TIE ROD
|
|
1
|
|
| 9 |
8009096
|
TIE ROD
|
|
1
|
|
| 10 |
8101556
|
SPACING BAR
|
|
2
|
|
| 11 |
8090413
|
KIT-RADIATOR
|
|
1
|
|
| 12 |
15541321
|
HEXAGON BOLT
|
|
2
|
|
|
15541330 |
HEXAGON BOLT |
|
2 |
|
| 13 |
16101511
|
HEXAGON NUT
|
|
6
|
|
|
17038631 |
HEXAGON NUT |
|
6 |
|
| 14 |
11198671
|
SPRING WASHER
|
|
2
|
|
|
17091174 |
SPRING WASHER |
|
2 |
|
| 15 |
15970921
|
HEXAGON BOLT
|
|
2
|
|
| 16 |
11198371
|
SPRING WASHER
|
|
2
|
|
|
17090274 |
SPRING WASHER |
|
2 |
|
| 17 |
12164711
|
HEXAGON NUT
|
|
2
|
|
| 18 |
11391521
|
HEXAGON BOLT
|
|
4
|
|
| 19 |
15540521
|
SCREW
|
|
4
|
|
|
15540534 |
SCREW |
|
4 |
|
| 20 |
15840521
|
SCREW
|
|
4
|
|
| 21 |
15540621
|
HEXAGON BOLT
|
|
4
|
|
|
15540624 |
HEXAGON BOLT |
|
4 |
|
| 22 |
11194271
|
WASHER
|
|
4
|
|
|
17092174 |
WASHER |
|
4 |
|
| 23 |
11198671
|
SPRING WASHER
|
|
4
|
|
|
17091174 |
SPRING WASHER |
|
4 |
|
| 24 |
8109691
|
STUD
|
|
1
|
|
| 25 |
8107674
|
WATER PIPE
|
|
1
|
|
