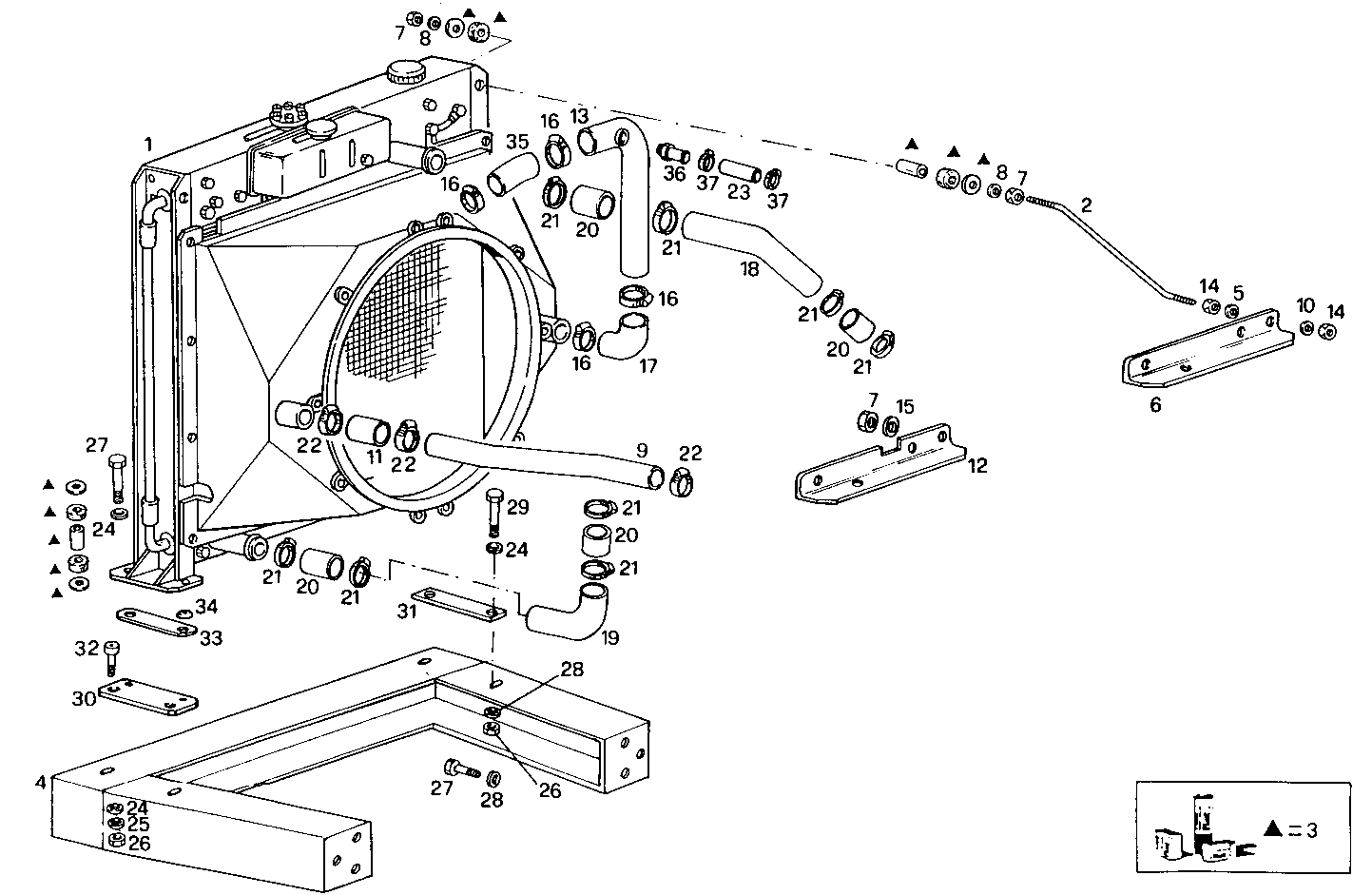

| 1 |
8009970
|
WATER RADIATOR
|
|
1
|
|
| 2 |
8110577
|
TIE ROD
|
|
2
|
|
| 3 |
8090977
|
KIT-RADIATOR
|
|
1
|
|
| 4 |
8027161
|
SUPPORT
|
|
1
|
|
| 5 |
17095504
|
WASHER
|
|
4
|
|
| 6 |
8010579
|
RETAINER
|
|
1
|
|
| 7 |
17038421
|
HEXAGON NUT
|
|
8
|
|
|
17038425 |
HEXAGON NUT |
|
8 |
|
| 8 |
17091374
|
SPRING WASHER
|
|
4
|
|
| 9 |
8027163
|
WATER PIPE
|
|
1
|
|
| 10 |
17091674
|
WASHER
|
|
4
|
|
| 11 |
17743687
|
RUBBER SLEEVE
|
|
2
|
|
|
17743887 |
RUBBER SLEEVE |
|
2 |
|
| 12 |
8027665
|
RETAINER
|
|
1
|
|
| 13 |
8027164
|
WATER PIPE
|
|
1
|
|
| 14 |
17038221
|
HEXAGON NUT
|
|
4
|
|
|
17038225 |
HEXAGON NUT |
|
4 |
|
| 15 |
17095304
|
WASHER
|
|
2
|
|
| 16 |
17764891
|
CLIP
|
|
4
|
|
|
17764892 |
CLIP |
|
4 |
|
| 17 |
8110557
|
CONNECTOR SLEEVE
|
|
1
|
|
| 18 |
8010581
|
WATER PIPE
|
|
1
|
|
| 19 |
8010580
|
WATER PIPE
|
|
1
|
|
| 20 |
17745887
|
RUBBER SLEEVE
|
|
4
|
|
| 21 |
4830091
|
CLIP
|
|
8
|
|
|
8019910 |
CLIP |
|
8 |
|
| 22 |
98490783
|
CLIP
|
|
3
|
|
|
17764991 |
CLIP |
|
3 |
|
| 23 |
19086687
|
HOSE
|
|
1
|
|
| 24 |
17095704
|
WASHER
|
|
8
|
|
| 25 |
17092374
|
SPRING WASHER
|
|
2
|
|
| 26 |
17038921
|
NUT
|
|
4
|
|
| 27 |
16614524
|
HEXAGON BOLT
|
|
8
|
|
| 28 |
17092174
|
SPRING WASHER
|
|
8
|
|
| 29 |
16615224
|
HEXAGON BOLT
|
|
2
|
|
| 30 |
8017948
|
SPACING BAR
|
|
1
|
|
| 31 |
8017949
|
SPACING BAR
|
|
1
|
|
| 32 |
16697924
|
SCREW
|
|
2
|
|
| 33 |
8010041
|
SPACING BAR
|
|
2
|
|
| 34 |
8019415
|
SPACING BAR
|
|
4
|
|
| 35 |
4927830
|
RUBBER SLEEVE
|
|
1
|
|
| 36 |
4618675
|
THREADED UNION
|
|
1
|
|
| 37 |
18088191
|
CLIP
|
|
2
|
|
