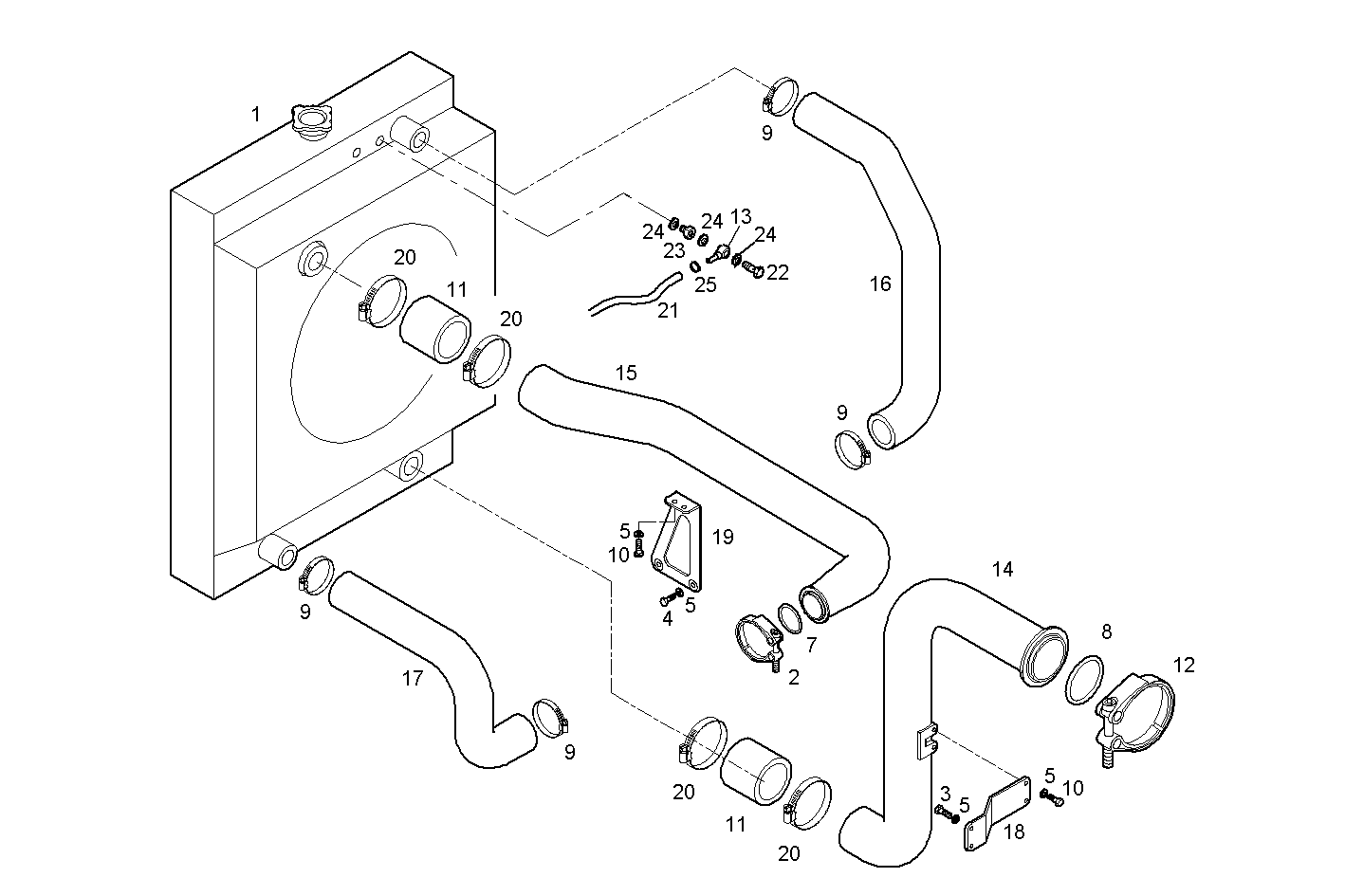

RADIATOR 2 CIRCUITS AIR/WATER

Assembly ID: A22480501

RADIATOR 2 CIRCUITS AIR/WATER

Parts

# Part number Description Note Quantity
1 8036502 WATER RADIATOR 1
2 4800661 CLIP 1
3 16605734 HEXAGON BOLT 2
4 16607724 HEXAGON BOLT 1
5 17089474 SPRING WASHER 7
6 17090174 SPRING WASHER 1
7 17284681 O-RING 1
8 17291281 O-RING 1
9 17765091 CLIP 4
10 16605534 HEXAGON BOLT 6
11 42088621 RUBBER SLEEVE 2
12 99435103 CLIP 1
13 98404884 SWIVEL COUPLING 1
14 8036454 AIR PIPE/DUCT 1
15 8036460 AIR PIPE/DUCT 1
16 8036520 RUBBER SLEEVE 1
17 8036521 RUBBER SLEEVE 1
18 8037139 FASTENING BRACKET 1
19 8037168 FASTENING BRACKET 1
20 17769491 CLIP 4
21 16899187 HOSE 1
22 4864082 BANJO BOLT 1
23 4802434 THREADED UNION 1
24 4858607 WASHER 3
25 18088293 CLIP 2
