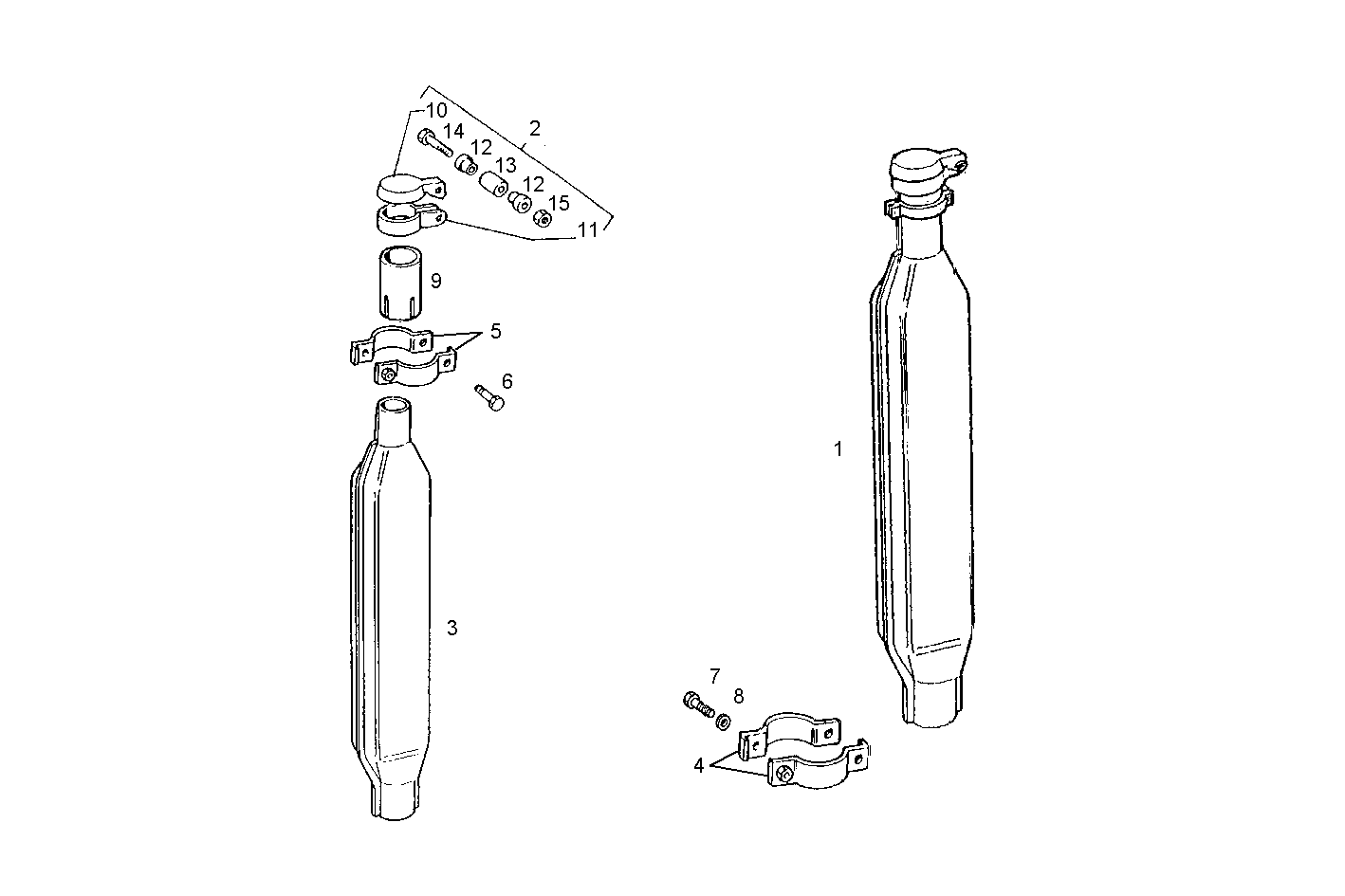

SILENCER
Assembly ID: A23020505
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8014907 | SILENCER | 1 | ||
| 2 | 5140885 | COVER | 1 | ||
| 3 | 5146629 | SILENCER | 1 | ||
| 4 | 5116800 | CLIP | 2 | ||
| 5 | 5116798 | CLIP | 2 | ||
| 6 | 16605534 | HEXAGON BOLT | 2 | ||
| 7 | 16605624 | HEXAGON BOLT | 2 | ||
| 8 | 17089474 | SPRING WASHER | 2 | ||
| 9 | 8015188 | EXHAUST PIPE | 1 | ||
| 10 | 5134341 | COVER | 1 | ||
| 11 | 5134340 | CLIP | 1 | ||
| 12 | 5134344 | BUSH | 2 | ||
| 13 | 5134343 | SPACING BAR | 1 | ||
| 14 | 16602424 | SCREW | 1 | ||
| 15 | 17156821 | NUT | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| N45MSTD20.50A800 | NEF 4 mechanic. - TIER 2 | view |
| N45MSTD22.50A800 | NEF 4 mechanic. - TIER 2 | view |
| F32MNSX01.00A800 | F32 mechanic. - TIER 3 | view |
| N45MSTD20.50A801 | NEF 4 mechanic. - TIER 2 | view |
| N45MSTD22.50A801 | NEF 4 mechanic. - TIER 2 | view |
| N45MNTX20.00 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTX20.50 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTX20.50A800 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTX20.50A810 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTX21.50 | NEF 4 mechanic. - TIER 3 | view |
| N45MNTX21.00 | NEF 4 mechanic. - TIER 3 | view |
| F32MNSX01.00 | F32 mechanic. - TIER 3 | view |
| F32MNSX00.00 | F32 mechanic. - TIER 3 | view |
| N45MSTA20.50A800 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTA20.50A810 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTX21.50A800 | NEF 4 mechanic. - TIER 3 | view |
| F32MNTX88.00 | F32 mechanic. - TIER 3 | view |
| F32MNSX00.00A800 | F32 mechanic. - TIER 3 | view |
| GEF3240MA.R980 | GEF32 mechanic. - 2008/88/CE | view |
| F32MNTA85.00 | F32 mechanic. - TIER 2 | view |
| GEF3250MA.R980 | GEF32 mechanic. - 2008/88/CE | view |
| F32MNTX20.00 | F32 mechanic. - TIER 3 | view |
| F32MNAA85.00 | F32 mechanic. - 2002/88/CE | view |
| F32MNTX20.00A800 | F32 mechanic. - TIER 3 | view |
| GEF3230MA.R980 | GEF32 mechanic. - 2008/88/CE | view |
