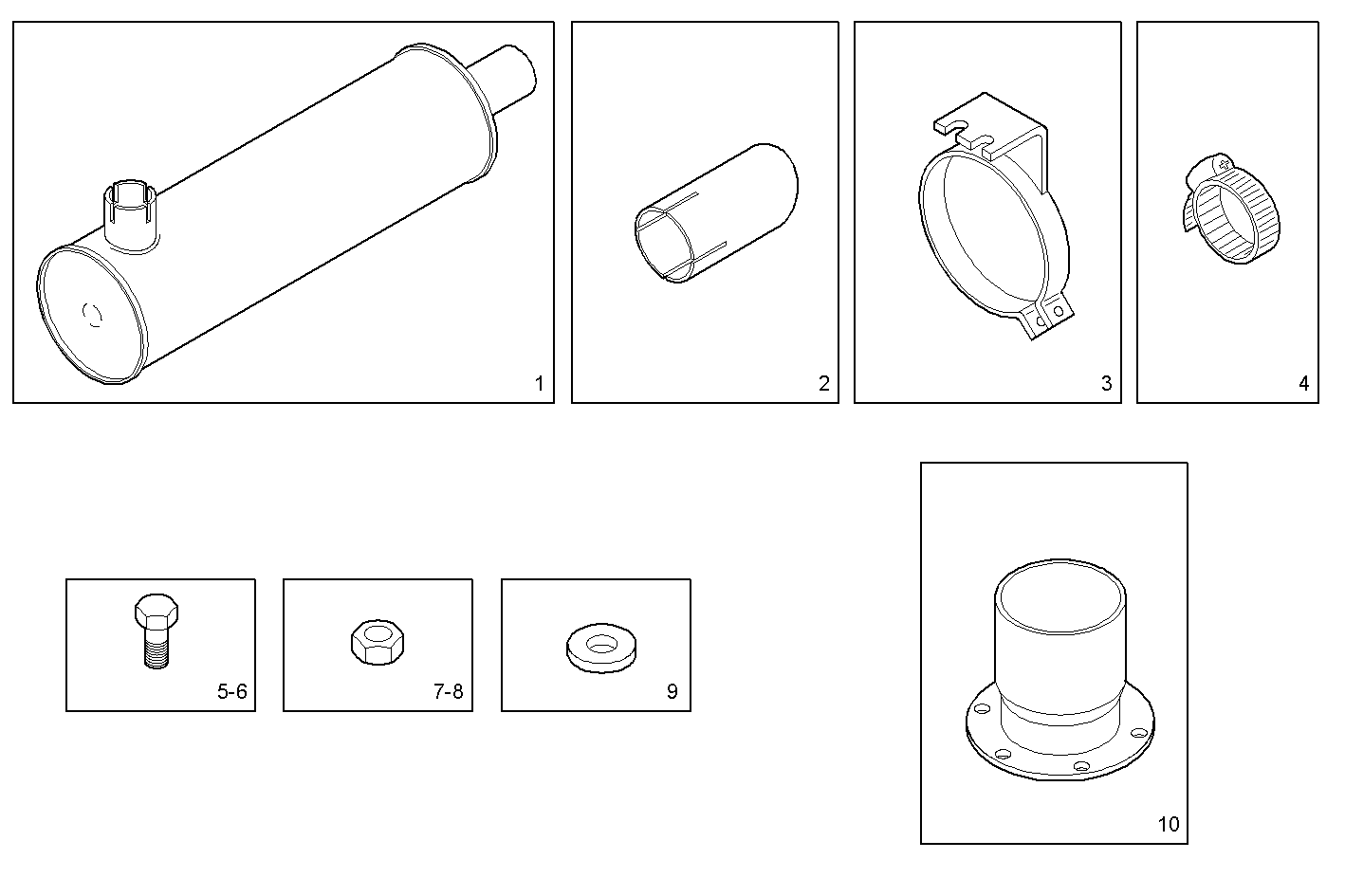

SILENCER
Assembly ID: A23020508
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 500306919 | SILENCER | 1 | ||
| 2 | 8039809 | EXHAUST PIPE | 1 | ||
| 3 | 500328457 | CLIP | 2 | ||
| 4 | 42090154 | PIPE CLIP | 2 | ||
| 5 | 11108821 | HEXAGON BOLT | 2 | ||
| 6 | 16605734 | HEXAGON BOLT | 2 | ||
| 7 | 17037921 | HEXAGON NUT | 2 | ||
| 8 | 16750325 | HEXAGON NUT | 2 | ||
| 9 | 17089474 | SPRING WASHER | 2 | ||
| 10 | 8039911 | FLANGE | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C87ENTX20.00 | CURSOR 9 - TIER 3 | view |
| C87ENTX20.00A802 | CURSOR 9 - TIER 3 | view |
| C78ENTF40.00 | CURSOR 8 - TIER 2 | view |
| C78ENTF41.00 | CURSOR 8 - TIER 2 | view |
