| 1 |
4927113
|

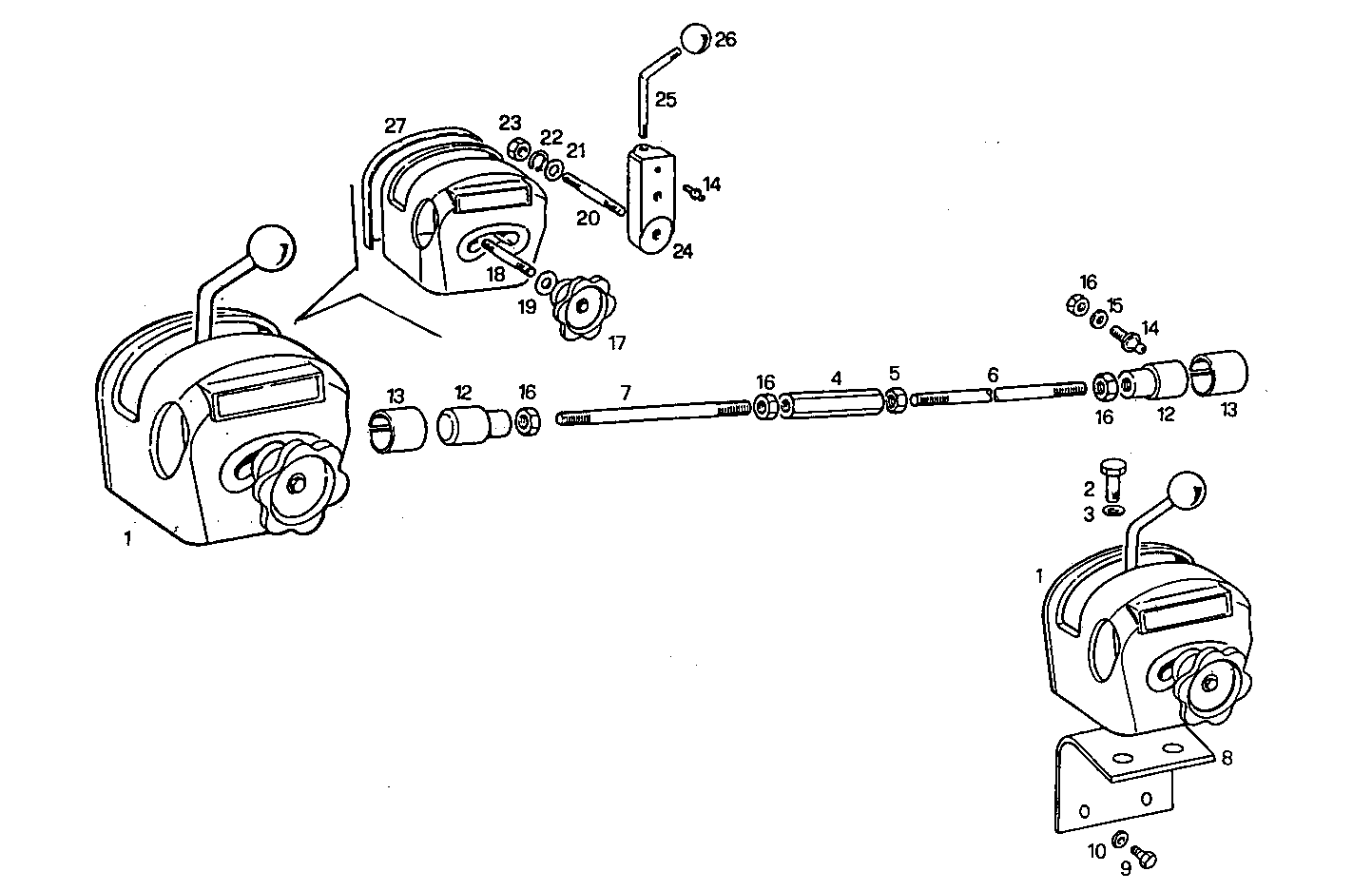

HAND ACCELERATOR
|
|
1
|
|
| 2 |
16607624
|
SCREW
|
|
2
|
|
| 3 |
17090174
|
SPRING WASHER
|
|
2
|
|
| 4 |
17720114
|
TIE ROD
|
|
1
|
|
| 5 |
16981731
|
NUT
|
|
1
|
|
| 6 |
4928016
|
TIE ROD
|
|
1
|
|
| 7 |
8823236
|
TIE ROD
|
|
1
|
|
| 8 |
8019671
|
RETAINER
|
|
1
|
|
| 9 |
16615421
|
SCREW
|
|
2
|
|
| 10 |
17092174
|
SPRING WASHER
|
|
2
|
|
| 12 |
17721111
|
BALL HEAD
|
|
2
|
|
| 13 |
17722174
|
CLIP
|
|
2
|
|
|
17722176 |
CLIP |
|
2 |
|
| 14 |
15152011
|
PIN
|
|
2
|
|
| 15 |
17088974
|
SPRING WASHER
|
|
1
|
|
| 16 |
17037821
|
HEXAGON NUT
|
|
4
|
|
| 17 |
4927042
|
HANDWHEEL
|
|
1
|
|
| 18 |
11795121
|
STUD
|
|
1
|
|
| 19 |
12646901
|
WASHER
|
|
1
|
|
|
16887624 |
WASHER |
|
1 |
|
| 20 |
13530221
|
STUD
|
|
1
|
|
| 21 |
10730701
|
WASHER
|
|
1
|
|
| 22 |
10413870
|
SPRING WASHER
|
|
1
|
|
| 23 |
14048821
|
HEXAGON NUT
|
|
1
|
|
|
17309031 |
HEXAGON NUT |
|
1 |
|
| 24 |
4927004
|
LEVER
|
|
1
|
|
| 25 |
4927877
|
STUD
|
|
1
|
|
| 26 |
4927041
|
HANDLE BALL
|
|
1
|
|
| 27 |
4927115
|
COVER
|
|
1
|
|
