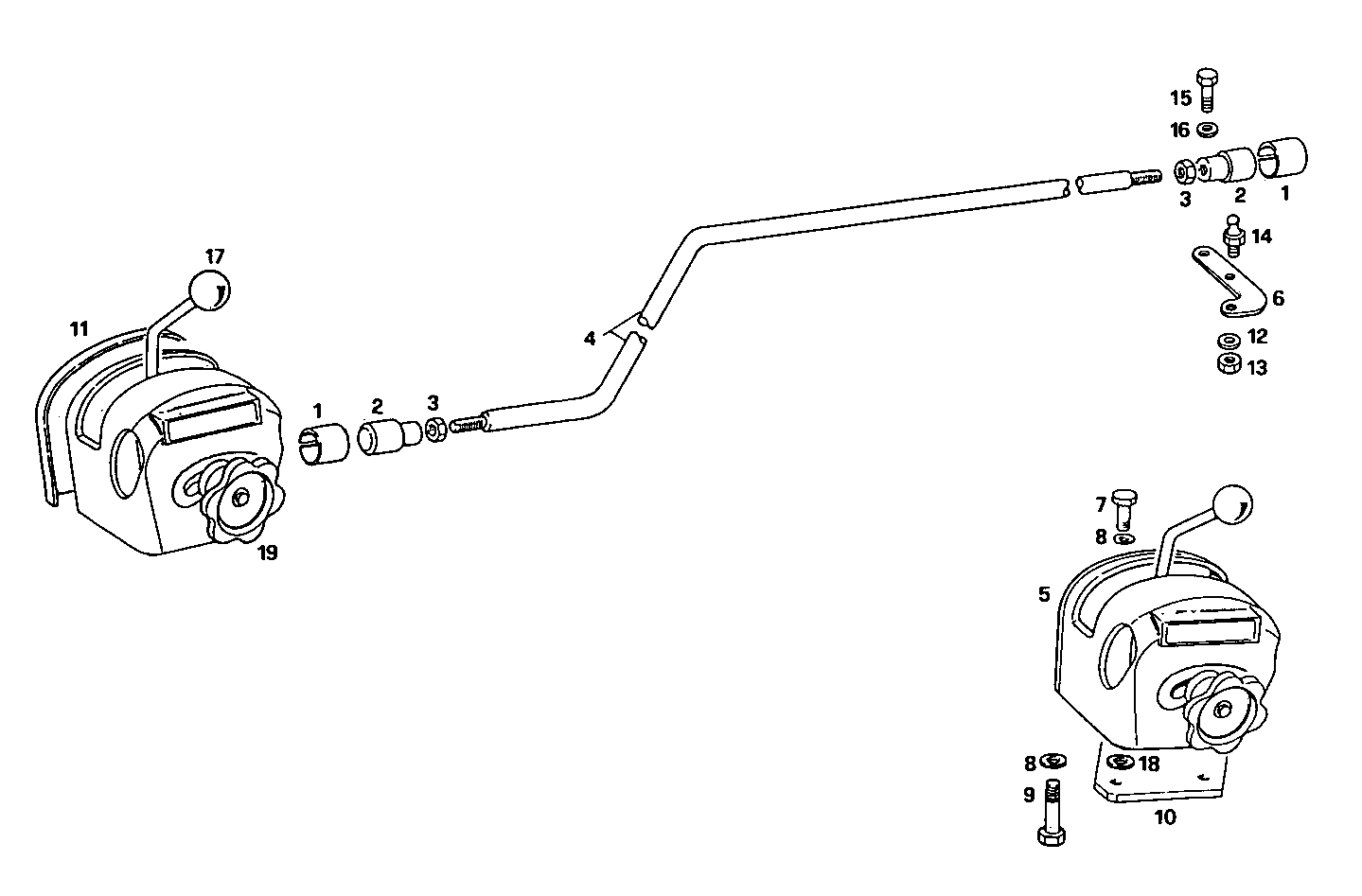

| 1 |
17722174
|
CLIP
|
|
2
|
|
|
17722176 |
CLIP |
|
2 |
|
| 2 |
17721111
|
BALL HEAD
|
|
2
|
|
| 3 |
17037821
|
HEXAGON NUT
|
|
2
|
|
| 4 |
8027201
|
TIE ROD
|
|
1
|
|
| 5 |
4927113
|
HAND ACCELERATOR
|
|
1
|
|
| 6 |
8026302
|
ACCELERATOR PEDAL
|
|
1
|
|
| 7 |
15004021
|
HEXAGON BOLT
|
|
2
|
|
| 8 |
17090174
|
SPRING WASHER
|
|
4
|
|
| 9 |
15004021
|
HEXAGON BOLT
|
|
2
|
|
| 10 |
4249494
|
RETAINER
|
|
1
|
|
| 11 |
4927115
|
COVER
|
|
1
|
|
| 12 |
17088474
|
WASHER
|
|
1
|
|
| 13 |
17037821
|
HEXAGON NUT
|
|
1
|
|
| 14 |
15152011
|
PIN
|
|
1
|
|
| 15 |
16603524
|
SCREW
|
|
2
|
|
| 16 |
17088474
|
WASHER
|
|
2
|
|
| 17 |
4927041
|
HANDLE BALL
|
|
1
|
|
| 18 |
8101556
|
SPACING BAR
|
|
2
|
|
| 19 |
4927042
|
HANDWHEEL
|
|
1
|
|
