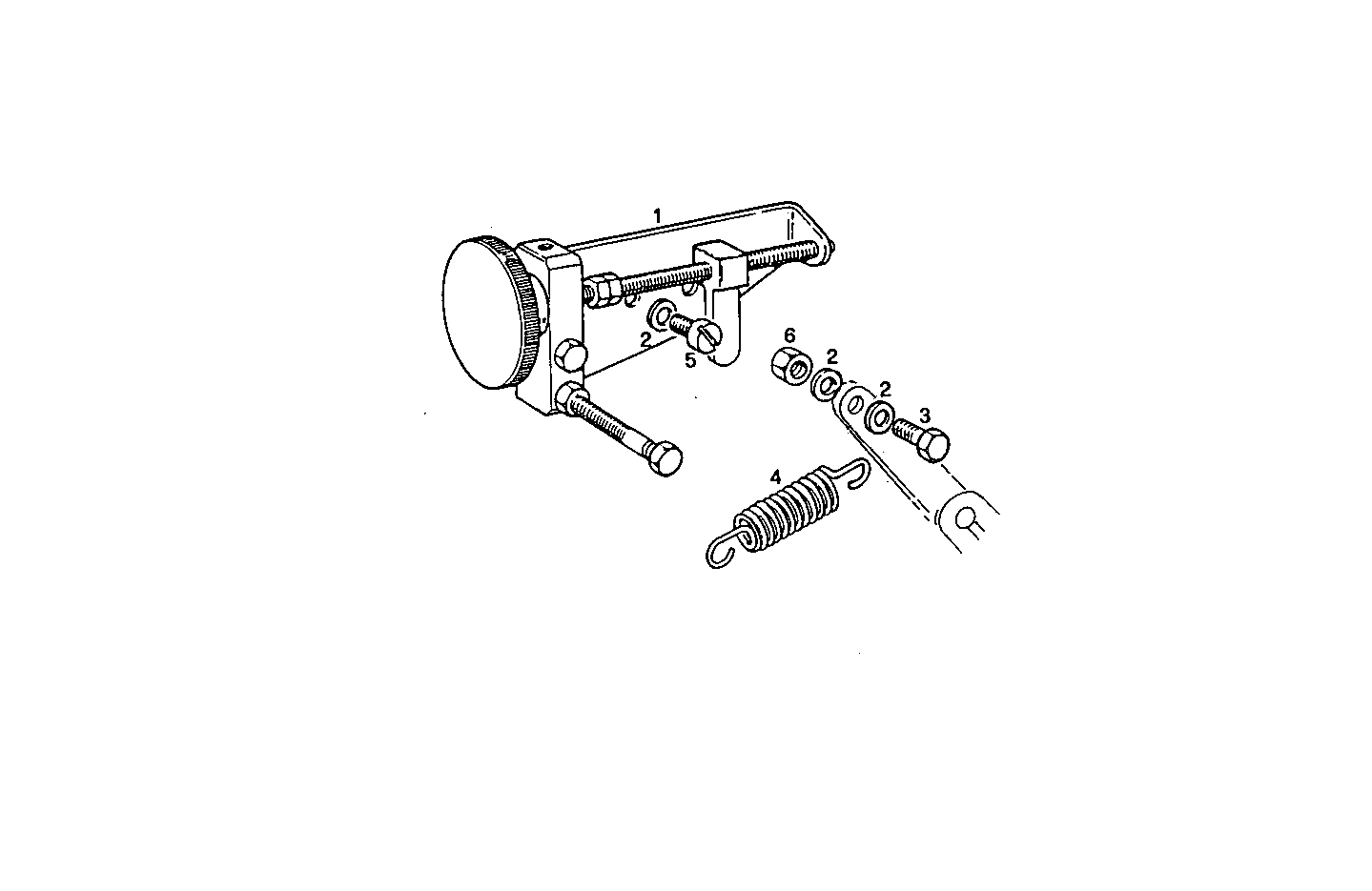

PRECISION ADJUSTMENT ACCELERATOR
Assembly ID: A24060008
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8104878 | HAND ACCELERATOR | 1 | ||
| 2 | 17088474 | WASHER | 4 | ||
| 3 | 10902321 | HEXAGON BOLT | 1 | ||
| 4 | 8104855 | SPRING | 1 | ||
| 5 | 17133114 | SCREW | 2 | ||
| 6 | 17037821 | HEXAGON NUT | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| GE8361SRi25.06A905 | GE8361SRi25 | view |
| 8361SRi10.01 | 8361SRi10 | view |
| 8361SRi25.06 | 8361SRi25 | view |
| 8281Si10.00 | 8281Si10 | view |
| 8281Si15.00 | 8281Si15 | view |
| 8361SRE10.00 | 8361SRE10 | view |
| 8361Si10.00 | 8361Si10 | view |
| 8361SRM32.40 | 8361SRM32 | view |
| 8361SRM40.40 | 8361SRM40 | view |
| 8281SRM44.10 | 8281SRM44 | view |
| 8281SRM70.40 | 8281SRM70 | view |
| 8281Si15.00A500 | 8281Si15 | view |
