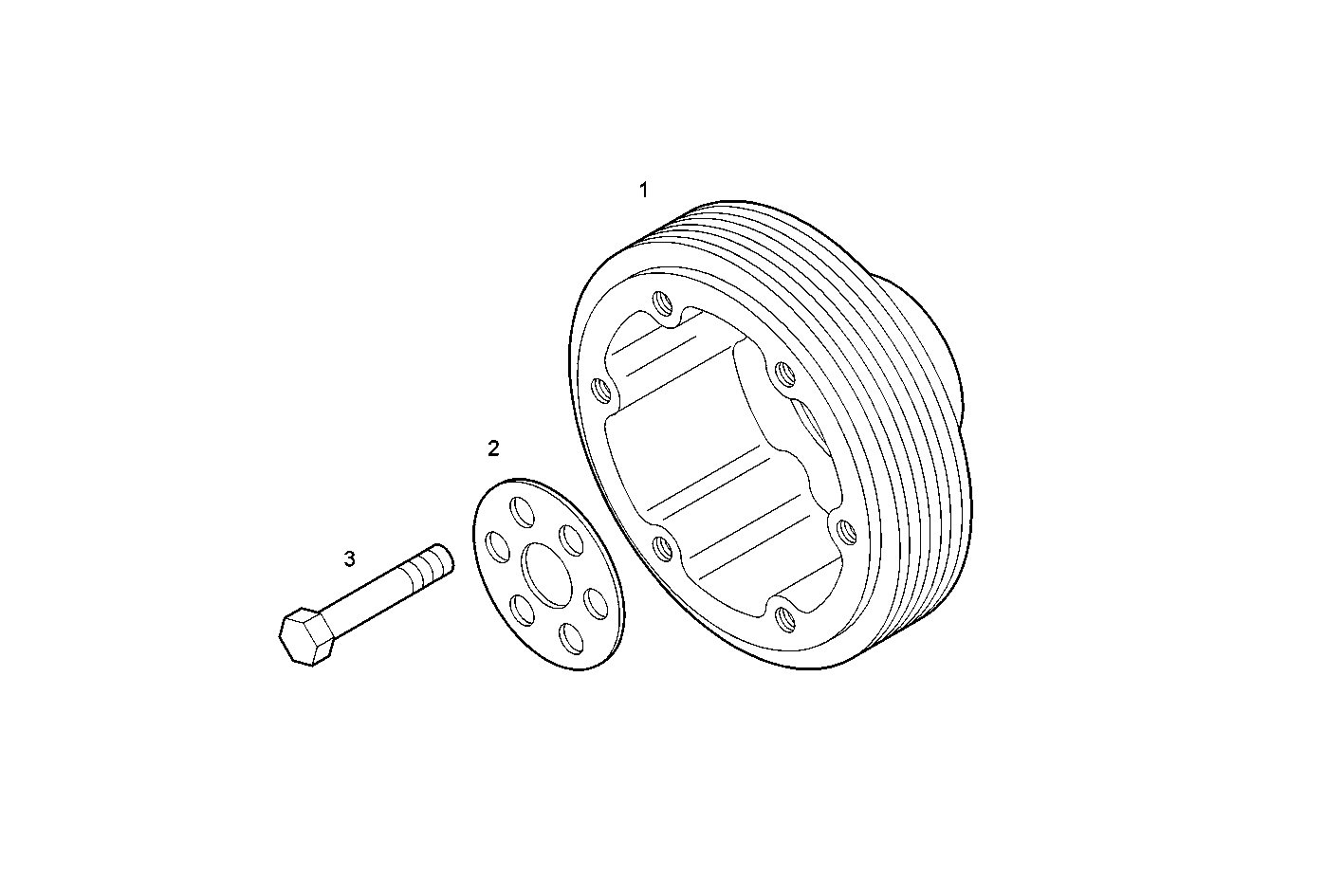

GROOVES ADDITIONAL PULLEY
Assembly ID: A26050502
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8031353 | PULLEY | 1 | ||
| 2 | 8031794 | SPACING BAR | 1 | ||
| 3 | 16681234 | SCREW | 6 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C78ENTM50.10 | CURSOR 8 | view |
| C78ENTM30.10-C 12/03 | CURSOR 8 | view |
| C78ENTM50.11 | CURSOR 8 | view |
| C78ENTM30.10-D 01/04 | CURSOR 8 | view |
| C78ENTM30.10A002 | CURSOR 8 | view |
| C78ENTM55.10 | CURSOR 8 | view |
| C78ENSM20.10 | CURSOR 8 | view |
| C78ENSM20.30 | CURSOR 8 | view |
