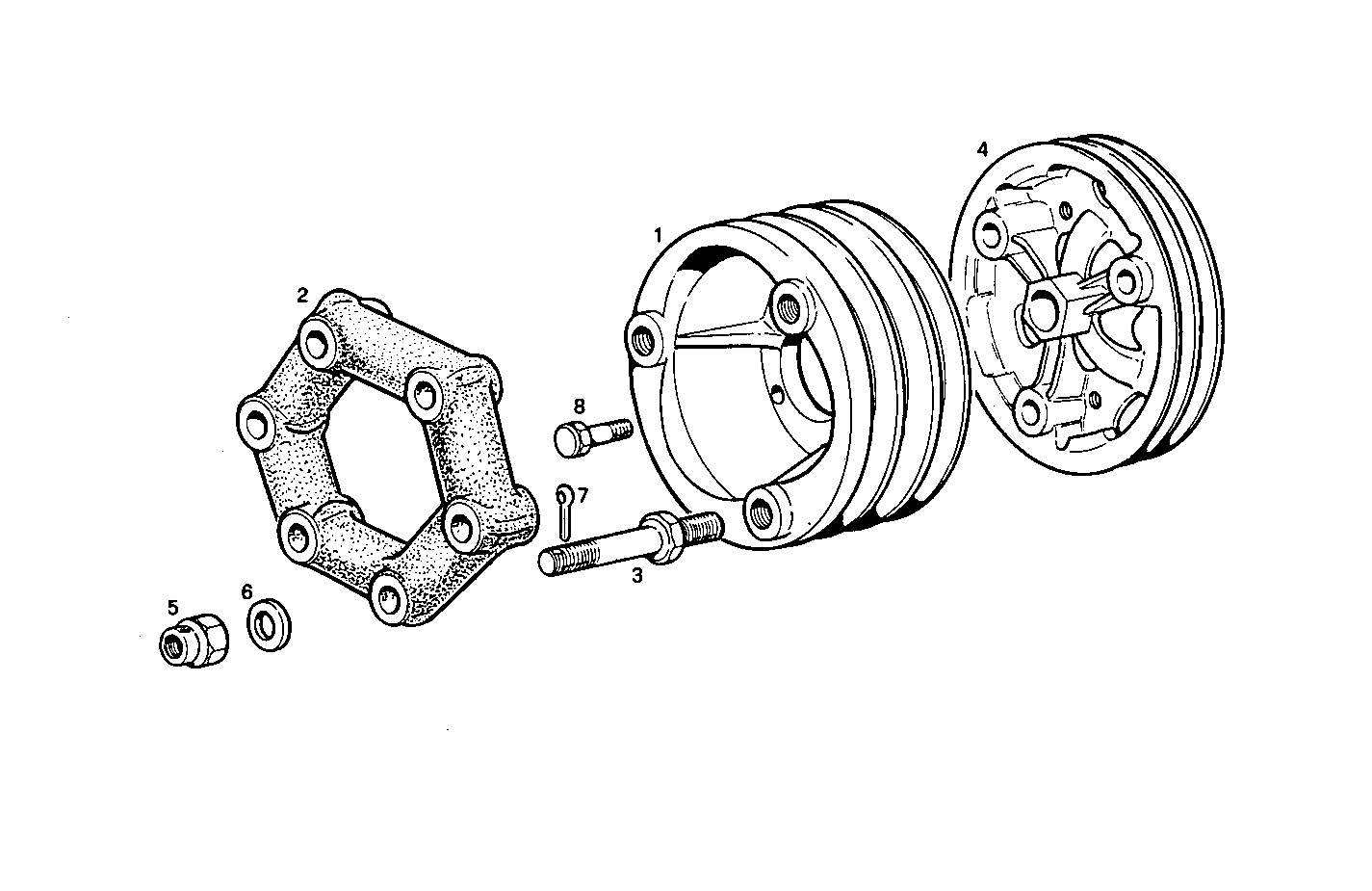

PULLEY ON ENGINE AXIS
Assembly ID: A26070004
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4932516 | PULLEY | 1 | ||
| 2 | 4928505 | FLEXPLATE | 1 | ||
| 3 | 4932513 | STUD | 3 | ||
| 4 | 8100044 | PULLEY | 1 | ||
| 5 | 17068221 | NUT | 3 | ||
| 6 | 10520401 | WASHER | 3 | ||
| 7 | 10733801 | SPLIT PIN | 3 | ||
| 8 | 14275521 | SCREW | 6 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8210M22.10 | 8210M22 | view |
| 8210M22.30 | 8210M22 | view |
