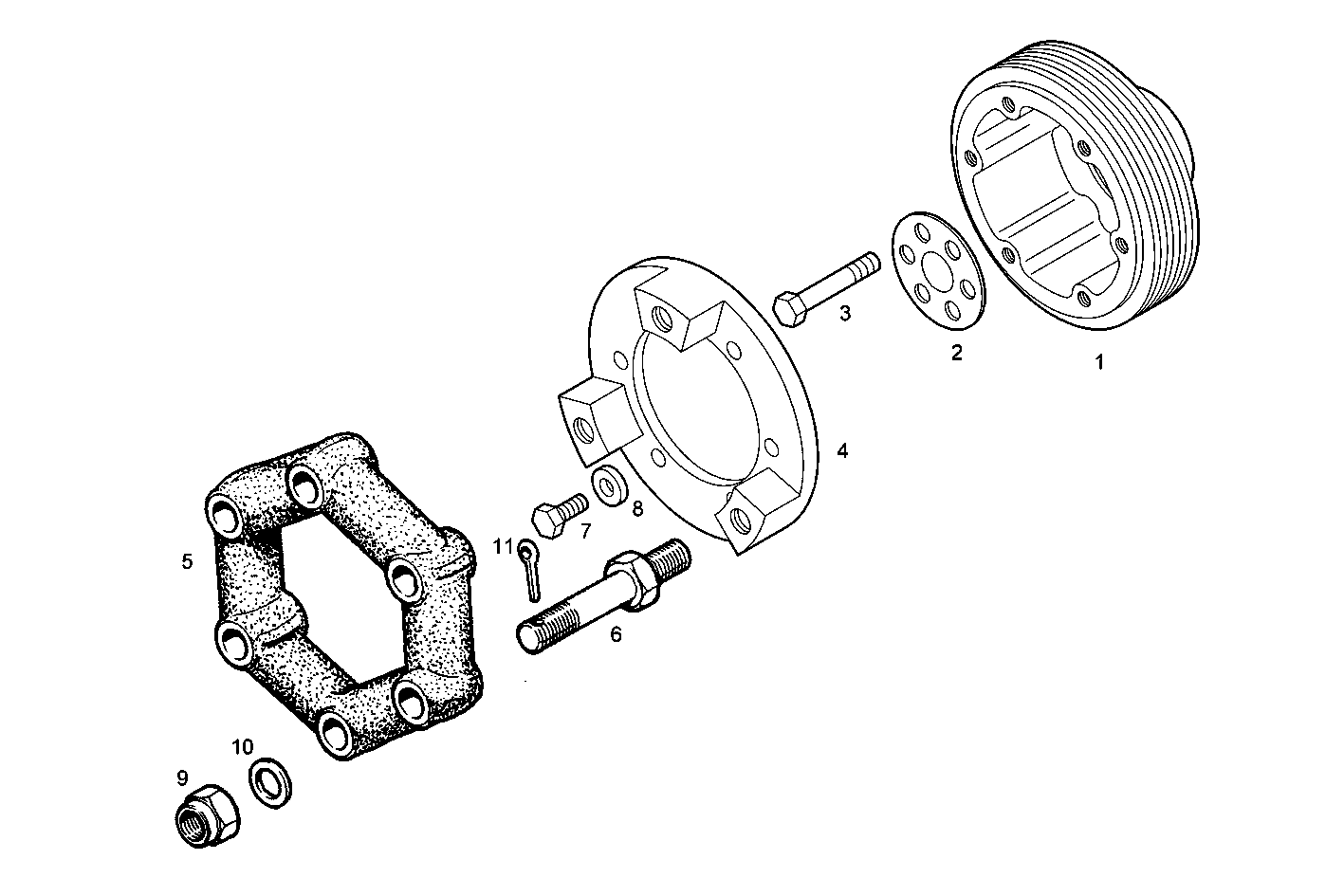

GROOVES ADDITIONAL PULLEY
Assembly ID: A26070501
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8031353 | PULLEY | 1 | ||
| 2 | 8031794 | SPACING BAR | 1 | ||
| 3 | 16681234 | SCREW | 6 | ||
| 4 | 8031354 | FLANGE | 1 | ||
| 5 | 4928505 | FLEXPLATE | 1 | ||
| 6 | 4932513 | STUD | 3 | ||
| 7 | 16629834 | SCREW | 6 | ||
| 8 | 17091074 | WASHER | 6 | ||
| 9 | 17068221 | NUT | 3 | ||
| 10 | 17096004 | WASHER | 3 | ||
| 11 | 16858701 | SPLIT PIN | 3 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C78ENTM50.10 | CURSOR 8 | view |
| C78ENTM30.10-C 12/03 | CURSOR 8 | view |
| C78ENTM50.11 | CURSOR 8 | view |
| C78ENTM30.10-D 01/04 | CURSOR 8 | view |
| C78ENTM55.10 | CURSOR 8 | view |
| C78ENSM20.10 | CURSOR 8 | view |
| C78ENSM20.30 | CURSOR 8 | view |
