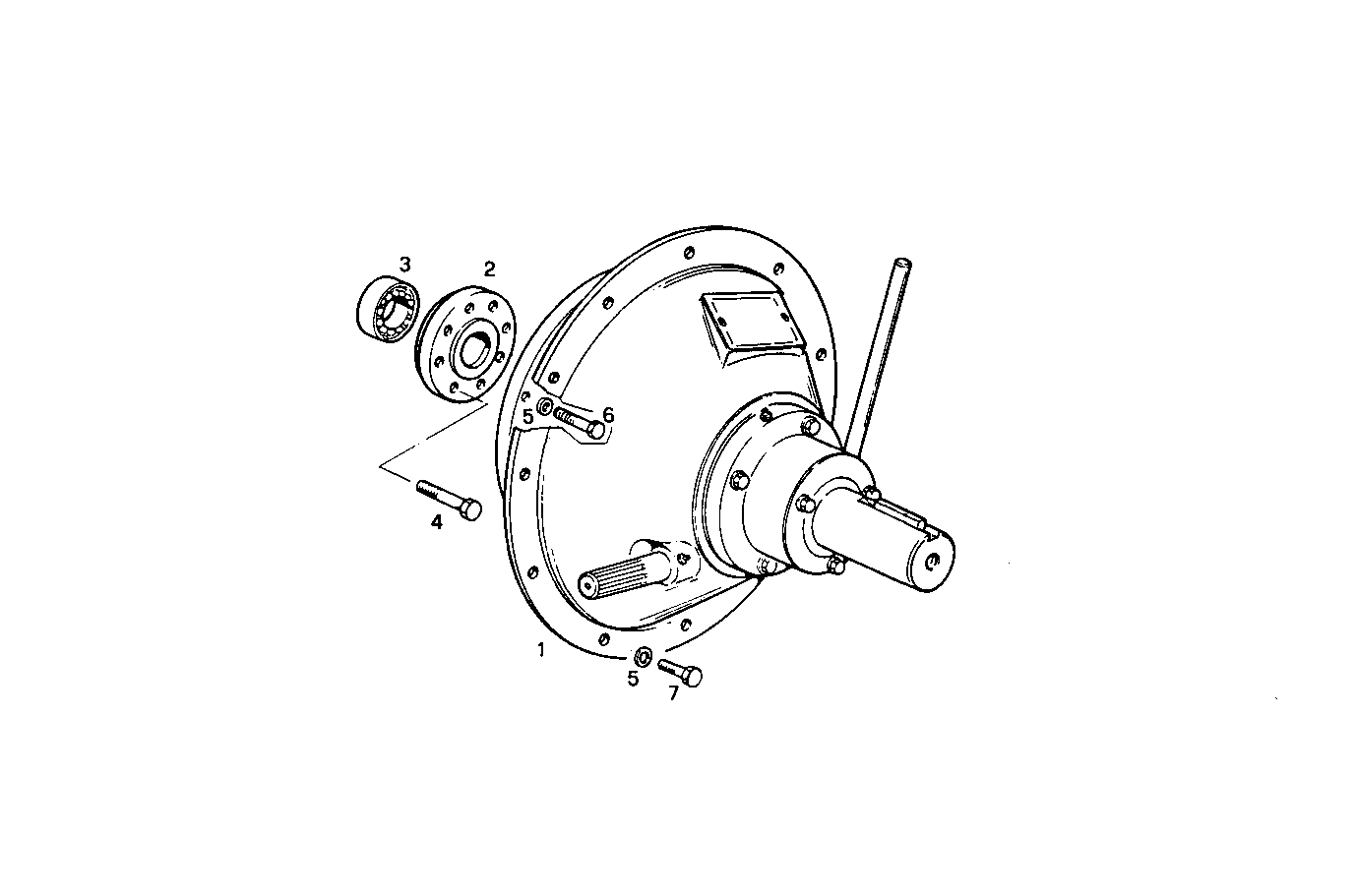

BIDISC INDUSTRIAL CLUTCH
Assembly ID: A27220005
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4935798 | CLUTCH | 1 | ||
| 2 | 4935070 | HUB | 1 | ||
| 3 | 28044150 | DRIVE BEARING | 1 | ||
| 4 | 4935071 | SCREW | 7 | ||
| 5 | 11198371 | SPRING WASHER | 20 | ||
| 6 | 15888821 | HEXAGON BOLT | 8 | ||
| 7 | 11306921 | SCREW | 12 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8361SRi11.05 | 8361SRi11 | view |
| 8361Si10.00 | 8361Si10 | view |
| PU8361SI10.00A100 | PU8361SI10 | view |
| PU8361SRE10.00A100 | PU8361SRE10 | view |
