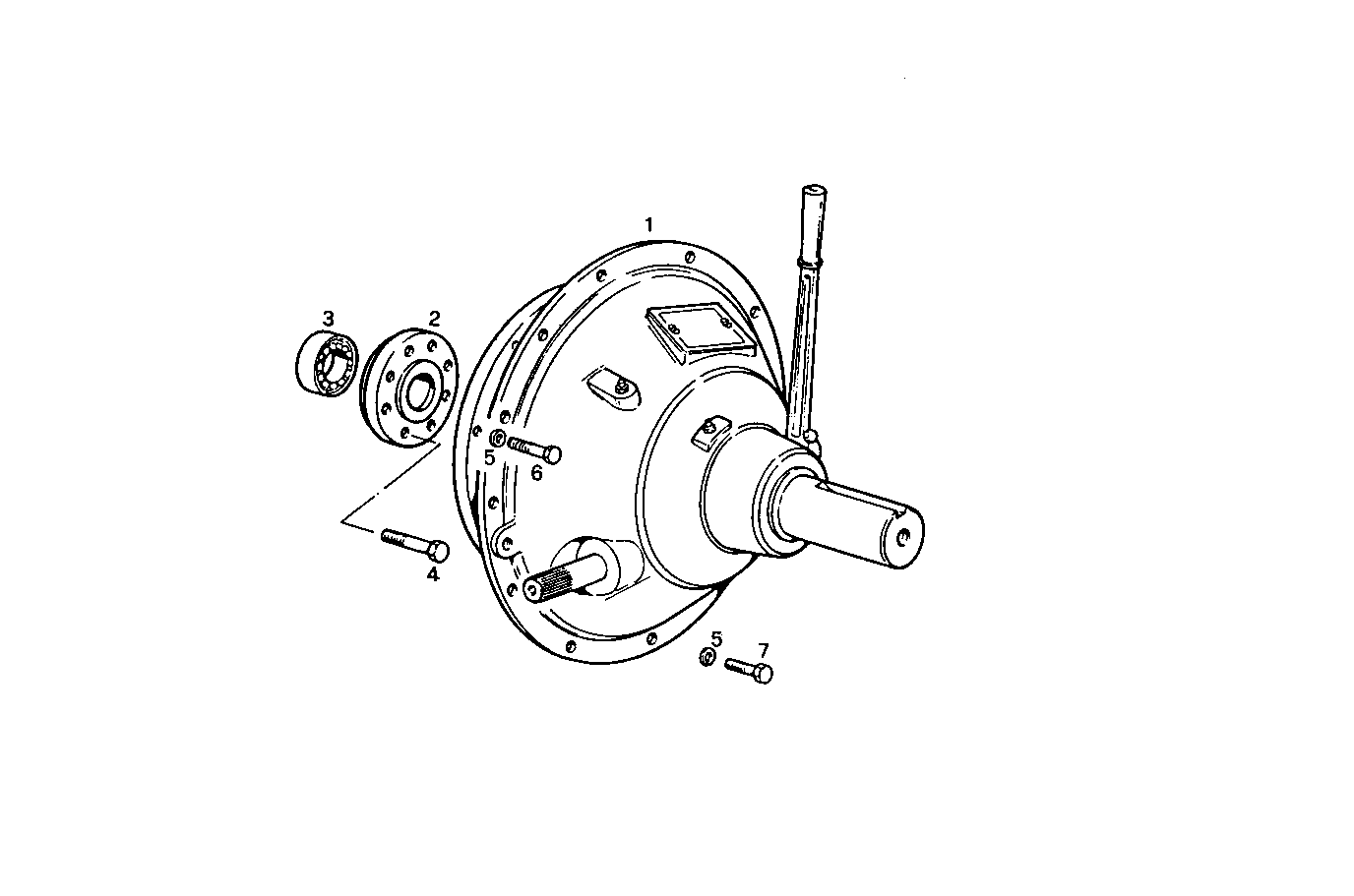

TRIDISC INDUSTRIAL CLUTCH
Assembly ID: A27230001
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8109225 | CLUTCH | 8 | ||
| 2 | 4935070 | HUB | 1 | ||
| 3 | 28044150 | DRIVE BEARING | 1 | ||
| 4 | 4935071 | SCREW | 1 | ||
| 5 | 11198371 | SPRING WASHER | 8 | ||
| 6 | 15971721 | SCREW | 16 | ||
| 7 | 15888721 | HEXAGON BOLT | 16 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8361SRi11.05 | 8361SRi11 | view |
| 8361Si10.00 | 8361Si10 | view |
