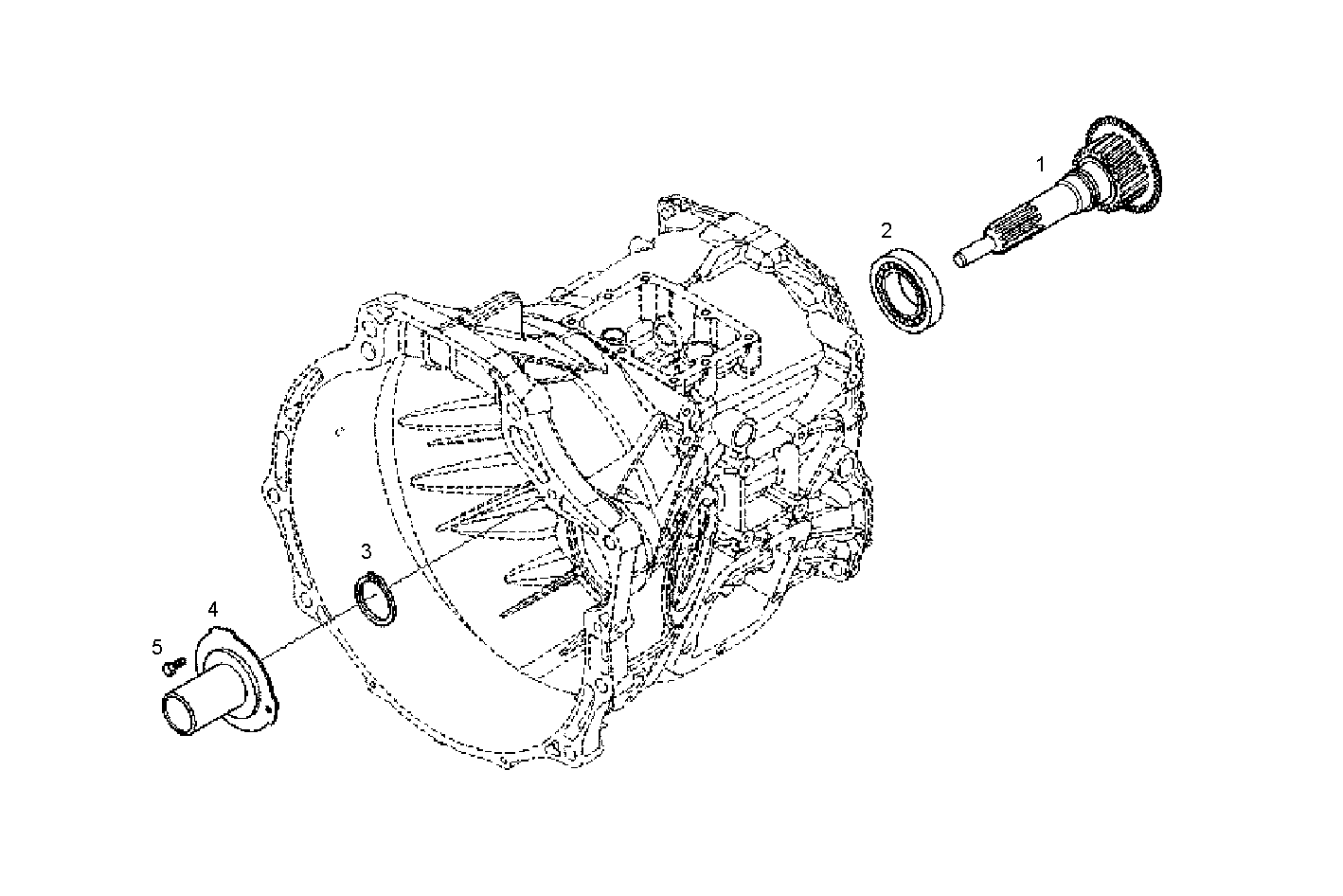

TRANSMISSION
Assembly ID: A27600501-09
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8869591 | INPUT SHAFT | 1 | ||
| 2 | 8869667 | BALL BEARING | 1 | ||
| 3 | 8870267 | CIRCLIP | 1 | ||
| 4 | 8869601 | TUBE GUIDE | 1 | ||
| 5 | 42534949 | CYLIND-HEAD SCREW | 3 |
Applies to engines
| Engine | Family | |
|---|---|---|
| S23ENSC20.10A004 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A006 - C | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A006 - D | SOFIM HPI 2.3L - EURO 3 | view |
