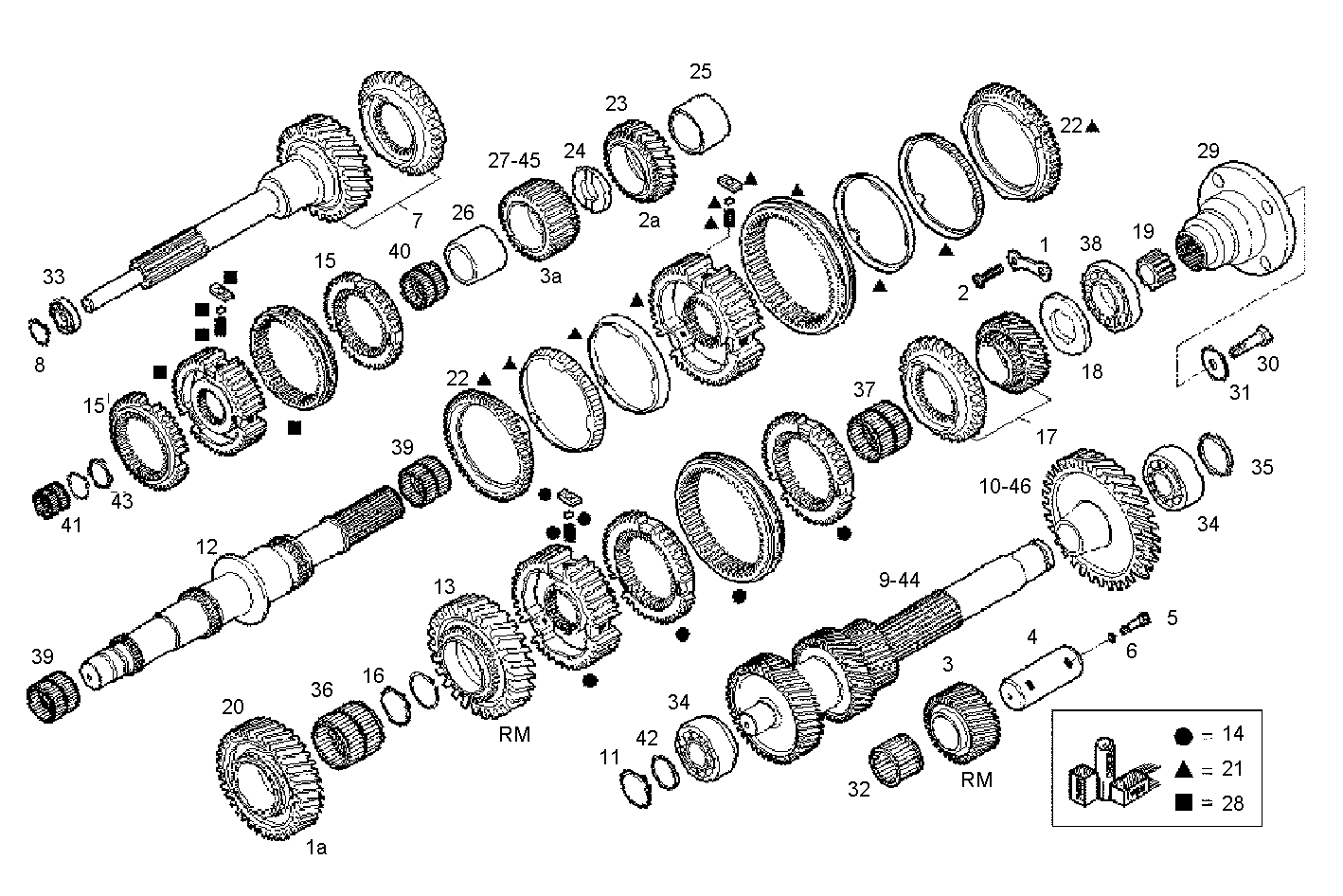

| 1 |
8868889
|
LOCKING PLATE
|
|
4
|
|
| 2 |
8871238
|
C'SUNK SCREW
|
|
8
|
|
|
8873208 |
C'SUNK SCREW |
|
8 |
|
| 3 |
8868862
|
REVERSE GEAR
|
|
1
|
|
| 4 |
8868622
|
RETURN SHAFT
|
|
1
|
|
| 5 |
16691124
|
SOCKET-HEAD SCREW
|
|
2
|
|
| 6 |
8868623
|
WASHER
|
|
2
|
|
| 7 |
8868868
|
INPUT SHAFT
|
|
1
|
|
| 8 |
16879376
|
CIRCLIP
|
|
1
|
|
| 9 |
8869028
|
COUNTERSHAFT
|
|
1
|
|
| 10 |
8868829
|
SPLITTER GEAR
|
|
1
|
|
| 11 |
16879276
|
SPRING LOCKWASHER
|
|
1
|
|
| 12 |
8869119
|
MAIN SHAFT
|
|
1
|
|
| 13 |
8870634
|
REVERSE GEAR
|
|
1
|
|
| 14 |
8870796
|
SYNCHRONIZ.COMPLET
|
|
1
|
|
| 15 |
8868628
|
SYNCHRONIZER
|
|
3
|
|
| 17 |
8868859
|
SPLITTER GEAR
|
|
1
|
|
| 18 |
8870385
|
STOP WASHER
|
|
1
|
|
| 19 |
8868568
|
SPLITTER GEAR
|
|
1
|
|
| 20 |
8869124
|
SPLITTER GEAR
|
|
1
|
|
| 21 |
8870486
|
KIT-SYNCHRONIZER
|
|
1
|
|
| 22 |
8869129
|
SYNCHRONIZER
|
|
2
|
|
| 23 |
8869132
|
SPLITTER GEAR
|
|
1
|
|
| 24 |
16879476
|
CIRCLIP
|
|
1
|
|
| 24 |
8869120
|
STOP WASHER
|
|
1
|
|
| 25 |
8869134
|
PLUG-IN SLEEVE
|
|
1
|
|
| 26 |
8868885
|
PLUG-IN SLEEVE
|
|
1
|
|
| 27 |
8868866
|
SPLITTER GEAR
|
|
1
|
|
| 28 |
8869032
|
KIT-SYNCHRONIZER
|
|
1
|
|
| 29 |
8870381
|
SHIFT SLEEVE
|
|
1
|
|
|
8872412 |
SHIFT SLEEVE |
|
1 |
|
| 30 |
16242734
|
HEXAGON BOLT
|
|
1
|
|
| 31 |
8868884
|
STOP WASHER
|
|
1
|
|
| 32 |
42470816
|
ROLLER CAGE
|
|
1
|
|
| 33 |
42470817
|
BALL BEARING
|
|
1
|
|
| 34 |
42470818
|
ROLLER BEARING
|
|
2
|
|
| 35 |
42470819
|
SET OF SHIMS
|
|
1
|
|
| 36 |
42470820
|
ROLLER CAGE
|
|
1
|
|
| 37 |
42470821
|
ROLLER CAGE
|
|
1
|
|
| 38 |
2992332
|
BALL BEARING
|
|
1
|
|
| 39 |
42470823
|
ROLLER CAGE
|
|
2
|
|
| 40 |
42430824
|
ROLLER CAGE
|
|
1
|
|
| 41 |
42430825
|
ROLLER CAGE
|
|
1
|
|
| 42 |
42430826
|
SET OF SHIMS
|
|
1
|
|
| 43 |
42430827
|
SET OF SHIMS
|
|
1
|
|
| 44 |
8870880
|
COUNTERSHAFT
|
|
1
|
|
| 45 |
8870882
|
SPLITTER GEAR
|
|
1
|
|
| 46 |
8869746
|
SPLITTER GEAR
|
|
1
|
|
