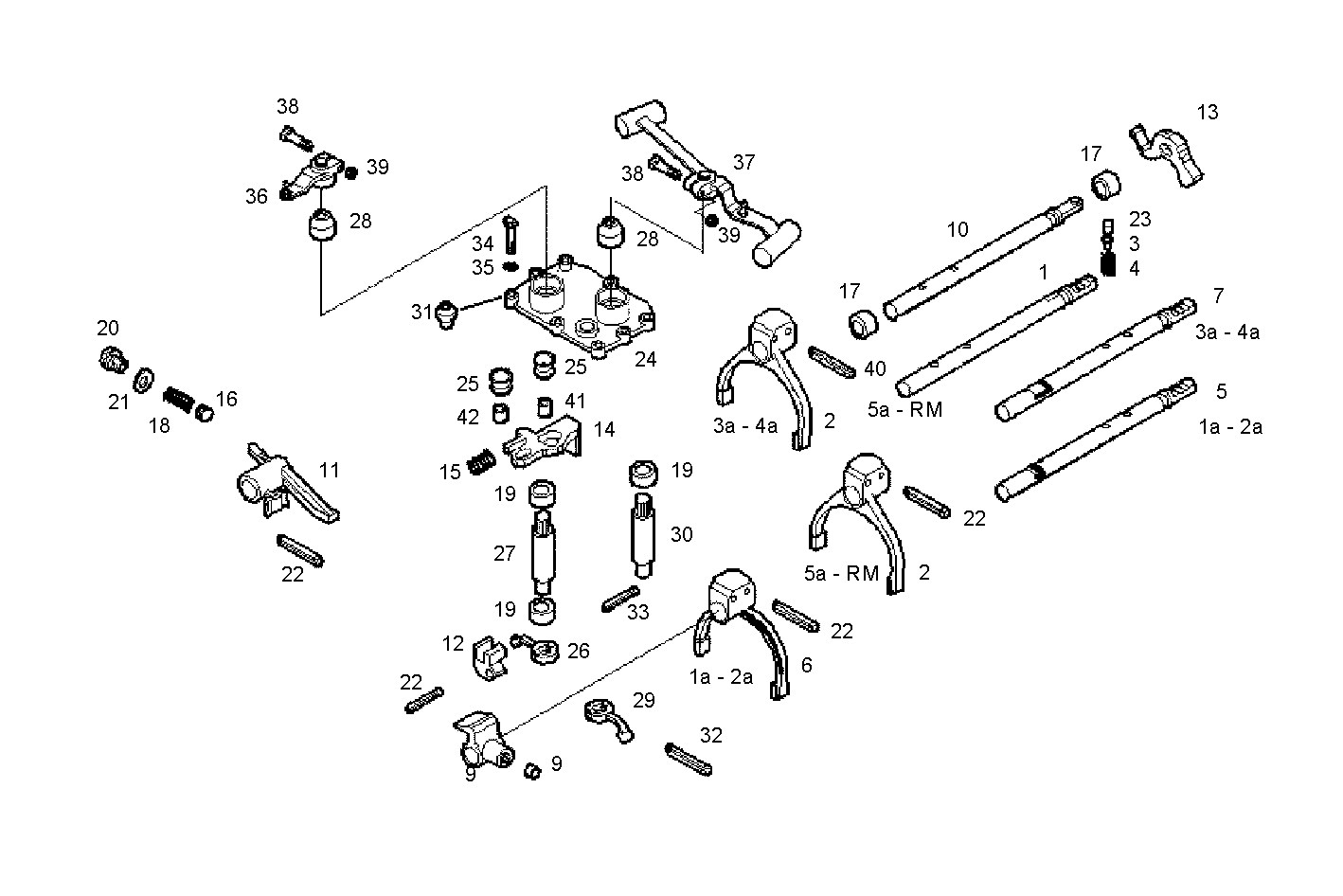

| 1 |
8869249
|
SHIFT FORK ROD
|
|
1
|
|
| 2 |
8868873
|
SHIFT FORK
|
|
2
|
|
| 3 |
8868646
|
PIN
|
|
3
|
|
| 4 |
8868647
|
SPRING
|
|
3
|
|
| 5 |
8869250
|
SHIFT FORK ROD
|
|
1
|
|
| 6 |
8869135
|
SHIFT FORK
|
|
1
|
|
| 7 |
8869251
|
SHIFT FORK ROD
|
|
1
|
|
| 8 |
8869254
|
GEAR SELECT.SLEEVE
|
|
1
|
|
| 9 |
8868907
|
PIN
|
|
1
|
|
| 10 |
8868882
|
SHIFT FORK ROD
|
|
1
|
|
| 11 |
8870501
|
GEARSEGM.GEARSHIFT
|
|
1
|
|
| 12 |
8870480
|
GEAR SELECT.SLEEVE
|
|
1
|
|
| 13 |
8869253
|
CLAMPING PLATE
|
|
1
|
|
| 14 |
8869256
|
CLAMPING PLATE
|
|
1
|
|
| 15 |
8868648
|
SPRING
|
|
1
|
|
| 16 |
8869692
|
GUIDE ROLLER
|
|
1
|
|
| 17 |
42470815
|
ROLLER CAGE
|
|
2
|
|
| 18 |
8868650
|
SPRING
|
|
1
|
|
|
8871179 |
SPRING |
|
1 |
|
| 19 |
8868914
|
ROLLER CAGE
|
|
3
|
|
| 20 |
8868652
|
PLUG
|
|
1
|
|
| 21 |
16508460
|
WASHER
|
|
1
|
|
| 22 |
17257570
|
DOWEL PIN
|
|
8
|
|
| 23 |
16988001
|
PLUG
|
|
3
|
|
| 24 |
8868879
|
HOUSING
|
|
1
|
|
| 25 |
40102753
|
SHAFT SEAL
|
|
2
|
|
|
8872580 |
SHAFT SEAL |
|
2 |
|
| 26 |
8870482
|
LEVER
|
|
1
|
|
|
8871217 |
LEVER |
|
1 |
|
| 27 |
8868878
|
GEAR SHIFT SHAFT
|
|
1
|
|
| 28 |
8868600
|
CAP
|
|
2
|
|
| 29 |
8870799
|
LEVER
|
|
1
|
|
|
8871218 |
LEVER |
|
1 |
|
| 30 |
8868877
|
GEAR SHIFT SHAFT
|
|
1
|
|
| 31 |
17999691
|
BREATHER
|
|
1
|
|
| 32 |
17259470
|
DOWEL PIN
|
|
2
|
|
| 33 |
17256070
|
DOWEL PIN
|
|
1
|
|
| 34 |
16605824
|
HEXAGON BOLT
|
|
8
|
|
| 35 |
16665514
|
WASHER
|
|
23
|
|
| 36 |
500342962
|
LEVER
|
|
1
|
|
| 37 |
500342963
|
GEARSHIFT LEVER
|
|
1
|
|
| 38 |
16605934
|
HEXAGON BOLT
|
|
2
|
|
| 39 |
17042531
|
HEXAGON NUT
|
|
2
|
|
| 40 |
18078814
|
PARALLEL PIN
|
|
2
|
|
| 41 |
18081210
|
PARALLEL PIN
|
|
1
|
|
| 42 |
18081110
|
PARALLEL PIN
|
|
1
|
|
