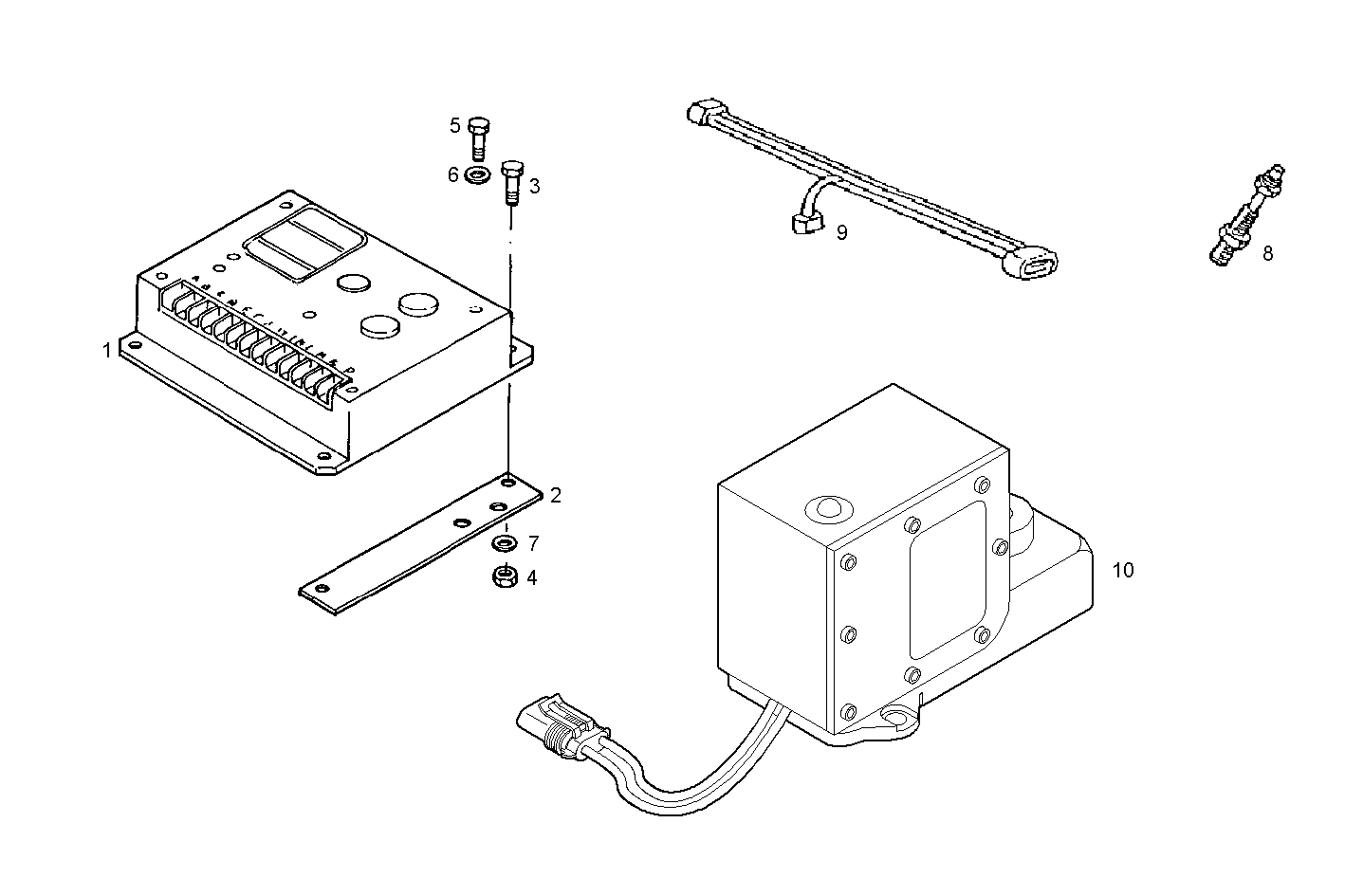

ELECTRONIC SPEED GOVERNOR

Assembly ID: A28110502

Parts

#	Part number	Description	Quantity
1	8018675	SPEED CONTROL	1
2	8011154	RETAINER	1
3	16602024	SCREW	2
	16602025	SCREW	2
4	17037725	NUT	2
5	16043024	HEXAGON BOLT	1
6	17089574	WASHER	1
	17089575	WASHER	1
7	11199279	SPRING WASHER	2
8	8018673	PICK-UP	1
9	8018968	ENGINE HARNESS	1
10	8045582	ENGINE ACTUATOR	1

Applies to engines

Engine	Family
N67MNTE60.00	NEF 6 mechanic. - TIER 2	view
N67MNSI80.00	NEF 6 mechanic. - TIER 2	view
N45MNSE85.00	NEF 4 mechanic. - TIER 2	view
N45MNTE60.00	NEF 4 mechanic. - TIER 2	view
N45MNAE80.00	NEF 4 mechanic. - TIER 2	view
N45MNSE80.01	NEF 4 mechanic. - TIER 2	view
N45MNTE61.01	NEF 4 mechanic. - TIER 2	view
N45MNSE88.01	NEF 4 mechanic. - TIER 2	view
N45MNAE88.00	NEF 4 mechanic. - TIER 2	view
GENEF100M.A552	GENEF 4 mechanic. - TIER 2	view
GENEF100M.A72M	GENEF 4 mechanic. - TIER 2	view
GENEF85M.1A552	GENEF 4 mechanic. - TIER 2	view
NEF45TM1.1A558	NEF 4 mechanic. - TIER 2	view
NEF45TM2.A558	NEF 4 mechanic. - TIER 2	view
NEF67TM3.A558	NEF 6 mechanic. - TIER 2	view
N67MNTE61.01	NEF 6 mechanic. - TIER 2	view
NEF67TM2.1A558	NEF 6 mechanic. - TIER 2	view
GENEF130M.1A552	GENEF 6 mechanic. - TIER 2	view
GENEF130M.1A72M	GENEF 6 mechanic. - TIER 2	view
N45MNTX68.00	NEF 4 mechanic. - TIER 3	view
N45MNTA65.00	NEF 4 mechanic. - 2002/88/CE	view
N45MNSA86.00	NEF 4 mechanic. - 2002/88/CE	view
N67MNTA65.00	NEF 6 mechanic. - 2002/88/CE	view
N45MNSA85.00	NEF 4 mechanic. - 2002/88/CE	view
N67MNTA66.00	NEF 6 mechanic. - 2002/88/CE	view
NEF67TM2A.A558	NEF 6 mechanic. - 2002/88/CE	view
GENEF130MA.A552	GENEF 6 mechanic. - 2002/88/CE	view
GENEF130MA.A72M	GENEF 6 mechanic. - 2002/88/CE	view
NEF45TM1A.A558	NEF 4 mechanic. - 2002/88/CE	view
NEF45TM2A.A558	NEF 4 mechanic. - 2002/88/CE	view
GENEF100MA.A552	GENEF 4 mechanic. - 2002/88/CE	view
GENEF100MA.A72M	GENEF 4 mechanic. - 2002/88/CE	view
N45MNAA85.00	NEF 4 mechanic. - 2002/88/CE	view
N45MNSX88.00	NEF 4 mechanic. - TIER 3	view
GENEF85MA.A552	GENEF 4 mechanic. - 2002/88/CE	view
GENEF85MA.A72M	GENEF 4 mechanic. - 2002/88/CE	view
N45MNSX89.00	NEF 4 mechanic. - TIER 3	view
GENEF160M.A552	GENEF 6 mechanic. - TIER 2	view
GENEF160M.A72M	GENEF 6 mechanic. - TIER 2	view
NEF67TM3A.A550	NEF 6 mechanic. - 2002/88/CE	view
NEF67TM3A.A558	NEF 6 mechanic. - 2002/88/CE	view
GENEF160MA.A552	GENEF 6 mechanic. - 2002/88/CE	view
GENEF160MA.A72M	GENEF 6 mechanic. - 2002/88/CE	view
NEF45SM1A.A010	NEF 4 mechanic. - 2002/88/CE	view
