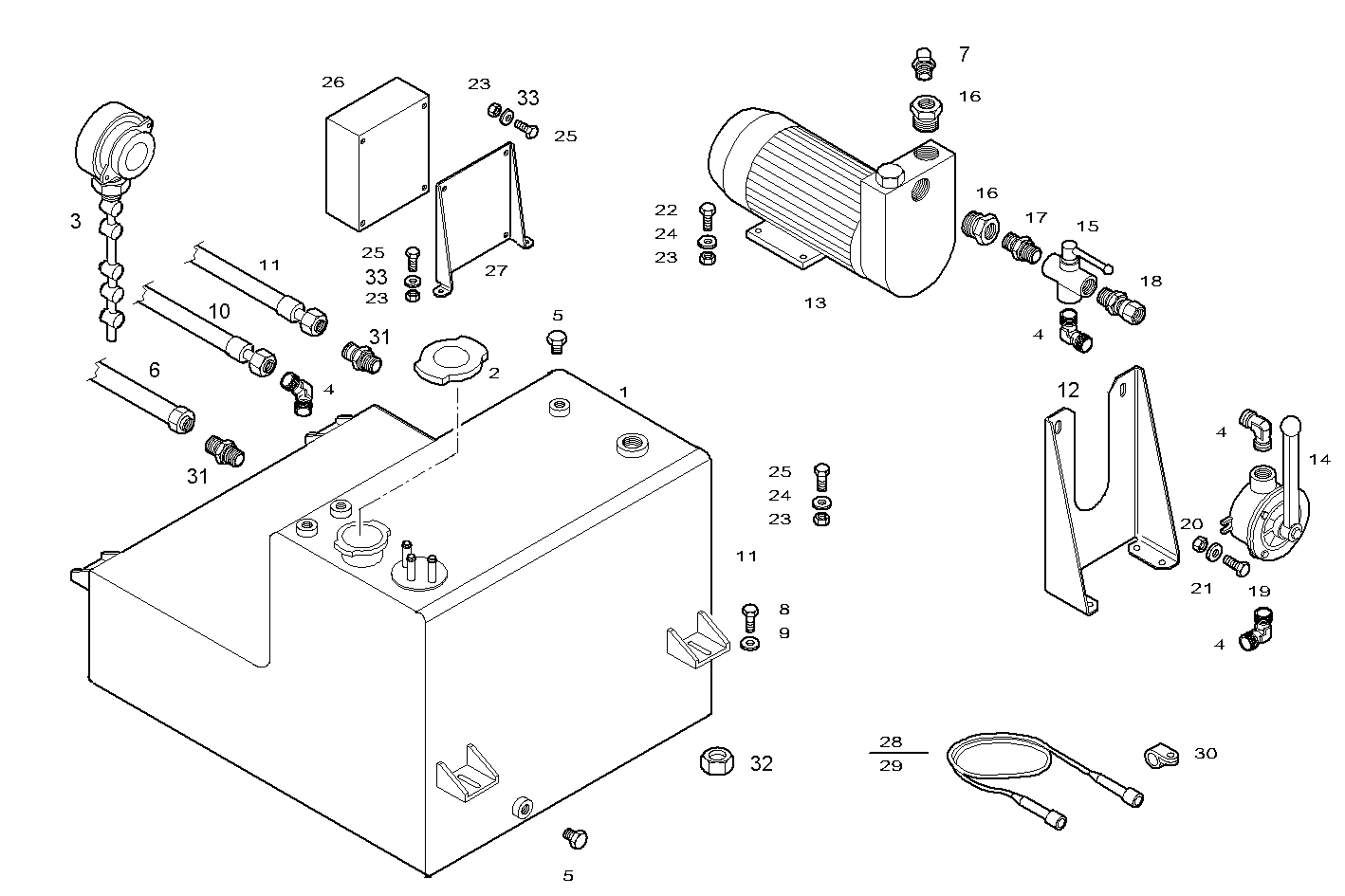

| 1 |
8029746
|
TANK
|
|
1
|
|
| 2 |
8018418
|
FUEL TANK PLUG
|
|
1
|
|
| 3 |
8028532
|
FUEL LEVEL GAUGE
|
|
1
|
|
| 4 |
8028539
|
ELBOW COUPLING
|
|
5
|
|
| 5 |
8029748
|
THREADED PLUG
|
|
1
|
|
| 6 |
8029688
|
FUEL PIPES
|
|
1
|
|
| 7 |
8028524
|
THREADED UNION
|
|
2
|
|
| 8 |
16607524
|
HEXAGON BOLT
|
|
4
|
|
| 9 |
17090174
|
SPRING WASHER
|
|
4
|
|
| 10 |
8029629
|
HOSE
|
|
2
|
|
| 11 |
8028778
|
FUEL LINE
|
|
1
|
|
| 12 |
8028602
|
RETAINER
|
|
1
|
|
| 13 |
8028527
|
PUMP
|
|
1
|
|
| 14 |
8012424
|
MAR. ENG. SUCTION PUMP
|
|
1
|
|
| 15 |
8028526
|
RETAINER COCK
|
|
1
|
|
| 16 |
8028519
|
PIPE SOCKET
|
|
2
|
|
| 17 |
8028522
|
PIPE SOCKET
|
|
1
|
|
| 18 |
8028541
|
PIPE SOCKET
|
|
1
|
|
| 19 |
16605624
|
HEXAGON BOLT
|
|
2
|
|
|
16605635 |
HEXAGON BOLT |
|
2 |
|
| 20 |
17037925
|
HEXAGON NUT
|
|
2
|
|
| 21 |
17098574
|
WASHER
|
|
2
|
|
| 22 |
10902633
|
HEXAGON BOLT
|
|
4
|
|
| 23 |
17037821
|
HEXAGON NUT
|
|
18
|
|
| 24 |
17088874
|
WASHER
|
|
12
|
|
| 25 |
16603677
|
HEXAGON BOLT
|
|
14
|
|
| 26 |
8029967
|
SWITCHGEAR
|
|
1
|
|
| 27 |
8029948
|
RETAINER
|
|
1
|
|
| 28 |
8029992
|
WIRE/CABLE
|
|
1
|
|
| 29 |
8029994
|
WIRE/CABLE
|
|
1
|
|
|
503111878 |
WIRE/CABLE |
|
1 |
|
| 30 |
17315090
|
FASTENING BRACKET
|
|
4
|
|
| 31 |
8028490
|
PIPE SOCKET
|
|
2
|
|
| 32 |
16981135
|
HEXAGON NUT
|
|
3
|
|
| 33 |
17088474
|
WASHER
|
|
6
|
|
