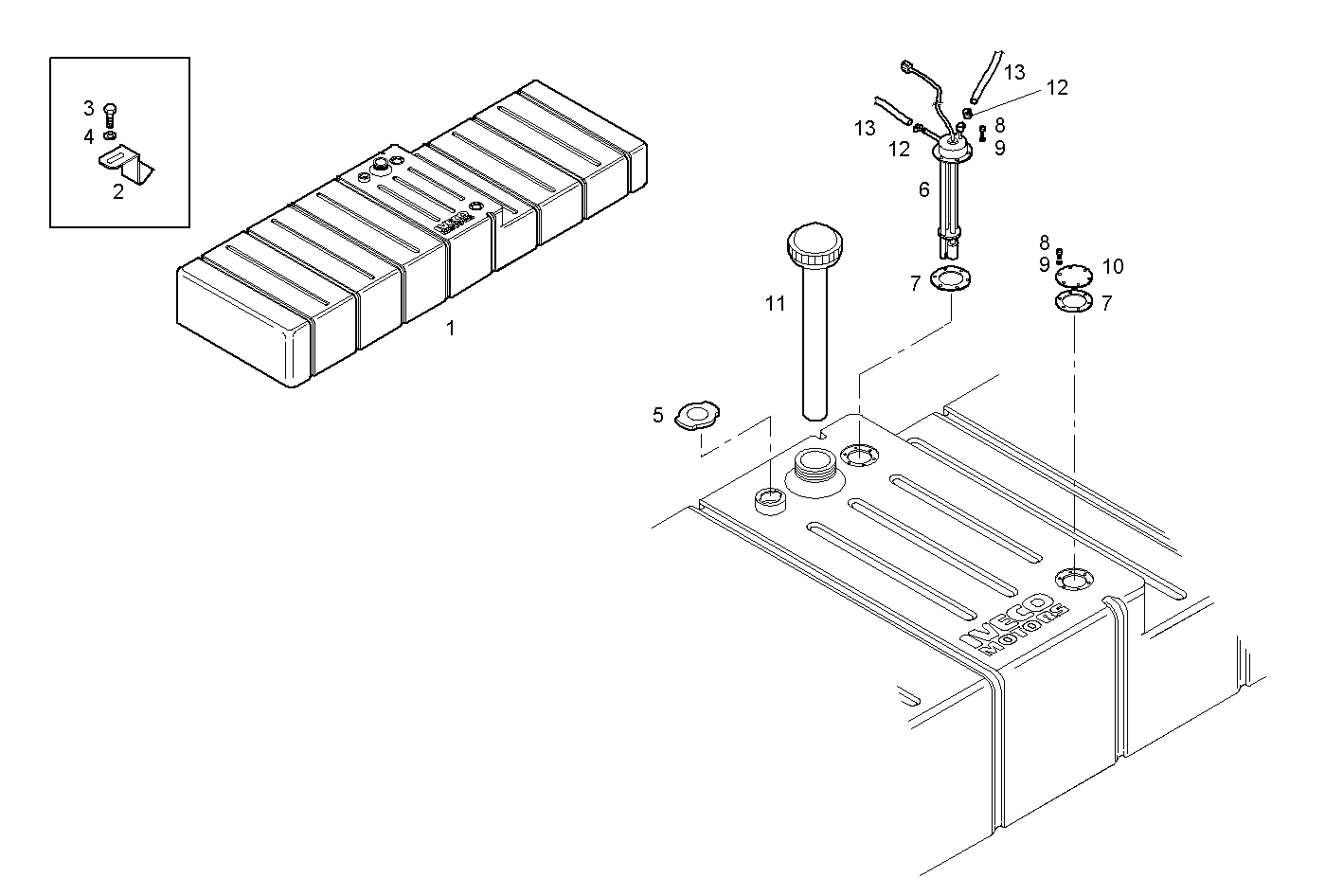

FUEL TANK (VV.FF.)

Assembly ID: A29215001

FUEL TANK (VV.FF.)

Parts

# Part number Description Note Quantity
1 503111804 TANK 1
2 503111785 RETAINER 1
3 16605624 HEXAGON BOLT 1
4 17089474 SPRING WASHER 1
5 2993924 FUEL TANK PLUG 1
6 503111791 CONTROL ASSEMBLY 1
7 8030334 FLAT ENGINE GASKET 2
8 16687824 CYLIND-HEAD SCREW 12
9 11199279 SPRING WASHER 12
10 503111987 COVER 1
11 8030287 FUEL LEVEL GAUGE 1
12 18087993 CLIP 4
13 17724587 RUBBER HOSE 2

Applies to engines

Engine Family
GECURSOR400ES.R990 GECURSOR 13 - 2002/88/CE view
GECURSOR250E.R990 GECURSOR 8 - TIER 2 view
GECURSOR250E.1R990 GECURSOR 8 - TIER 2 view
C87ENTX60.00 CURSOR 9 - 2002/88/CE - TIER 3 view
GECURSOR250ES.R990 GECURSOR 8 - 2002/88/CE view
GECURSOR270ED.R990 GECURSOR 9 - 2002/88/CE TIER 3 view
GECURSOR400EA.R990 GECURSOR 13 - 2002/88/CE view
GECURSOR350EA.R990 GECURSOR 13 - 2002/88/CE view
GECURSOR250ED.R990 GECURSOR 9 - TIER 3 view
