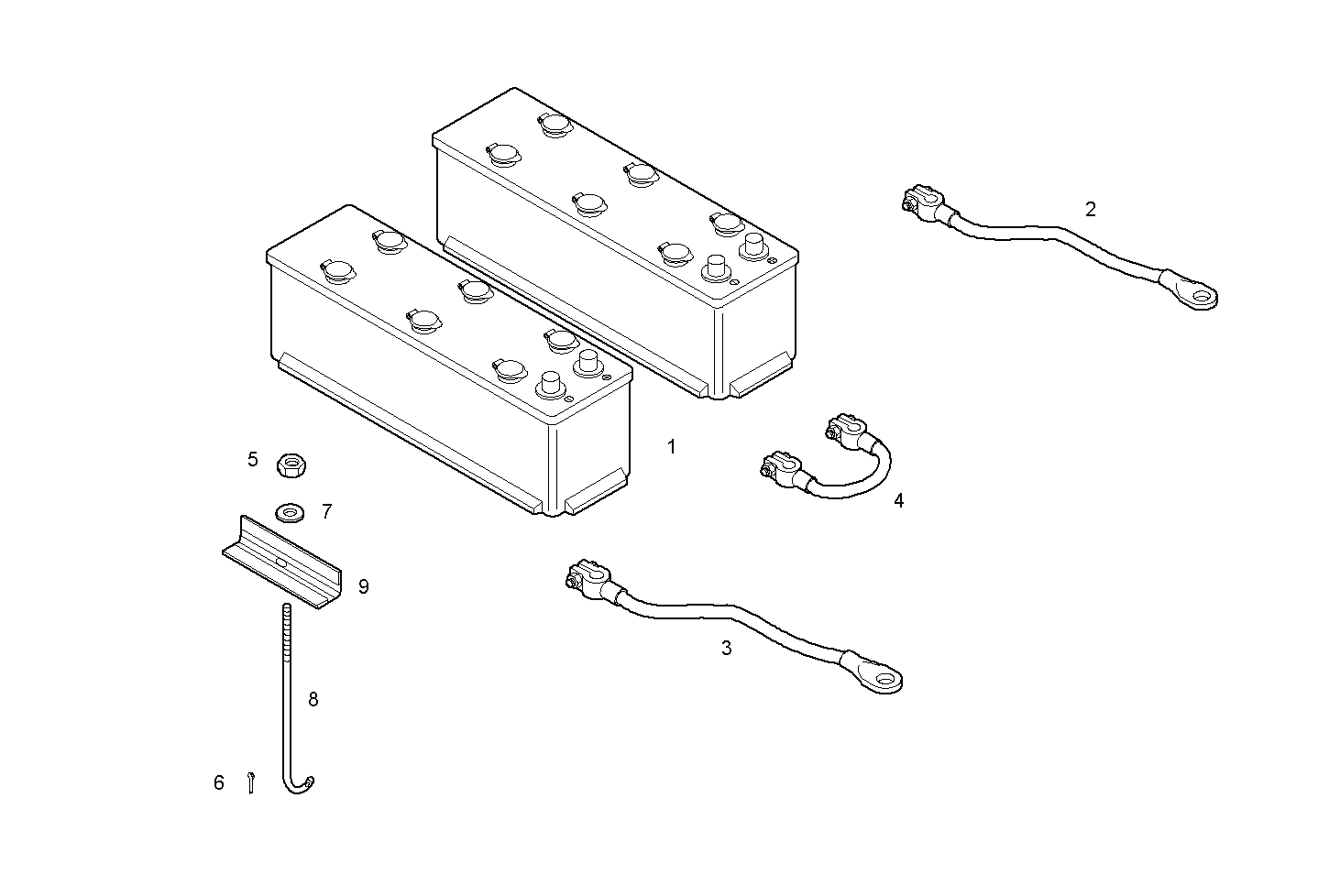

STARTING BATTERY 24V
Assembly ID: A30040007
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8024130 | BATTERY | 2 | ||
| 2 | 8109816 | WIRE/CABLE | 1 | ||
| 3 | 8104366 | WIRE/CABLE | 1 | ||
| 4 | 8104364 | WIRE/CABLE | 1 | ||
| 5 | 17037925 | HEXAGON NUT | 1 | ||
| 6 | 16854301 | SPLIT PIN | 1 | ||
| 7 | 17094904 | WASHER | 1 | ||
| 8 | 8103647 | TIE ROD | 1 | ||
| 9 | 8103649 | ANGLE PIECE | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8210SRi28.00 | 8210SRi28 | view |
| 8210SRi26.03 | 8210SRi26 | view |
| 8210SRi27.01 | 8210SRi27 | view |
| 8281SRi26.02 | 8281SRi26 | view |
| GE8210SRi26.03R970 | GE8210SRi26 | view |
| GE8210SRi27.01N970 | GE8210SRi27 | view |
| GE8210SRi27.01R970 | GE8210SRi27 | view |
| GE8210SRi28.00N970 | GE8210SRi28 | view |
| GE8210SRi28.00R970 | GE8210SRi28 | view |
| GE8281SRi26.02N970 | GE8281SRi26 | view |
