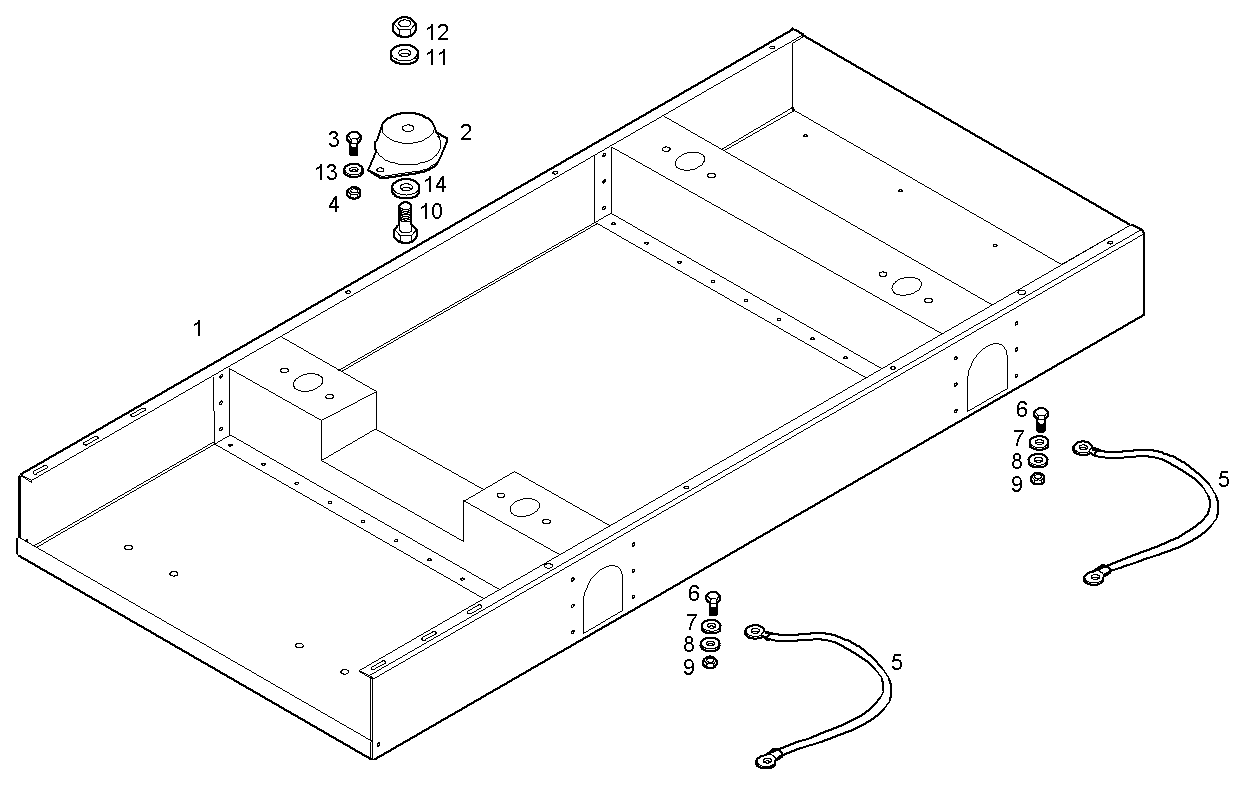

SUBBASE FOR GENERATOR UNIT

Assembly ID: A36105003

SUBBASE FOR GENERATOR UNIT

Parts

# Part number Description Note Quantity
1 503112085 SUBBSAE-SUPPORT FRAME 1
2 8016784 RUBBER PAD 2
3 16607625 SCREW 4
4 17038125 NUT 4
5 8031723 EARTH WIRE 2
6 16609725 HEXAGON BOLT 4
7 17094724 WASHER 4
8 17710074 WASHER 4
9 17037821 HEXAGON NUT 4
10 16614624 HEXAGON BOLT 2
11 17092174 SPRING WASHER 2
12 17038925 NUT 2
13 17090474 SPRING WASHER 4
14 17095724 WASHER 2

Applies to engines

Engine Family
GENEF180E.R980 GENEF 6 electron. - TIER 2 view
GENEF200E.R980 GENEF 6 electron. - TIER 2 view
GENEF200E.R990 GENEF 6 electron. - TIER 2 view
GENEF200E.A71M GENEF 6 electron. - TIER 2 view
GENEF200E.A551 GENEF 6 electron. - TIER 2 view
GENEF200E.A72M GENEF 6 electron. - TIER 2 view
GENEF200E.A552 GENEF 6 electron. - TIER 2 view
N67MNTE60.00 NEF 6 mechanic. - TIER 2 view
GENEF160M.R980 GENEF 6 mechanic. - TIER 2 view
GENEF125M.R980 GENEF 6 mechanic. - TIER 2 view
GENEF130M.R980 GENEF 6 mechanic. - TIER 2 view
