| 1 |
8016847
|

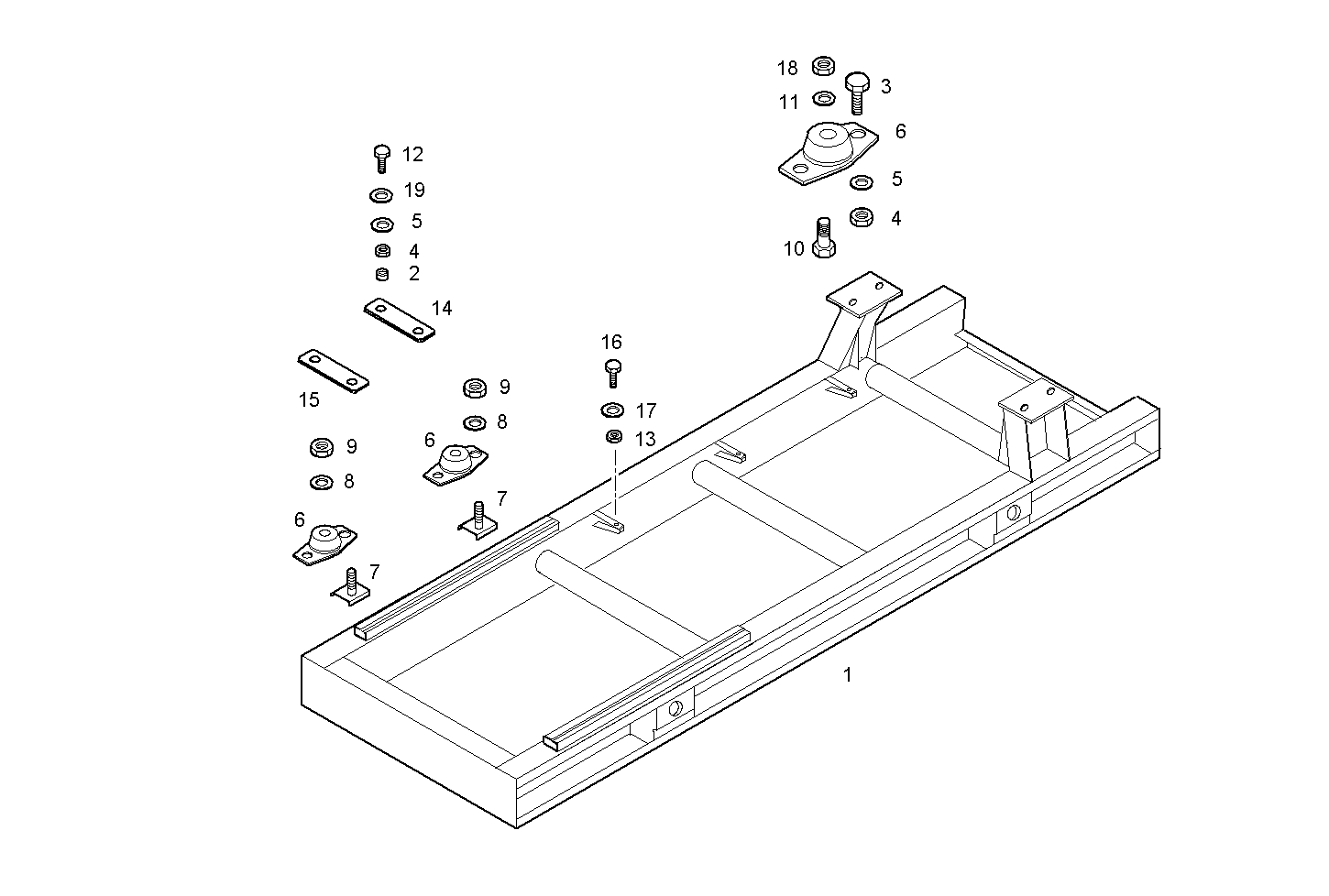

SUBBSAE-SUPPORT FRAME
|
|
1
|
|
| 2 |
8019415
|
SPACING BAR
|
|
4
|
|
| 3 |
16614724
|
SCREW
|
|
4
|
|
| 4 |
17038931
|
HEXAGON NUT
|
|
8
|
|
| 5 |
17092374
|
SPRING WASHER
|
|
4
|
|
| 6 |
4955094
|
RUBBER PAD
|
|
6
|
|
| 7 |
8015168
|
SCREW
|
|
8
|
|
| 8 |
17091974
|
SPRING WASHER
|
|
8
|
|
| 9 |
17038721
|
NUT
|
|
8
|
|
|
17038725 |
NUT |
|
8 |
|
| 10 |
16620124
|
SCREW
|
|
2
|
|
| 11 |
17093174
|
WASHER
|
|
2
|
|
| 12 |
16614934
|
SCREW
|
|
4
|
|
| 13 |
17037925
|
HEXAGON NUT
|
|
5
|
|
| 14 |
8017006
|
SPACING BAR
|
|
1
|
|
| 15 |
8010041
|
SPACING BAR
|
|
1
|
|
| 16 |
16605524
|
HEXAGON BOLT
|
|
5
|
|
| 17 |
17089474
|
SPRING WASHER
|
|
7
|
|
| 18 |
17039721
|
HEXAGON NUT
|
|
2
|
|
| 19 |
17095704
|
WASHER
|
|
8
|
|
