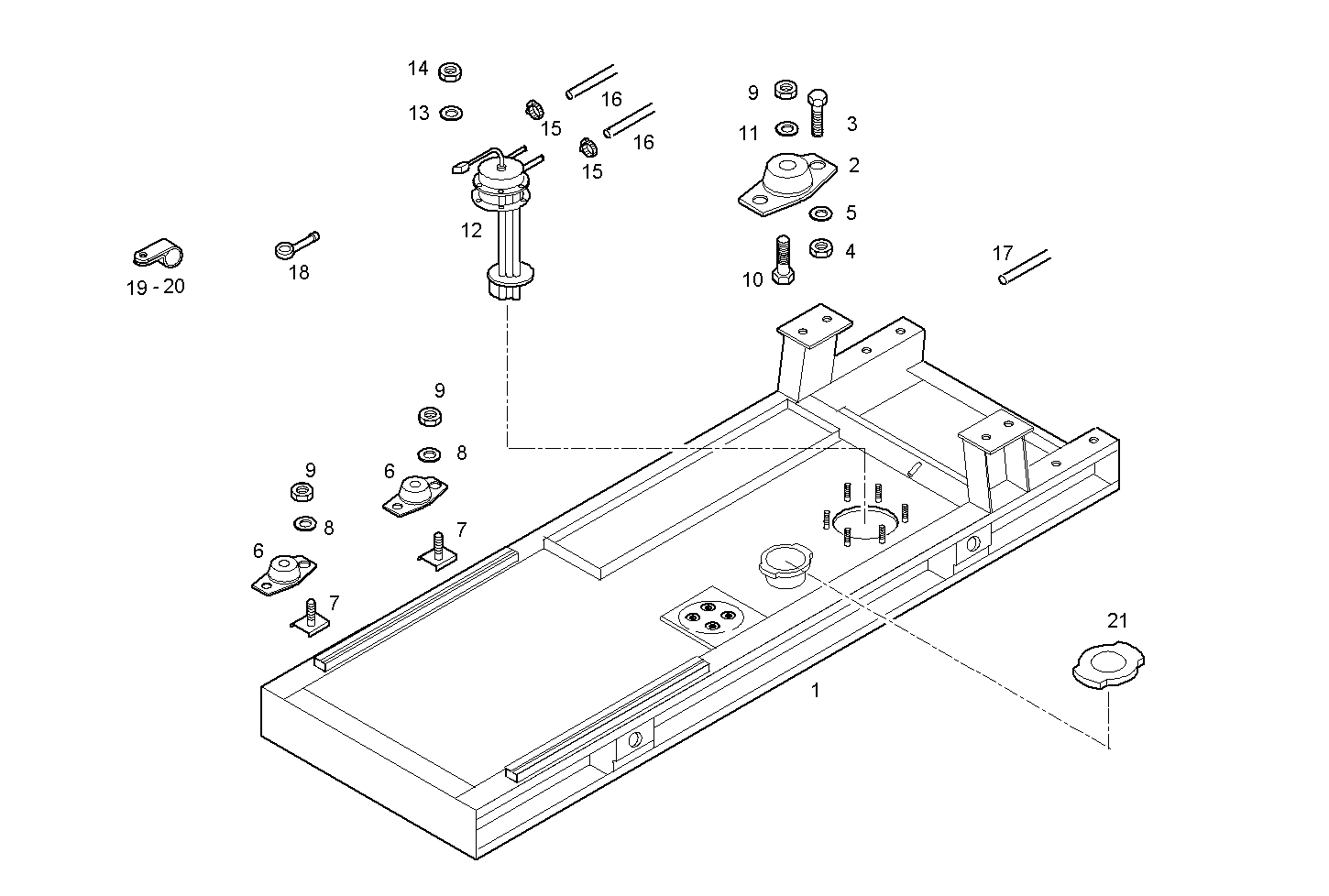

| 1 |
8018806
|
SUBBSAE-SUPPORT FRAME
|
|
1
|
|
| 2 |
4927807
|
RUBBER PAD
|
|
2
|
|
| 3 |
16614724
|
SCREW
|
|
4
|
|
| 4 |
17038931
|
HEXAGON NUT
|
|
4
|
|
| 5 |
17092374
|
SPRING WASHER
|
|
4
|
|
| 6 |
4955094
|
RUBBER PAD
|
|
4
|
|
| 7 |
8015168
|
SCREW
|
|
4
|
|
| 8 |
17091974
|
SPRING WASHER
|
|
8
|
|
| 9 |
17038721
|
NUT
|
|
10
|
|
|
17038725 |
NUT |
|
10 |
|
| 10 |
16613124
|
CYLIND-HEAD SCREW
|
|
2
|
|
| 11 |
17091674
|
WASHER
|
|
2
|
|
| 12 |
8016863
|
FUEL LEVEL GAUGE
|
|
1
|
|
| 13 |
17094204
|
WASHER
|
|
6
|
|
| 14 |
17037621
|
HEXAGON NUT
|
|
6
|
|
| 15 |
18087991
|
CLIP
|
|
6
|
|
|
18087993 |
CLIP |
|
6 |
|
| 16 |
19053182
|
HOSE
|
|
2
|
|
| 17 |
19053382
|
HOSE
|
|
1
|
|
| 18 |
98413896
|
PIPE SOCKET
|
|
1
|
|
| 19 |
17317390
|
FASTENING BRACKET
|
|
1
|
|
| 20 |
4936278
|
CLIP
|
|
1
|
|
| 21 |
8018375
|
PLUG
|
|
1
|
|
