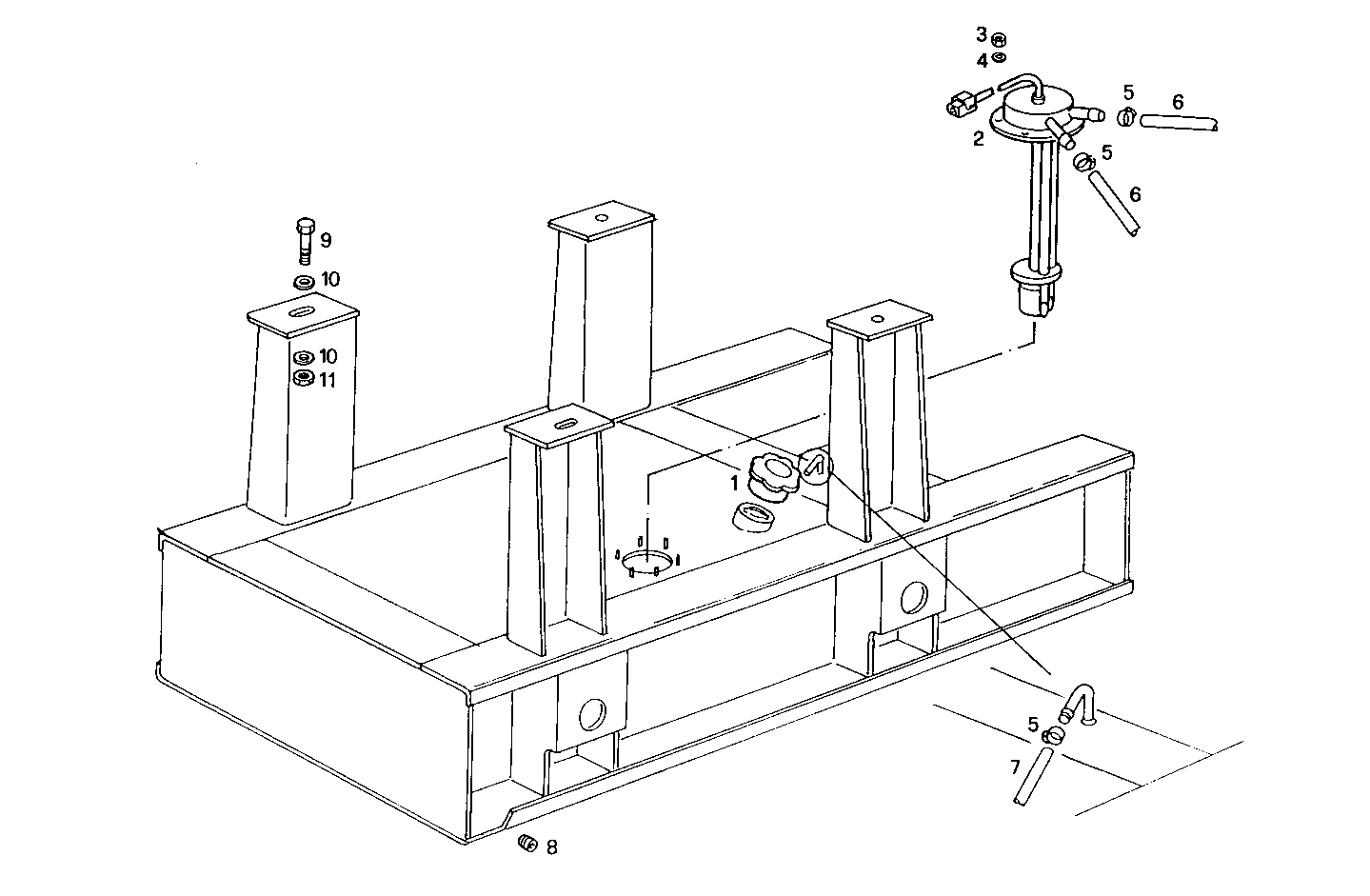

SUBBASE FOR ENGINE CLUTCH
Assembly ID: A36730003
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8018418 | FUEL TANK PLUG | 1 | ||
| 2 | 8015746 | FUEL LEVEL GAUGE | 1 | ||
| 3 | 17037621 | HEXAGON NUT | 6 | ||
| 4 | 17094204 | WASHER | 6 | ||
| 5 | 18087991 | CLIP | 6 | ||
| 6 | 17723082 | BREATHER PIPE | 2 | ||
| 7 | 19053382 | HOSE | 1 | ||
| 8 | 16997771 | PLUG | 1 | ||
| 9 | 16614624 | HEXAGON BOLT | 4 | ||
| 10 | 17092174 | SPRING WASHER | 8 | ||
| 11 | 17039021 | HEXAGON NUT | 4 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8065E00.00 | 8065E00 | view |
| 8065SE00.00 | 8065SE00 | view |
| 8065SRE10.00 | 8065SRE10 | view |
| PU8065E00.00A110 | PU8065E00 | view |
| PU8065SE00.00A110 | PU8065SE00 | view |
| PU8065SRE10.00A110 | PU8065SRE10 | view |
