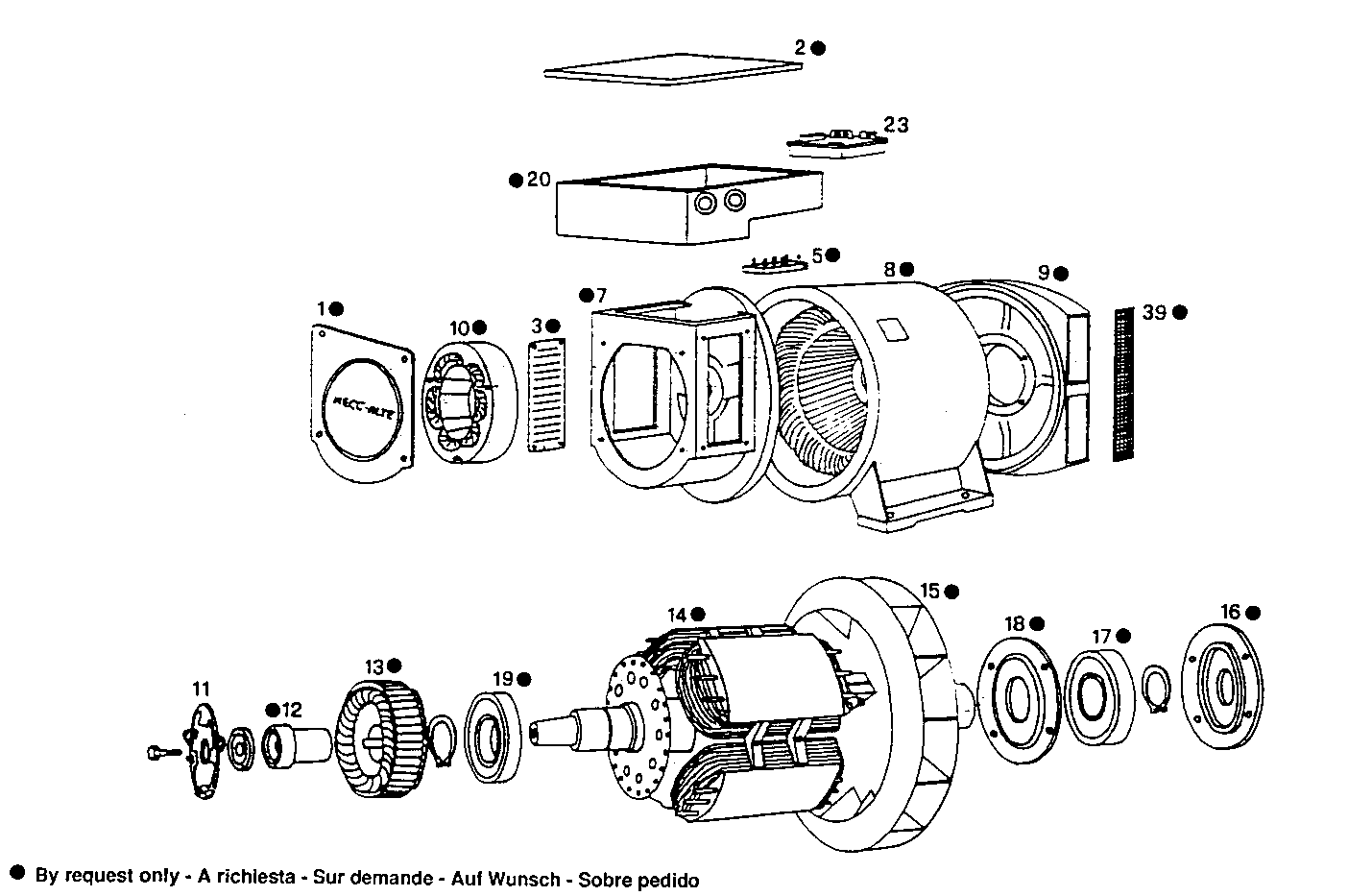

| 1 |
A37000912-02-001
|
COVER
|
|
1
|
|
| 2 |
A37000912-02-002
|
COVER
|
|
1
|
|
| 3 |
A37000912-02-003
|
GRILLE
|
|
2
|
|
| 5 |
A37000912-02-005
|
EL.MACH.CONNECTION BLOCK
|
|
1
|
|
| 7 |
A37000912-02-007
|
BEARING HOUSING
|
|
1
|
|
| 8 |
A37000912-02-008
|
SUPPORT
|
|
1
|
|
| 9 |
A37000912-02-009
|
COVER
|
|
1
|
|
| 10 |
A37000912-02-010
|
STATOR
|
|
1
|
|
| 11 |
8090799
|
EL.MACHINE DIODE
|
|
1
|
|
| 12 |
A37000912-02-012
|
HUB
|
|
1
|
|
| 13 |
A37000912-02-013
|
ARMATURE WINDING
|
|
1
|
|
| 14 |
A37000912-02-014
|
ROTOR
|
|
1
|
|
| 15 |
A37000912-02-015
|
EL.MACHINE BLOWER
|
|
1
|
|
| 16 |
A37000912-02-016
|
FLANGE
|
|
1
|
|
| 17 |
A37000912-02-017
|
DRIVE BEARING
|
|
1
|
|
| 18 |
A37000912-02-018
|
FLANGE
|
|
1
|
|
| 19 |
A37000912-02-019
|
DRIVE BEARING
|
|
1
|
|
| 20 |
A37000912-02-020
|
COVER
|
|
1
|
|
| 23 |
8091776
|
EL.MACHINE VOLTAGE REGUL.
|
|
1
|
|
|
8094731 |
EL.MACHINE VOLTAGE REGUL. |
|
1 |
|
| 39 |
A37000912-02-039
|
PROTECTION
|
|
2
|
|
