| 1 |
8005810
|

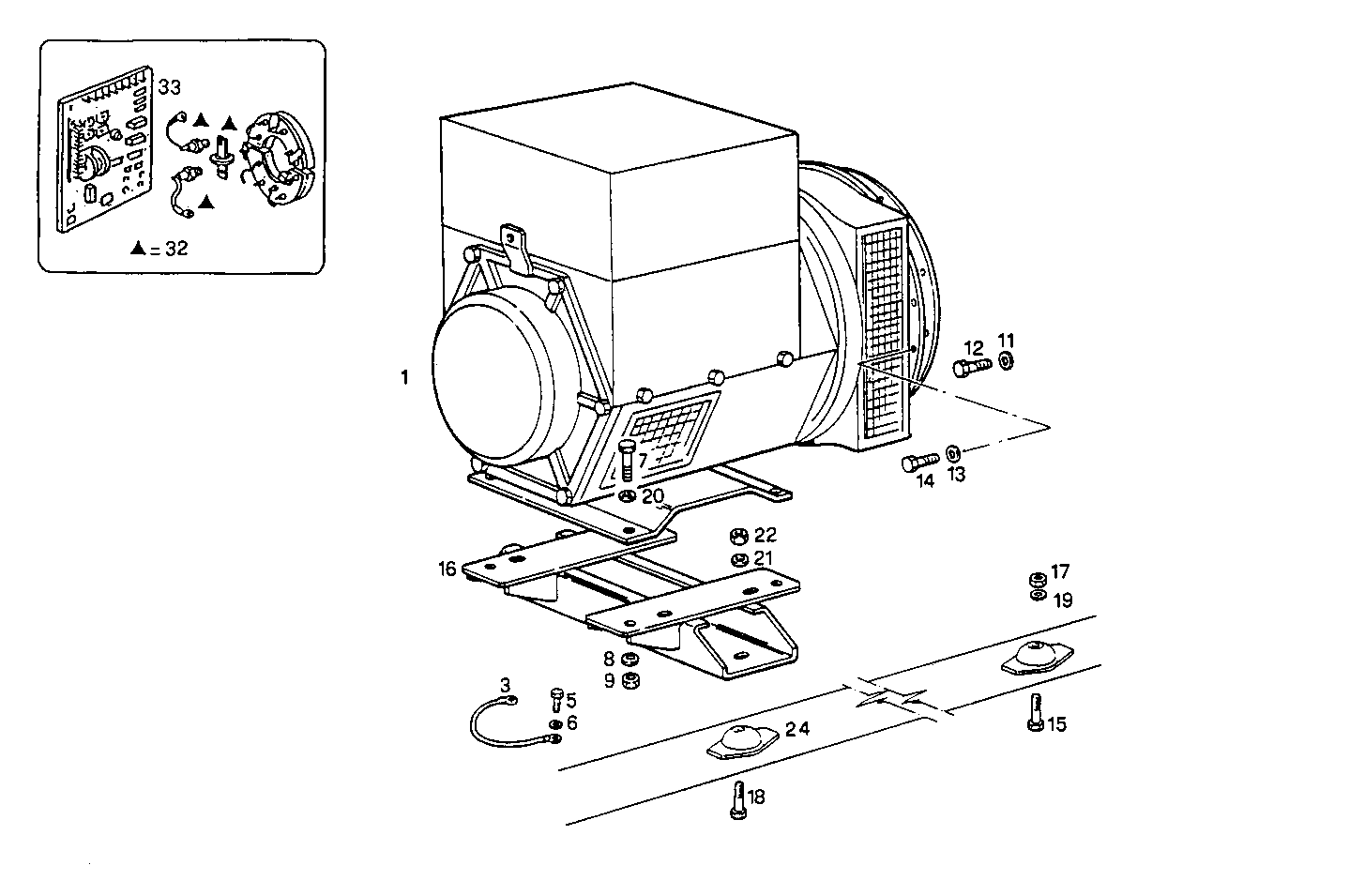

ELECTRIC MACHINE
|
|
1
|
|
| 3 |
8104707
|
WIRE/CABLE
|
|
1
|
|
| 5 |
16043321
|
HEXAGON BOLT
|
|
1
|
|
| 6 |
11193871
|
WASHER
|
|
1
|
|
|
17089474 |
WASHER |
|
1 |
|
| 7 |
15981121
|
HEXAGON BOLT
|
|
4
|
|
| 8 |
11200271
|
WASHER
|
|
4
|
|
|
11200279 |
WASHER |
|
4 |
|
| 9 |
12164111
|
HEXAGON NUT
|
|
4
|
|
| 11 |
10516871
|
SPRING WASHER
|
|
8
|
|
| 12 |
15970531
|
SCREW
|
|
8
|
|
| 13 |
11198371
|
SPRING WASHER
|
|
12
|
|
|
17090274 |
SPRING WASHER |
|
12 |
|
| 14 |
11306921
|
SCREW
|
|
12
|
|
| 15 |
11227021
|
HEXAGON BOLT
|
|
2
|
|
| 16 |
8100182
|
SUPPORT
|
|
1
|
|
| 17 |
12164011
|
HEXAGON NUT
|
|
2
|
|
| 18 |
15840521
|
SCREW
|
|
2
|
|
| 19 |
11200171
|
SPRING WASHER
|
|
2
|
|
|
17091974 |
SPRING WASHER |
|
2 |
|
| 20 |
4929369
|
WASHER
|
|
4
|
|
| 21 |
11200471
|
WASHER
|
|
2
|
|
|
17092874 |
WASHER |
|
2 |
|
| 22 |
12164311
|
HEXAGON NUT
|
|
2
|
|
| 24 |
4955094
|
RUBBER PAD
|
|
2
|
|
| 32 |
8092769
|
KIT-GENERATOR
|
|
1
|
|
| 33 |
8106738
|
EL.MACHINE VOLTAGE REGUL.
|
|
1
|
|
|
8097970 |
EL.MACHINE VOLTAGE REGUL. |
|
1 |
|
