| 1 |
8015529
|

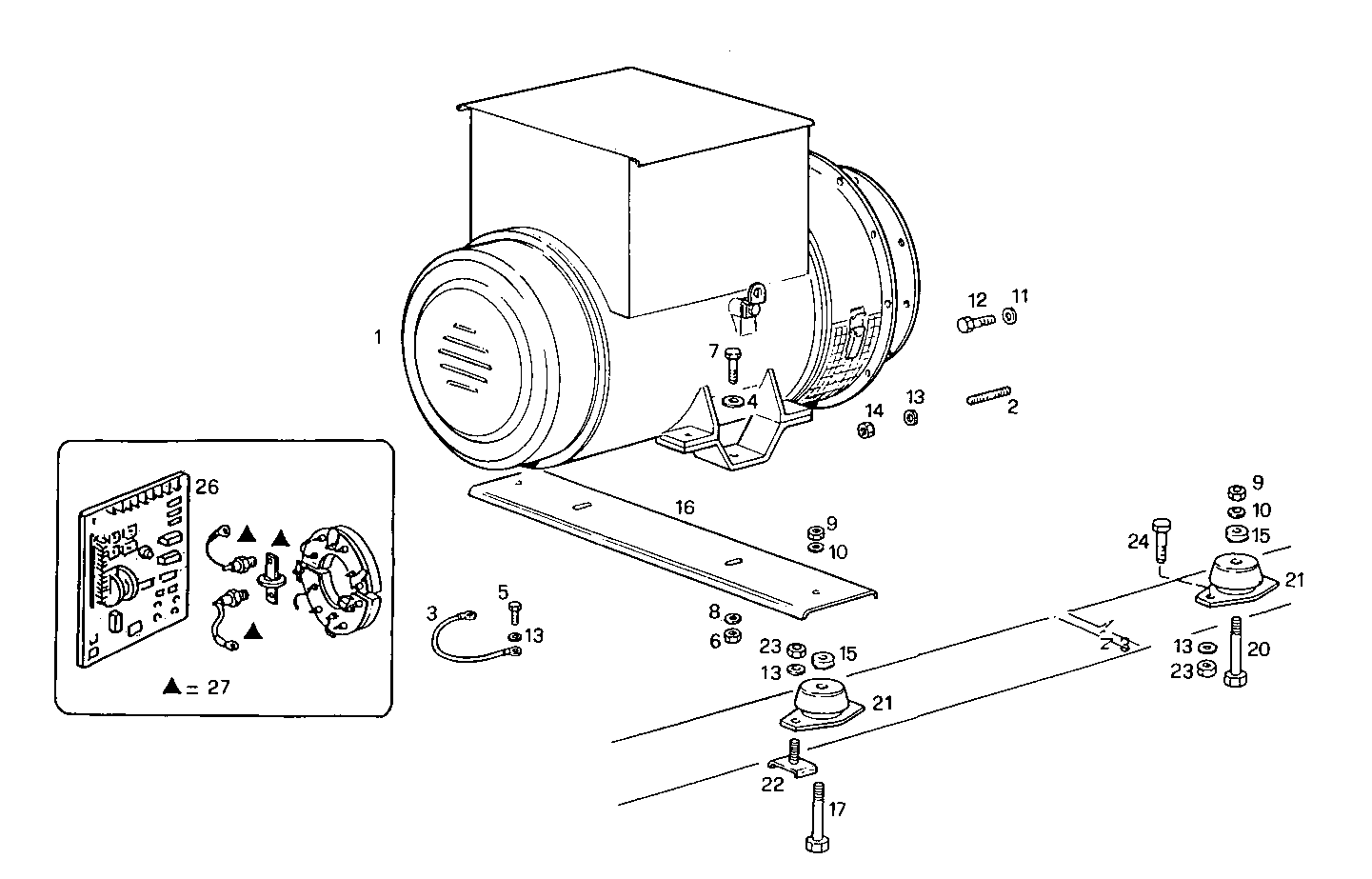

ELECTRIC MACHINE
|
|
1
|
|
| 2 |
13449421
|
STUD
|
|
12
|
|
|
13449424 |
STUD |
|
12 |
|
| 3 |
8104707
|
WIRE/CABLE
|
|
1
|
|
| 4 |
4929369
|
WASHER
|
|
2
|
|
| 5 |
16043124
|
SCREW
|
|
1
|
|
| 6 |
17038421
|
HEXAGON NUT
|
|
2
|
|
|
17038425 |
HEXAGON NUT |
|
2 |
|
| 7 |
16610124
|
HEXAGON BOLT
|
|
2
|
|
| 8 |
17091374
|
SPRING WASHER
|
|
4
|
|
| 9 |
17038921
|
NUT
|
|
4
|
|
| 10 |
17092374
|
SPRING WASHER
|
|
8
|
|
| 11 |
17494934
|
WASHER
|
|
8
|
|
| 12 |
15970521
|
HEXAGON BOLT
|
|
8
|
|
|
15970524 |
HEXAGON BOLT |
|
8 |
|
| 13 |
17090174
|
SPRING WASHER
|
|
21
|
|
| 14 |
17038221
|
HEXAGON NUT
|
|
12
|
|
|
17038225 |
HEXAGON NUT |
|
12 |
|
| 15 |
8015486
|
SPACING BAR
|
|
2
|
|
| 16 |
8016047
|
SUPPORT
|
|
1
|
|
| 17 |
16614924
|
SCREW
|
|
2
|
|
|
16614934 |
SCREW |
|
2 |
|
| 20 |
16614624
|
HEXAGON BOLT
|
|
2
|
|
| 21 |
4955094
|
RUBBER PAD
|
|
4
|
|
| 22 |
8015168
|
SCREW
|
|
4
|
|
| 23 |
17037821
|
HEXAGON NUT
|
|
8
|
|
| 24 |
16606524
|
HEXAGON BOLT
|
|
4
|
|
| 26 |
8106757
|
EL.MACHINE VOLTAGE REGUL.
|
|
1
|
|
| 27 |
8092769
|
KIT-GENERATOR
|
|
1
|
|
