| 1 |
8020805
|

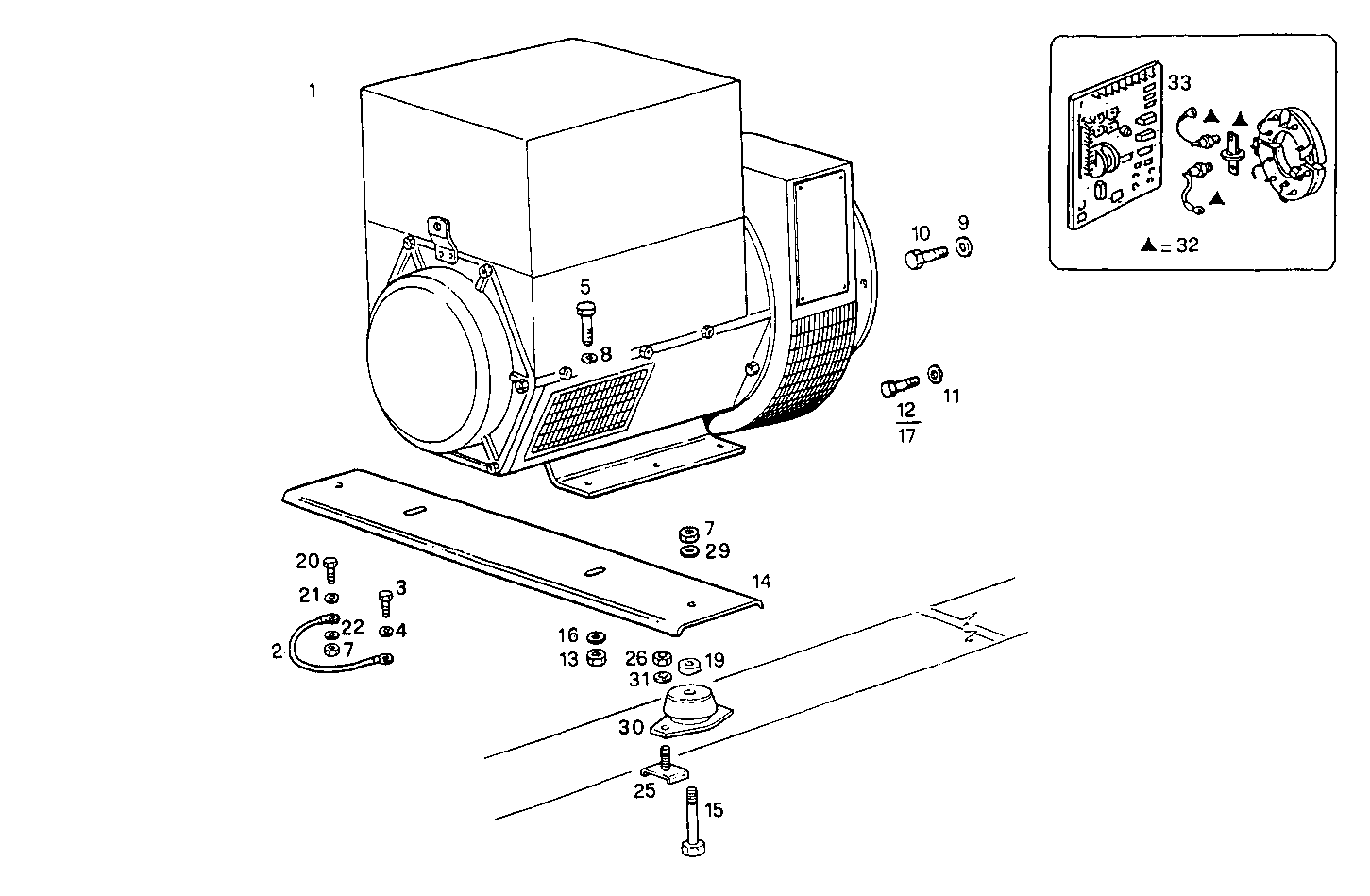

ELECTRIC MACHINE
|
|
1
|
|
| 2 |
8110852
|
EARTH WIRE
|
|
1
|
|
| 3 |
16043124
|
SCREW
|
|
1
|
|
| 4 |
17089474
|
SPRING WASHER
|
|
1
|
|
| 5 |
16614824
|
SCREW
|
|
2
|
|
| 7 |
17037931
|
HEXAGON NUT
|
|
3
|
|
| 8 |
4929369
|
WASHER
|
|
2
|
|
| 9 |
17494934
|
WASHER
|
|
8
|
|
| 10 |
15970521
|
HEXAGON BOLT
|
|
8
|
|
|
15970524 |
HEXAGON BOLT |
|
8 |
|
| 11 |
17090174
|
SPRING WASHER
|
|
10
|
|
| 12 |
16607824
|
HEXAGON BOLT
|
|
4
|
|
| 13 |
17038921
|
NUT
|
|
2
|
|
| 14 |
8015167
|
SUPPORT
|
|
1
|
|
| 15 |
16615624
|
HEXAGON BOLT
|
|
2
|
|
| 16 |
17092174
|
SPRING WASHER
|
|
2
|
|
| 17 |
16608024
|
HEXAGON BOLT
|
|
6
|
|
| 19 |
8026584
|
SPACING BAR
|
|
2
|
|
| 20 |
16605624
|
HEXAGON BOLT
|
|
1
|
|
|
16605635 |
HEXAGON BOLT |
|
1 |
|
| 21 |
17094714
|
WASHER
|
|
1
|
|
| 22 |
17710174
|
WASHER
|
|
1
|
|
| 25 |
8016024
|
SCREW
|
|
4
|
|
| 26 |
17038121
|
HEXAGON NUT
|
|
4
|
|
|
17038131 |
HEXAGON NUT |
|
4 |
|
| 29 |
17092374
|
SPRING WASHER
|
|
2
|
|
| 30 |
4911960
|
RUBBER PAD
|
|
2
|
|
| 31 |
17090974
|
SPRING WASHER
|
|
4
|
|
| 32 |
8092769
|
KIT-GENERATOR
|
|
1
|
|
| 33 |
8106738
|
EL.MACHINE VOLTAGE REGUL.
|
|
1
|
|
|
8097970 |
EL.MACHINE VOLTAGE REGUL. |
|
1 |
|
