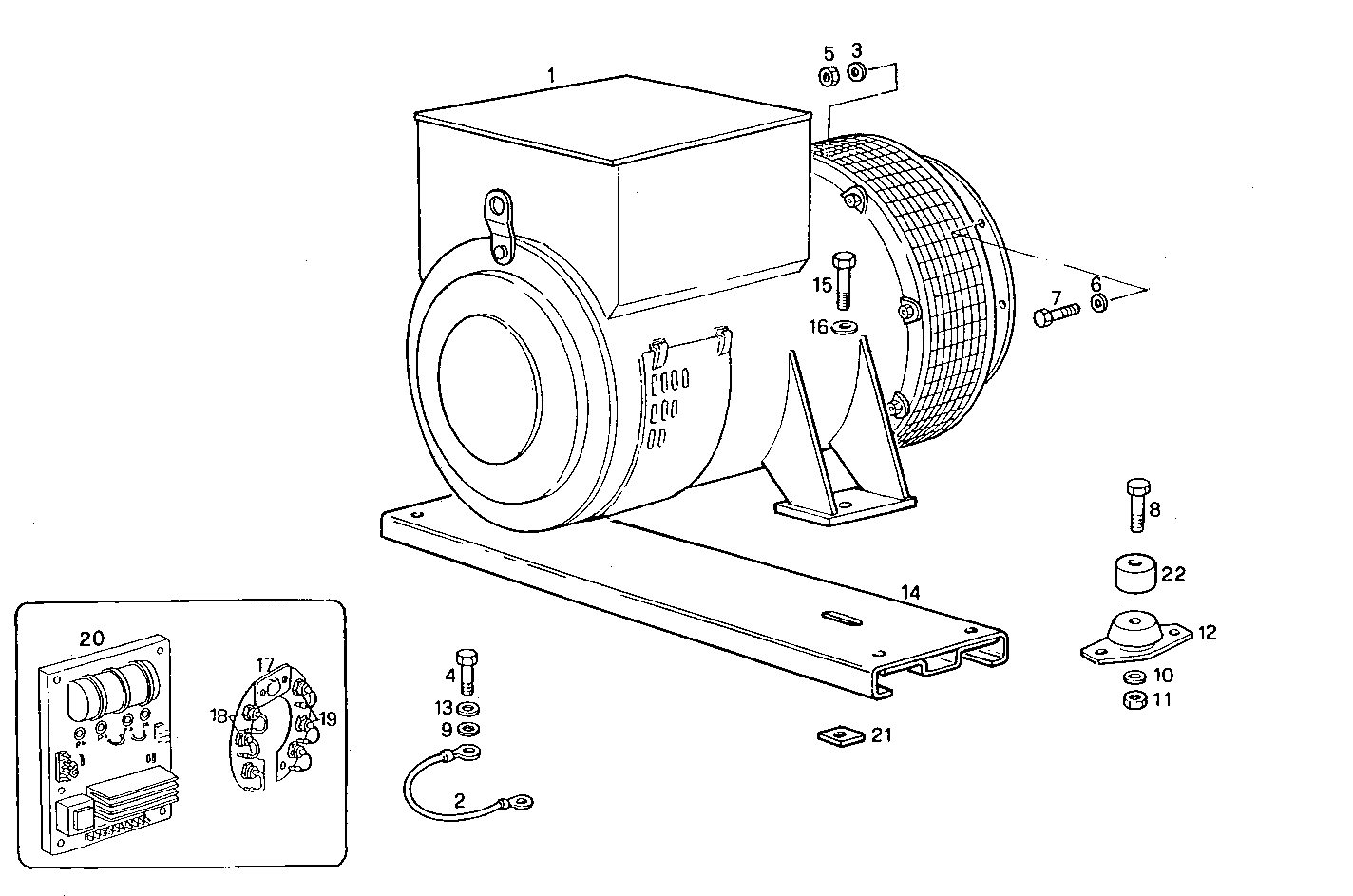

| 1 |
8015644
|
ELECTRIC MACHINE
|
|
1
|
|
| 2 |
8104707
|
WIRE/CABLE
|
|
1
|
|
| 3 |
17090174
|
SPRING WASHER
|
|
12
|
|
| 4 |
15970521
|
HEXAGON BOLT
|
|
1
|
|
|
15970524 |
HEXAGON BOLT |
|
1 |
|
| 5 |
17038221
|
HEXAGON NUT
|
|
12
|
|
|
17038225 |
HEXAGON NUT |
|
12 |
|
| 6 |
17091174
|
SPRING WASHER
|
|
8
|
|
| 7 |
15540431
|
HEXAGON BOLT
|
|
8
|
|
|
15540434 |
HEXAGON BOLT |
|
8 |
|
| 8 |
16620524
|
SCREW
|
|
4
|
|
| 9 |
16665604
|
WASHER
|
|
1
|
|
| 10 |
17093174
|
WASHER
|
|
4
|
|
| 11 |
17039721
|
HEXAGON NUT
|
|
4
|
|
| 12 |
4955094
|
RUBBER PAD
|
|
4
|
|
| 13 |
17090474
|
SPRING WASHER
|
|
1
|
|
| 14 |
8019651
|
SUPPORT
|
|
1
|
|
| 15 |
16617424
|
SCREW
|
|
2
|
|
| 16 |
17092774
|
WASHER
|
|
2
|
|
| 17 |
8092295
|
SUPPRESSOR
|
|
1
|
|
| 18 |
8092294
|
EL.MACHINE DIODE
|
|
1
|
|
| 19 |
8092293
|
EL.MACHINE DIODE
|
|
1
|
|
| 20 |
8092292
|
EL.MACHINE VOLTAGE REGUL.
|
|
1
|
|
| 21 |
8019231
|
PLATE
|
|
2
|
|
| 22 |
8108891
|
SPACING BAR
|
|
4
|
|
