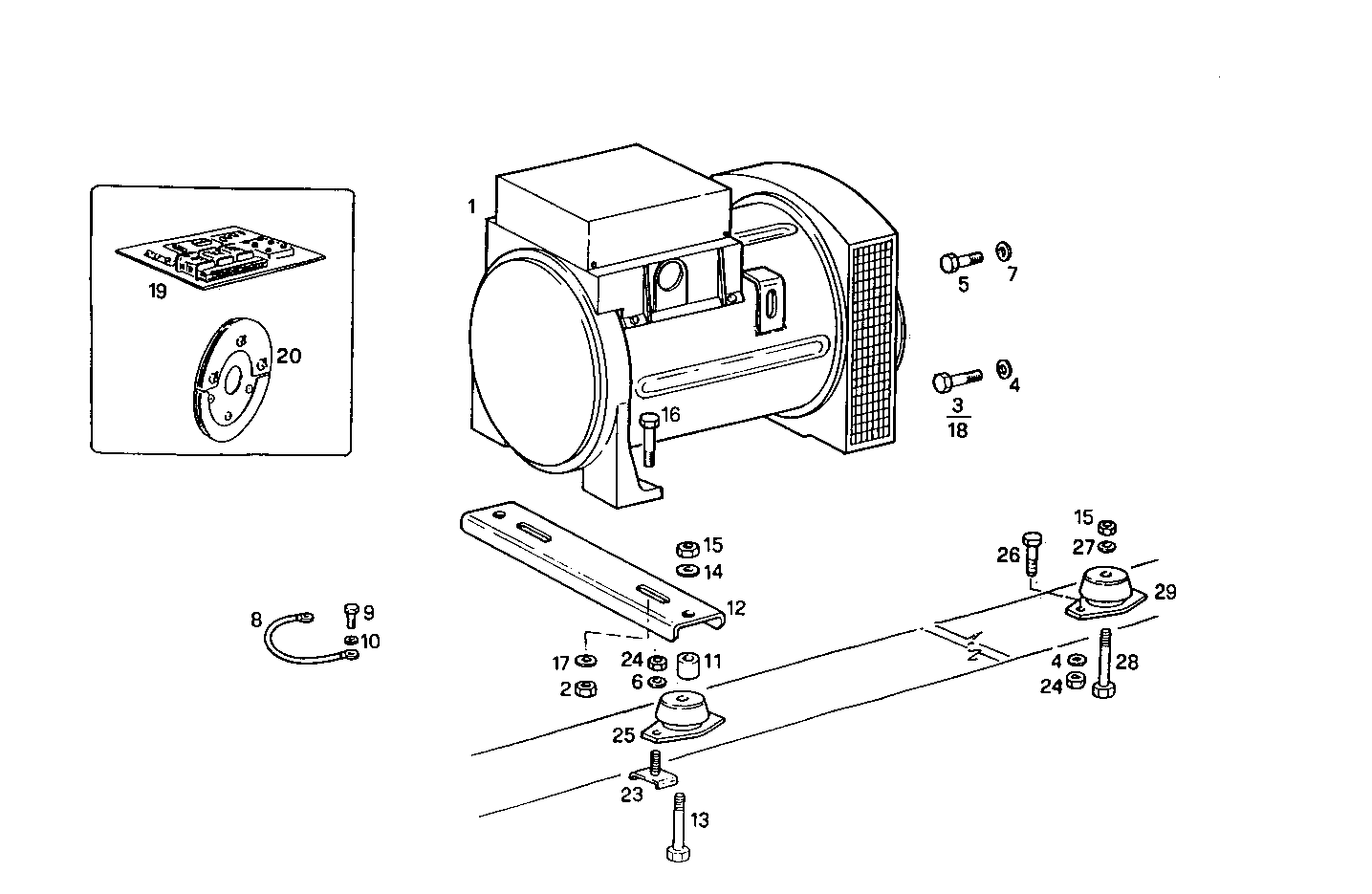

| 1 |
8020912
|
ELECTRIC MACHINE
|
|
1
|
|
| 2 |
17039321
|
NUT
|
|
2
|
|
| 3 |
15970921
|
HEXAGON BOLT
|
|
10
|
|
| 4 |
17090174
|
SPRING WASHER
|
|
16
|
|
| 5 |
15004021
|
HEXAGON BOLT
|
|
8
|
|
| 6 |
4979447
|
WASHER
|
|
2
|
|
| 7 |
17494934
|
WASHER
|
|
8
|
|
| 8 |
8110852
|
EARTH WIRE
|
|
1
|
|
| 9 |
16043124
|
SCREW
|
|
1
|
|
| 10 |
17089474
|
SPRING WASHER
|
|
1
|
|
| 11 |
8015985
|
SPACING BAR
|
|
2
|
|
| 12 |
8015167
|
SUPPORT
|
|
1
|
|
| 13 |
16620424
|
HEXAGON BOLT
|
|
2
|
|
| 14 |
17093174
|
WASHER
|
|
2
|
|
| 15 |
17039721
|
HEXAGON NUT
|
|
2
|
|
| 16 |
16617324
|
SCREW
|
|
2
|
|
| 17 |
17092774
|
WASHER
|
|
2
|
|
| 18 |
11306921
|
SCREW
|
|
2
|
|
| 19 |
8091776
|
EL.MACHINE VOLTAGE REGUL.
|
|
1
|
|
|
8094731 |
EL.MACHINE VOLTAGE REGUL. |
|
1 |
|
| 20 |
8091775
|
EL.MACHINE DIODE
|
|
1
|
|
|
8093763 |
EL.MACHINE DIODE |
|
1 |
|
| 23 |
8015168
|
SCREW
|
|
4
|
|
| 24 |
17037821
|
HEXAGON NUT
|
|
8
|
|
| 25 |
4955094
|
RUBBER PAD
|
|
2
|
|
| 26 |
16607524
|
HEXAGON BOLT
|
|
4
|
|
| 27 |
17092374
|
SPRING WASHER
|
|
4
|
|
| 28 |
16607524
|
HEXAGON BOLT
|
|
4
|
|
| 29 |
4911960
|
RUBBER PAD
|
|
2
|
|
