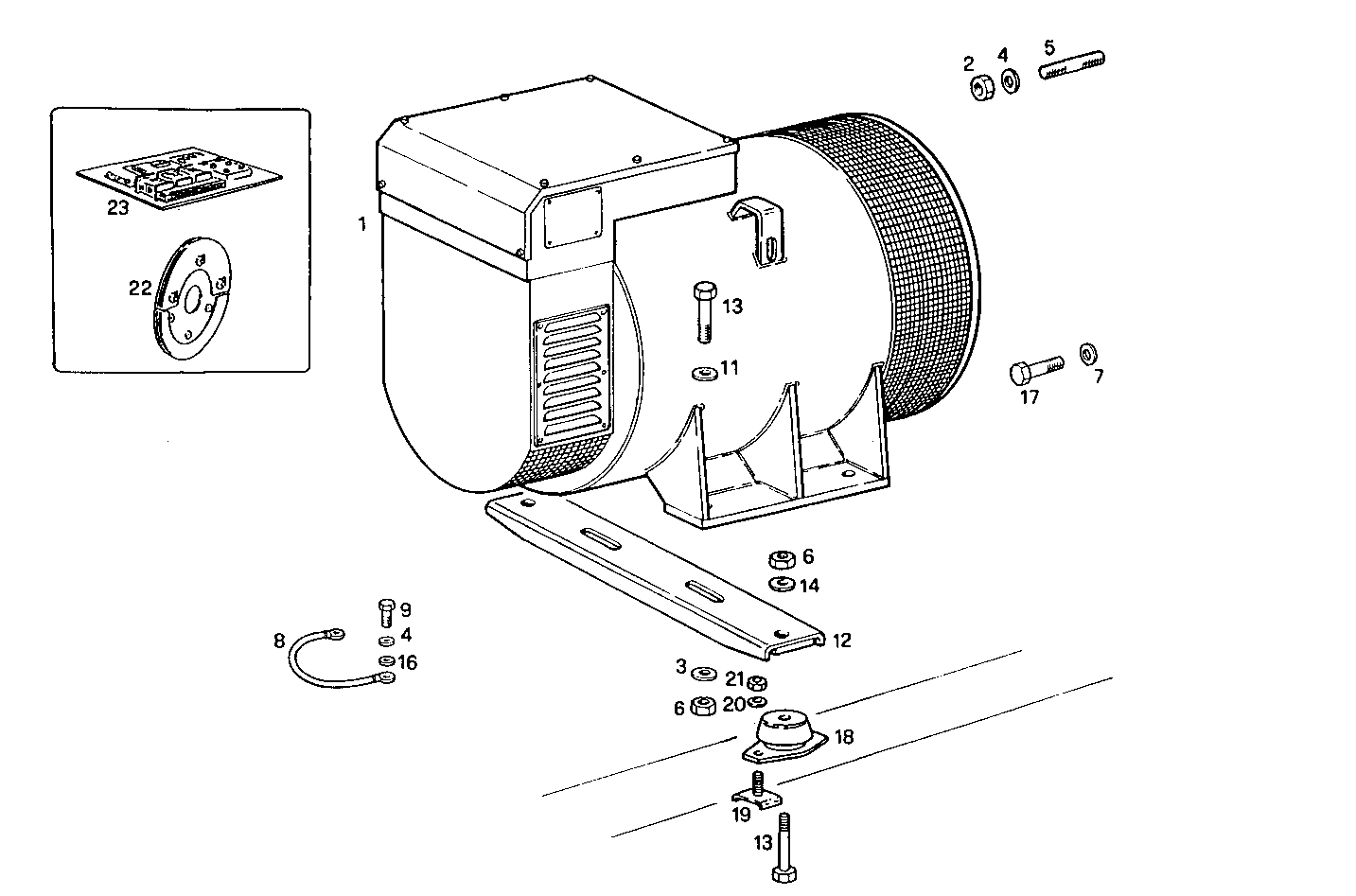

| 1 |
8015007
|
ELECTRIC MACHINE
|
|
1
|
|
| 2 |
17038221
|
HEXAGON NUT
|
|
12
|
|
|
17038225 |
HEXAGON NUT |
|
12 |
|
| 3 |
17096204
|
WASHER
|
|
2
|
|
|
17096214 |
WASHER |
|
2 |
|
| 4 |
17090174
|
SPRING WASHER
|
|
13
|
|
| 5 |
17368224
|
STUD
|
|
12
|
|
|
17368225 |
STUD |
|
12 |
|
| 6 |
17039721
|
HEXAGON NUT
|
|
4
|
|
| 7 |
17091174
|
SPRING WASHER
|
|
8
|
|
| 8 |
8023916
|
EARTH WIRE
|
|
1
|
|
| 9 |
15970521
|
HEXAGON BOLT
|
|
1
|
|
|
15970524 |
HEXAGON BOLT |
|
1 |
|
| 11 |
8016962
|
WASHER
|
|
2
|
|
| 12 |
8016859
|
SUPPORT
|
|
1
|
|
| 13 |
16620224
|
SCREW
|
|
4
|
|
| 14 |
17093174
|
WASHER
|
|
2
|
|
| 16 |
17095104
|
WASHER
|
|
1
|
|
|
17095125 |
WASHER |
|
1 |
|
| 17 |
15540431
|
HEXAGON BOLT
|
|
8
|
|
|
15540434 |
HEXAGON BOLT |
|
8 |
|
| 18 |
4755094
|
RETAINER
|
|
2
|
|
| 19 |
8015168
|
SCREW
|
|
4
|
|
| 20 |
17091974
|
SPRING WASHER
|
|
4
|
|
| 21 |
17038721
|
NUT
|
|
4
|
|
|
17038725 |
NUT |
|
4 |
|
| 22 |
8090799
|
EL.MACHINE DIODE
|
|
1
|
|
| 23 |
8091776
|
EL.MACHINE VOLTAGE REGUL.
|
|
1
|
|
|
8094731 |
EL.MACHINE VOLTAGE REGUL. |
|
1 |
|
