CABLES AND FITTING
Assembly ID: A38100502

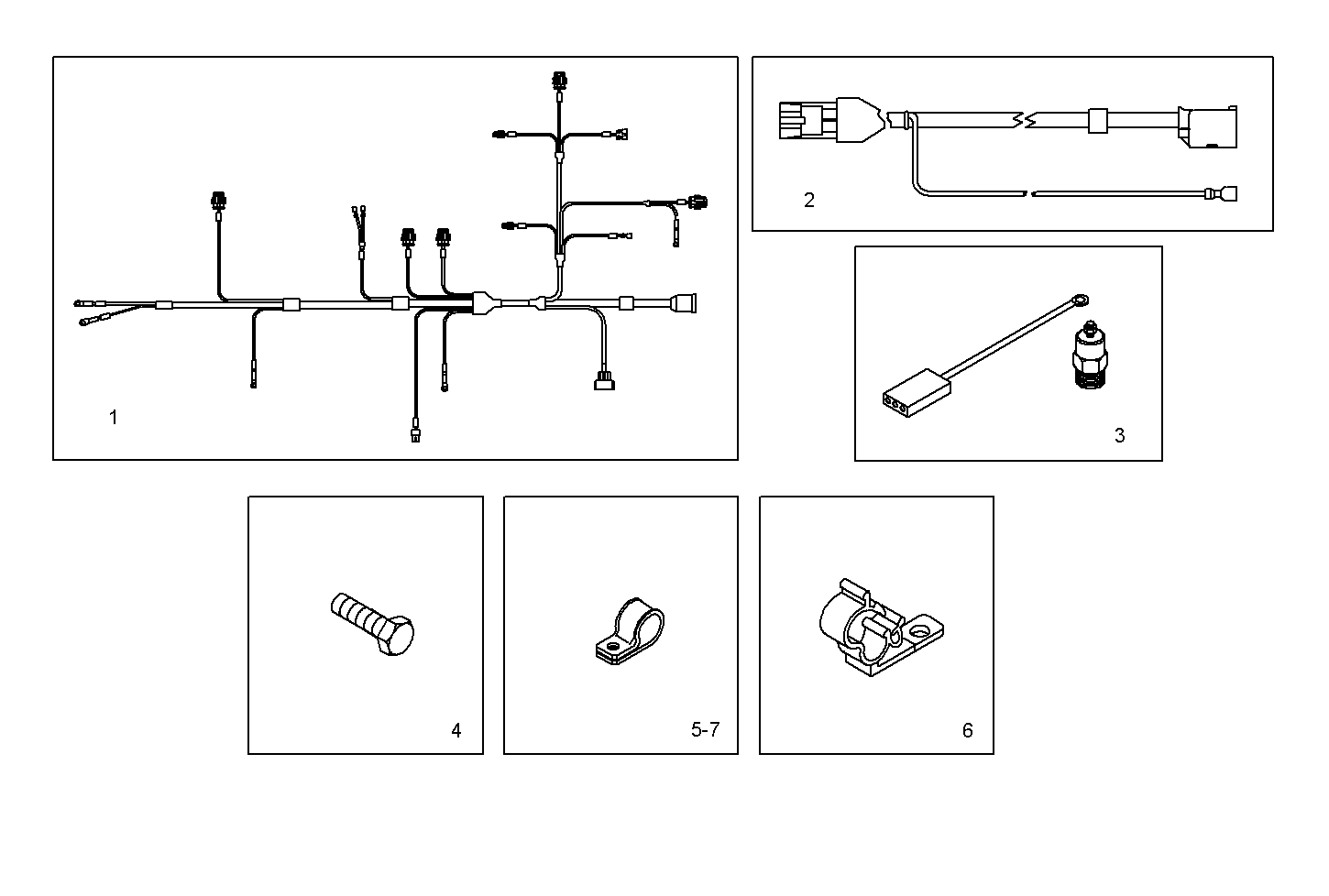

Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8039962 | ENGINE HARNESS | 1 | ||
| 2 | 8037861 | ENGINE HARNESS | 1 | ||
| 3 | 8038028 | WIRE/CABLE | 1 | ||
| 4 | 16600224 | HEXAGON BOLT | 6 | ||
| 5 | 10441290 | PIPE CLIP | 2 | ||
| 6 | 99453771 | RETAINER | 4 | ||
| 7 | 17317092 | CLIP | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| N45MSAD00.50 | NEF 4 mechanic. - TIER 2 | view |
| N67MNTE20.00 | NEF 6 mechanic. - TIER 2 | view |
| N45MNSE00.00 | NEF 4 mechanic. - TIER 2 | view |
| N67MNAE00.00 | NEF 6 mechanic. - TIER 2 | view |
| N45MNTE20.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNAE00.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNAU00.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNSU00.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNTU20.00 | NEF 4 mechanic. - TIER 2 | view |
| N67MNTU20.00 | NEF 6 mechanic. - TIER 2 | view |
| N45MNAD00.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNSD00.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNTD20.00 | NEF 4 mechanic. - TIER 2 | view |
| N67MNTD20.00 | NEF 6 mechanic. - TIER 2 | view |
| N45MSTD20.50 | NEF 4 mechanic. - TIER 2 | view |
| N45MSSD00.50 | NEF 4 mechanic. - TIER 2 | view |
| N45MNTD22.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MSTD22.50 | NEF 4 mechanic. - TIER 2 | view |
| N67MSAE00.00 | NEF 6 mechanic. - TIER 2 | view |
| N67MSTD23.00 | NEF 6 mechanic. - TIER 2 | view |
| N67MSTD20.00 | NEF 6 mechanic. - TIER 2 | view |
| N67MNTD23.00 | NEF 6 mechanic. - TIER 2 | view |
| N67MNTX20.00 | NEF 6 mechanic. - TIER 3 | view |
| N67MNTX20.00A810 | NEF 6 mechanic. - TIER 3 | view |
| N67MSTD20.00A810 | NEF 6 mechanic. - TIER 2 | view |
| N45MNTX20.00 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTX20.50 | NEF 4 mechanic. - TIER 3 | view |
| N45MSSX02.50 | NEF 4 mechanic. - TIER 3 | view |
| N45MNSX02.00 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTX21.50 | NEF 4 mechanic. - TIER 3 | view |
| N45MNTX21.00 | NEF 4 mechanic. - TIER 3 | view |
| N45MSSX00.50 | NEF 4 mechanic. - TIER 3 | view |
