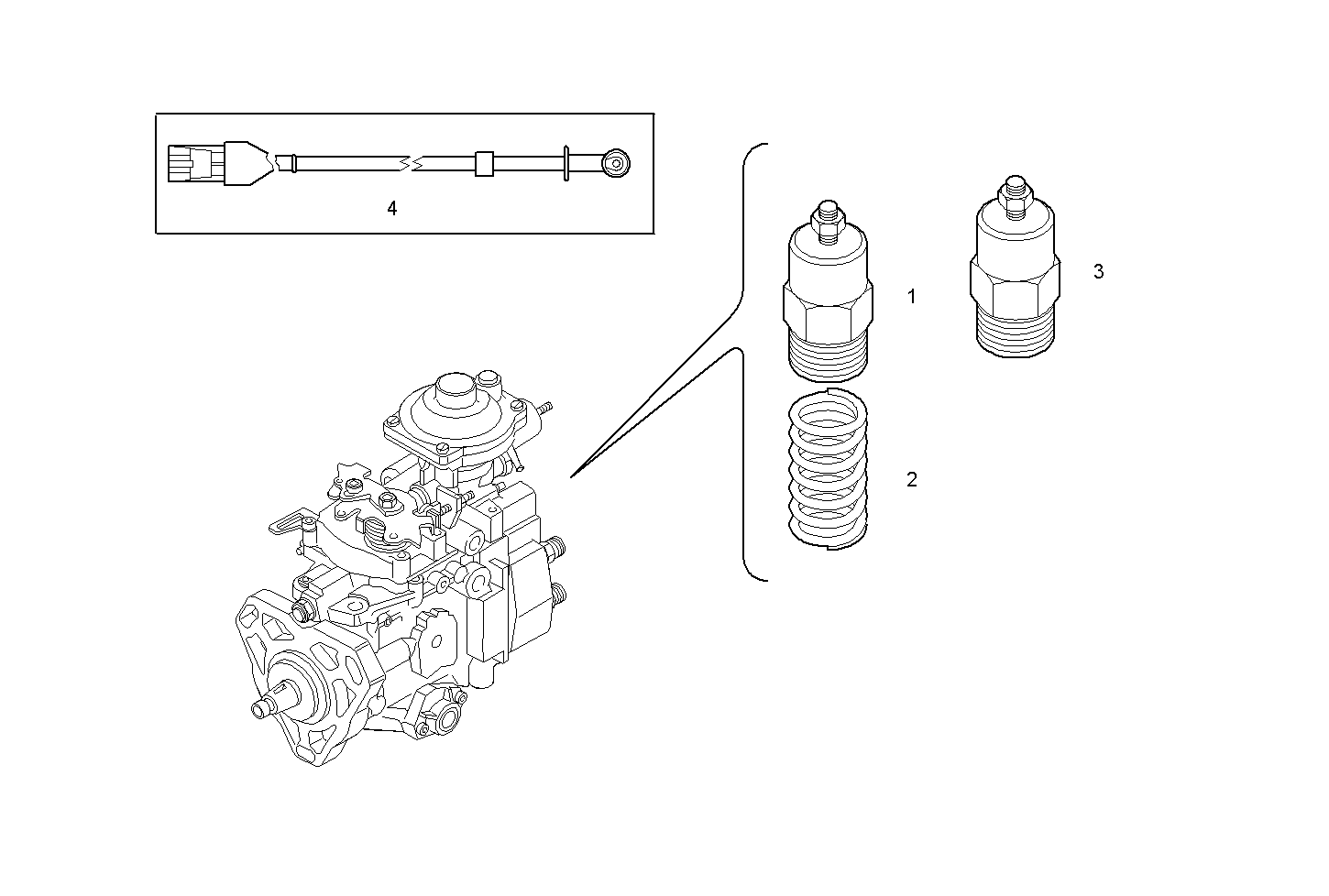

STOP SOLENOID - ENERGIZE TO STOP - 24V
Assembly ID: A38420501
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8105548 | ELECTROVALVE | 1 | ||
| 2 | 8032965 | SPRING | 1 | ||
| 3 | 8036949 | SOLENOID | 1 | ||
| 4 | 8037858 | ENGINE HARNESS | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| N45MSAD00.50 | NEF 4 mechanic. - TIER 2 | view |
| N67MNTE20.00 | NEF 6 mechanic. - TIER 2 | view |
| N45MNSE00.00 | NEF 4 mechanic. - TIER 2 | view |
| N67MNAE00.00 | NEF 6 mechanic. - TIER 2 | view |
| N45MNTE20.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNAE00.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNAU00.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNSU00.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNTU20.00 | NEF 4 mechanic. - TIER 2 | view |
| N67MNAU00.00 | NEF 6 mechanic. - TIER 2 | view |
| N67MNTU20.00 | NEF 6 mechanic. - TIER 2 | view |
| N45MNAD00.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNSD00.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNTD20.00 | NEF 4 mechanic. - TIER 2 | view |
| N67MNTD20.00 | NEF 6 mechanic. - TIER 2 | view |
| N45MSTD20.50 | NEF 4 mechanic. - TIER 2 | view |
| N45MSSD00.50 | NEF 4 mechanic. - TIER 2 | view |
| N45MNTD22.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MSTD22.50 | NEF 4 mechanic. - TIER 2 | view |
| N67MSAE00.00 | NEF 6 mechanic. - TIER 2 | view |
| N67MSTD23.00 | NEF 6 mechanic. - TIER 2 | view |
| N67MSTD20.00 | NEF 6 mechanic. - TIER 2 | view |
| N67MNTD23.00 | NEF 6 mechanic. - TIER 2 | view |
| N67MNTX20.00 | NEF 6 mechanic. - TIER 3 | view |
| N45MNTX20.00 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTX20.50 | NEF 4 mechanic. - TIER 3 | view |
| N45MSSX02.50 | NEF 4 mechanic. - TIER 3 | view |
| N45MNSX02.00 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTX21.50 | NEF 4 mechanic. - TIER 3 | view |
| N45MNTX21.00 | NEF 4 mechanic. - TIER 3 | view |
