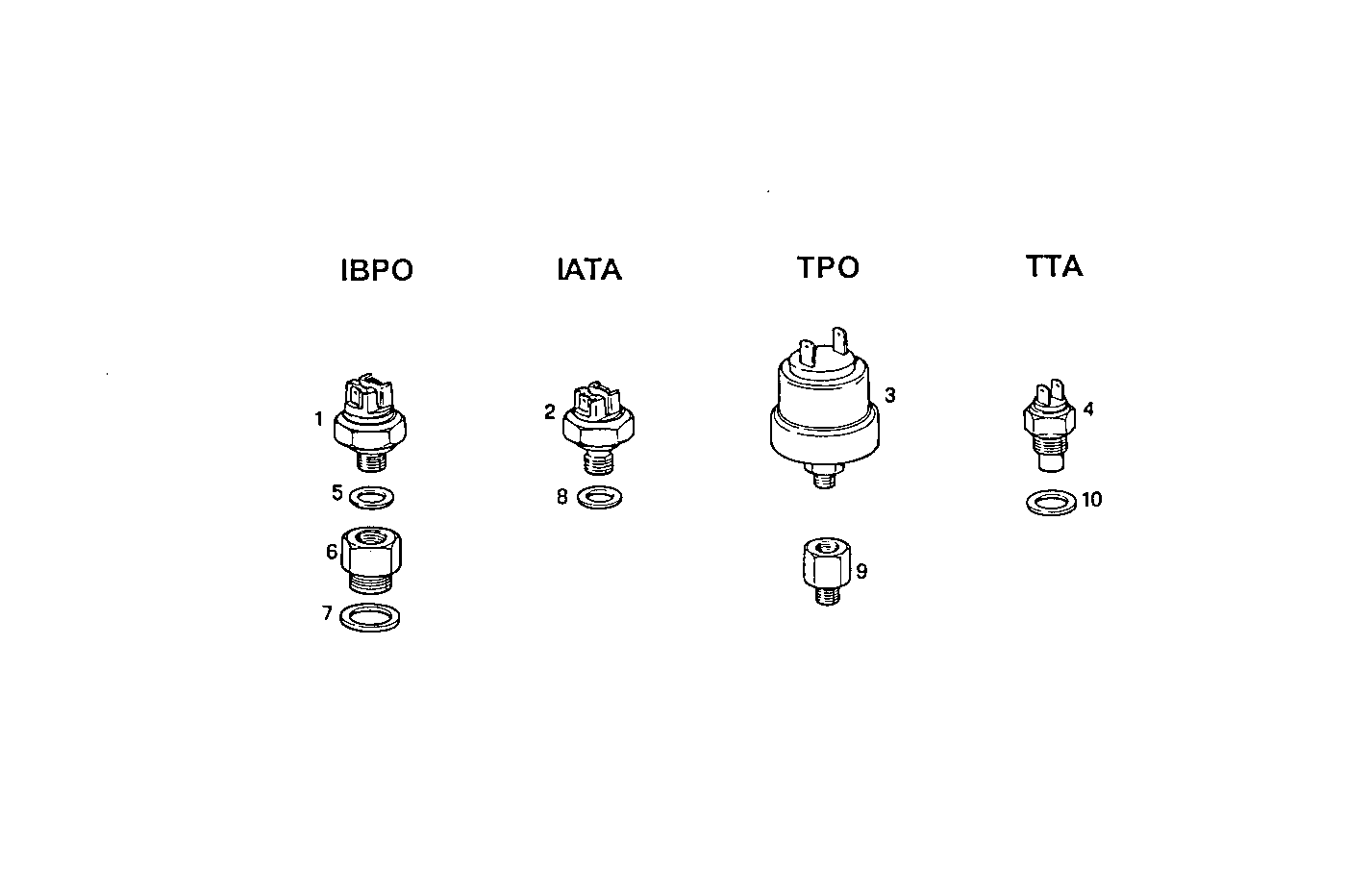

SENDER UNITS FOR INSTRUMENTS
Assembly ID: A38550018
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8114030 | TRANSMITTER | 1 | ||
| 2 | 8019334 | TRANSMITTER | 1 | ||
| 3 | 8008031 | TRANSMITTER | 1 | ||
| 4 | 8008030 | TRANSMITTER | 1 | ||
| 5 | 4858607 | WASHER | 1 | ||
| 6 | 8113358 | PIPE SOCKET | 1 | ||
| 7 | 10263460 | WASHER | 1 | ||
| 8 | 4858608 | SEAL GASKET | 1 | ||
| 9 | 4929444 | PIPE SOCKET | 1 | ||
| 10 | 4858609 | WASHER | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8361SRM38.10 | 8361SRM38 | view |
| 8361SRM38.11 | 8361SRM38 | view |
| 8361SRM40.00 | 8361SRM40 | view |
| 8361SRM40.01 | 8361SRM40 | view |
| 8361SM21.00 | 8361SM21 | view |
| 8361SRM32.00 | 8361SRM32 | view |
| 8361SM21.01 | 8361SM21 | view |
