SENDER UNITS FOR INSTRUMENTS
Assembly ID: A38560020

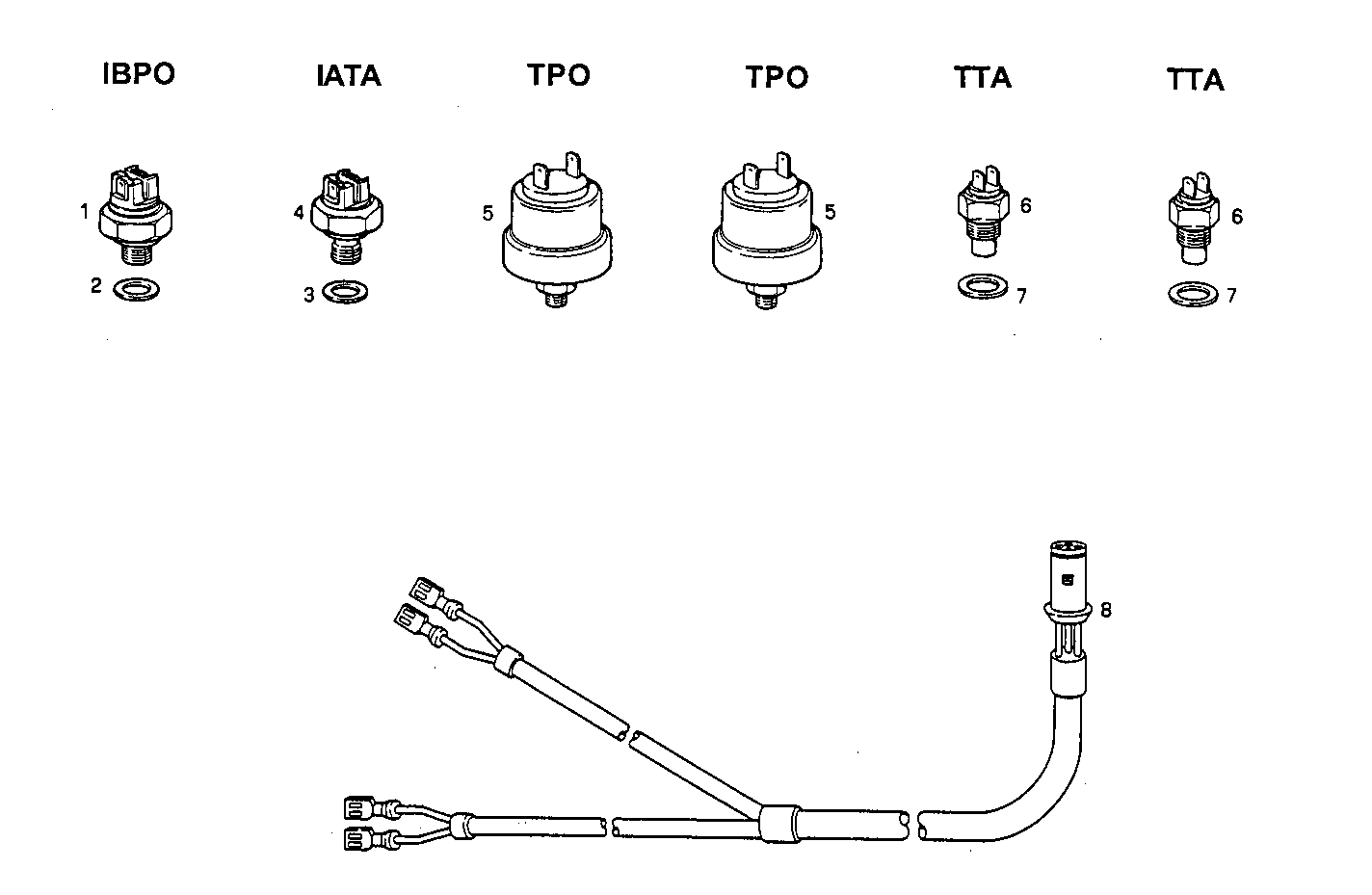

Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8114030 | TRANSMITTER | 1 | ||
| 2 | 4858607 | WASHER | 1 | ||
| 3 | 4858606 | GASKET | 1 | ||
| 4 | 8019334 | TRANSMITTER | 1 | ||
| 5 | 8008031 | TRANSMITTER | 2 | ||
| 6 | 8008030 | TRANSMITTER | 2 | ||
| 7 | 4858609 | WASHER | 2 | ||
| 8 | 8017226 | ENGINE HARNESS | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8061SRM25.12 | 8061SRM25 | view |
| 8061SRM25.42 | 8061SRM25 | view |
| 8061SRM33.10 | 8061SRM33 | view |
| 8061SRM33.40 | 8061SRM33 | view |
| 8061SRM25.13 | 8061SRM25 | view |
| 8061SRM25.33 | 8061SRM25 | view |
| 8061SRM33.12 | 8061SRM33 | view |
| 8061SRM33.42 | 8061SRM33 | view |
