SENDER UNITS ALARMS INSTRUMENT - 12/24V
Assembly ID: A38570009

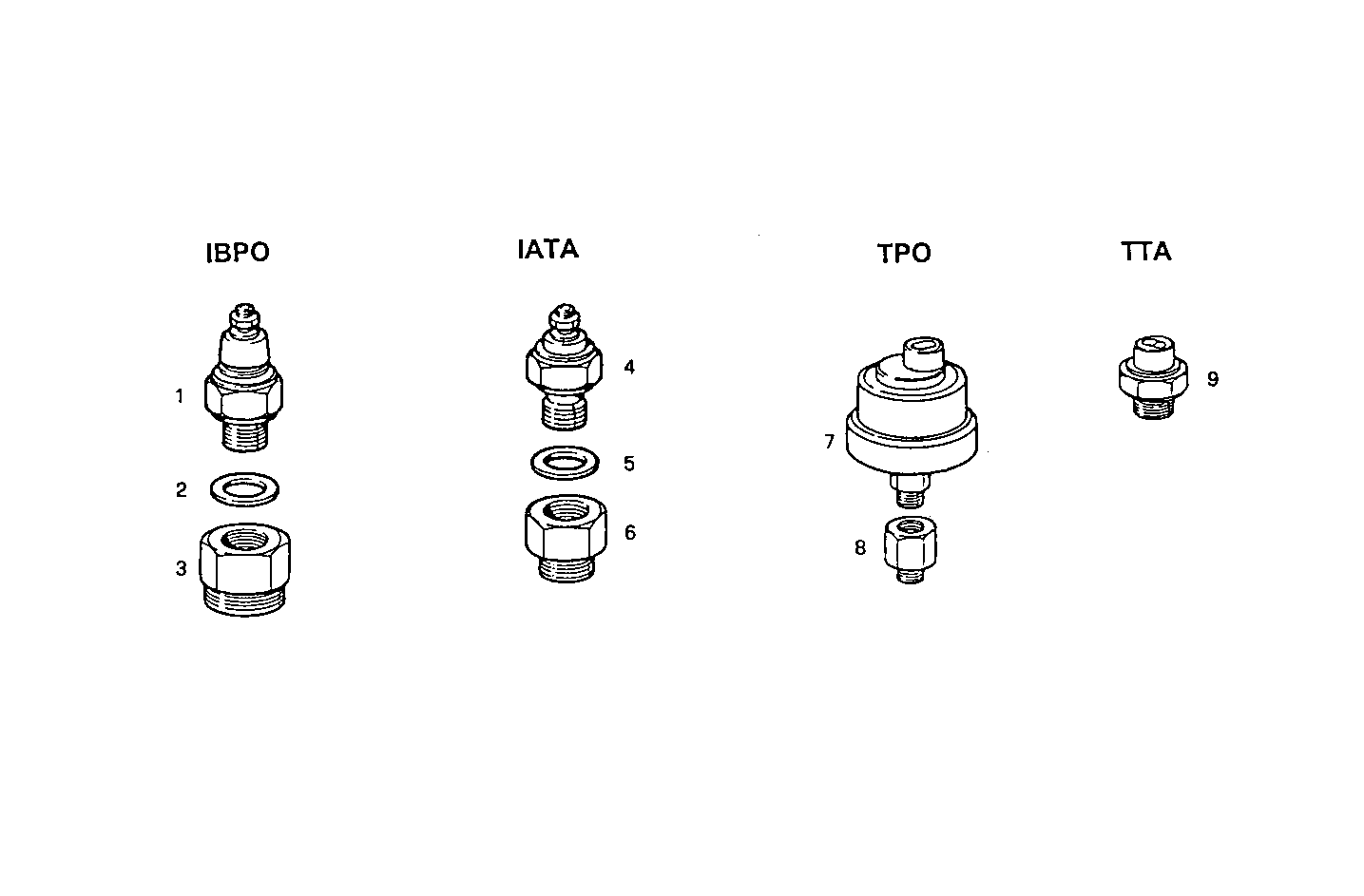

Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8104140 | TRANSMITTER | 1 | ||
| 2 | 4858607 | WASHER | 1 | ||
| 3 | 8014221 | PIPE SOCKET | 1 | ||
| 4 | 8104141 | TRANSMITTER | 1 | ||
| 5 | 4858608 | SEAL GASKET | 1 | ||
| 6 | 8014220 | PIPE SOCKET | 1 | ||
| 7 | 8100563 | TRANSMITTER | 1 | ||
| 8 | 8014230 | PIPE SOCKET | 1 | ||
| 9 | 4448131 | TEMP. TRANSMITTER | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 7450i10.05 | 7450i10 | view |
| 7450i16.05 | 7450i16 | view |
| 7450Si10.05 | 7450Si10 | view |
| 7675i10.05 | 7675i10 | view |
| 7675Si10.05 | 7675Si10 | view |
| 7675Si15.05 | 7675Si15 | view |
