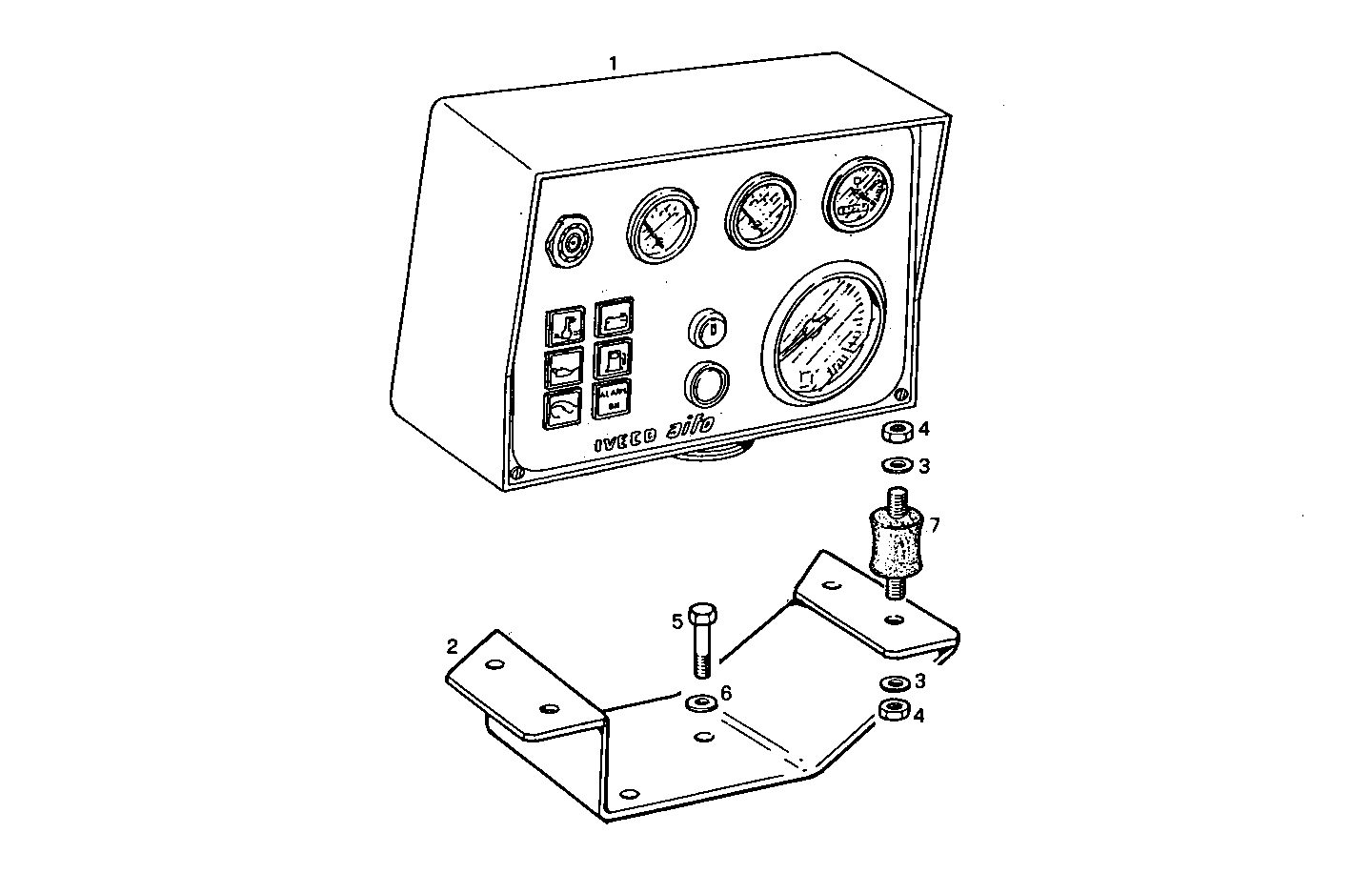

ELECTRIC INSTRUMENTS PANEL
Assembly ID: A38670009
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8025324 | INSTRUMENTS BOARD | 1 | ||
| 2 | 8011723 | SUPPORT | 1 | ||
| 3 | 17088474 | WASHER | 8 | ||
| 4 | 17037821 | HEXAGON NUT | 8 | ||
| 5 | 16605524 | HEXAGON BOLT | 3 | ||
| 6 | 17089474 | SPRING WASHER | 3 | ||
| 7 | 4910949 | RUBBER LUG | 4 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8361SRi13.00 | 8361SRi13 | view |
