| 1 |

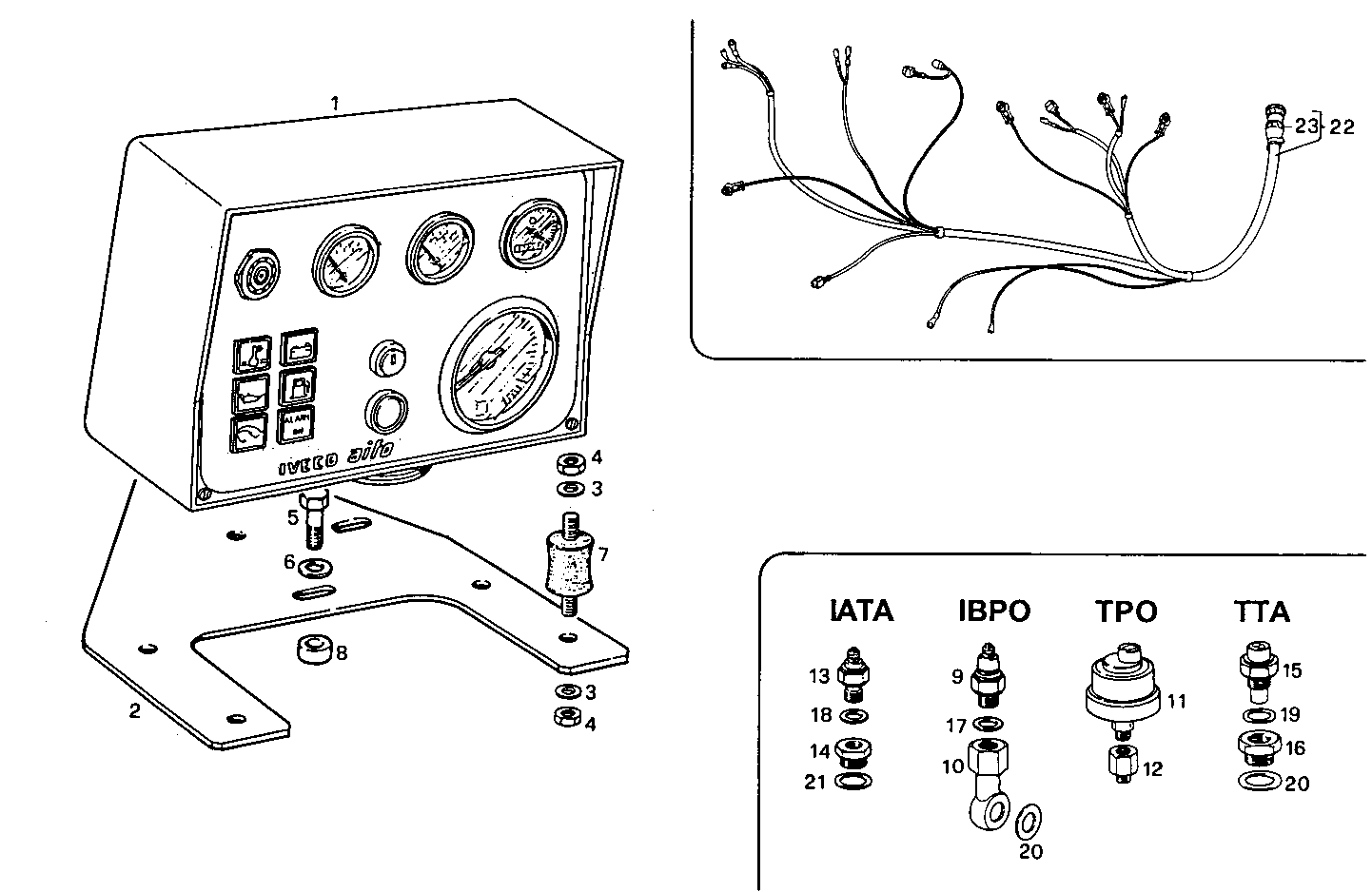

8005746
|
INSTRUMENTS BOARD
|
|
1
|
|
| 2 |
4935403
|
SUPPORT
|
|
1
|
|
| 3 |
11197771
|
SPRING WASHER
|
|
8
|
|
| 4 |
15896211
|
HEXAGON NUT
|
|
8
|
|
|
17037821 |
HEXAGON NUT |
|
8 |
|
| 5 |
16044421
|
HEXAGON BOLT
|
|
3
|
|
|
16606324 |
HEXAGON BOLT |
|
3 |
|
| 6 |
11198371
|
SPRING WASHER
|
|
3
|
|
|
17090274 |
SPRING WASHER |
|
3 |
|
| 7 |
4910949
|
RUBBER LUG
|
|
4
|
|
| 8 |
13606411
|
SPACER
|
|
3
|
|
| 9 |
8104140
|
TRANSMITTER
|
|
1
|
|
|
8048200 |
TRANSMITTER |
|
1 |
|
| 10 |
8113358
|
PIPE SOCKET
|
|
1
|
|
| 11 |
8100563
|
TRANSMITTER
|
|
1
|
|
|
8036275 |
TRANSMITTER |
|
1 |
|
| 12 |
4929444
|
PIPE SOCKET
|
|
1
|
|
| 13 |
8104141
|
TRANSMITTER
|
|
1
|
|
|
8030937 |
TRANSMITTER |
|
1 |
|
| 14 |
4752787
|
PIPE SOCKET
|
|
1
|
|
| 15 |
4933019
|
TRANSMITTER
|
|
1
|
|
|
8048205 |
TRANSMITTER |
|
1 |
|
| 16 |
4919578
|
PIPE SOCKET
|
|
1
|
|
| 17 |
10296160
|
SEAL GASKET
|
|
1
|
|
| 18 |
10282460
|
SEAL GASKET
|
|
1
|
|
| 19 |
10278660
|
SEAL GASKET
|
|
1
|
|
| 20 |
10263460
|
WASHER
|
|
2
|
|
| 21 |
10263360
|
SEAL GASKET
|
|
1
|
|
| 22 |
8106199
|
ENGINE HARNESS
|
|
1
|
|
| 23 |
8102491
|
CONNECTION
|
|
1
|
|
