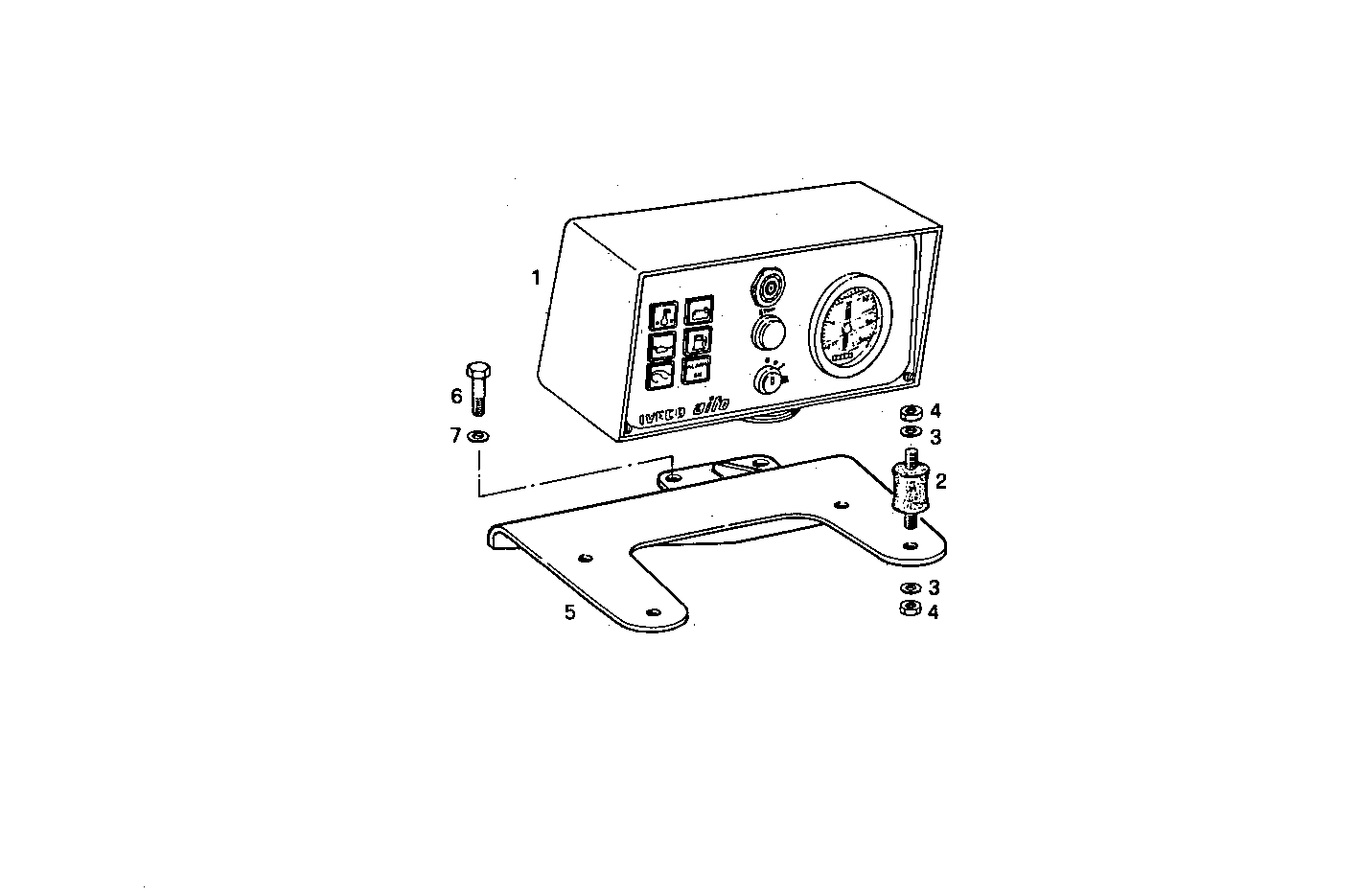

PANEL WITH ELECTRIC RPM-COUNTER
Assembly ID: A38770011
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8025328 | INSTRUMENTS BOARD | 1 | ||
| 2 | 4910949 | RUBBER LUG | 4 | ||
| 3 | 17088474 | WASHER | 8 | ||
| 4 | 17037821 | HEXAGON NUT | 8 | ||
| 5 | 8006995 | RETAINER | 1 | ||
| 6 | 15970521 | HEXAGON BOLT | 2 | ||
| 7 | 17090174 | SPRING WASHER | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8045SE00.50 | 8045SE00 | view |
| 8045E00.50 | 8045E00 | view |
| 8045E00.00 | 8045E00 | view |
| 8035E00.00 | 8035E00 | view |
| 8045SE00.00 | 8045SE00 | view |
| 8065E00.00 | 8065E00 | view |
| 8065SE00.00 | 8065SE00 | view |
| 8045SU00.00 | 8045SU00 | view |
| 8045SU00.50 | 8045SU00 | view |
| 8065LE00.00 | 8065LE00 | view |
| PU8035E00.00A100 | PU8035E00 | view |
| PU8035E00.00A110 | PU8035E00 | view |
| PU8045E00.00A100 | PU8045E00 | view |
| PU8045E00.00A110 | PU8045E00 | view |
| PU8065SE00.00A100 | PU8065SE00 | view |
| PU8065E00.00A100 | PU8065E00 | view |
