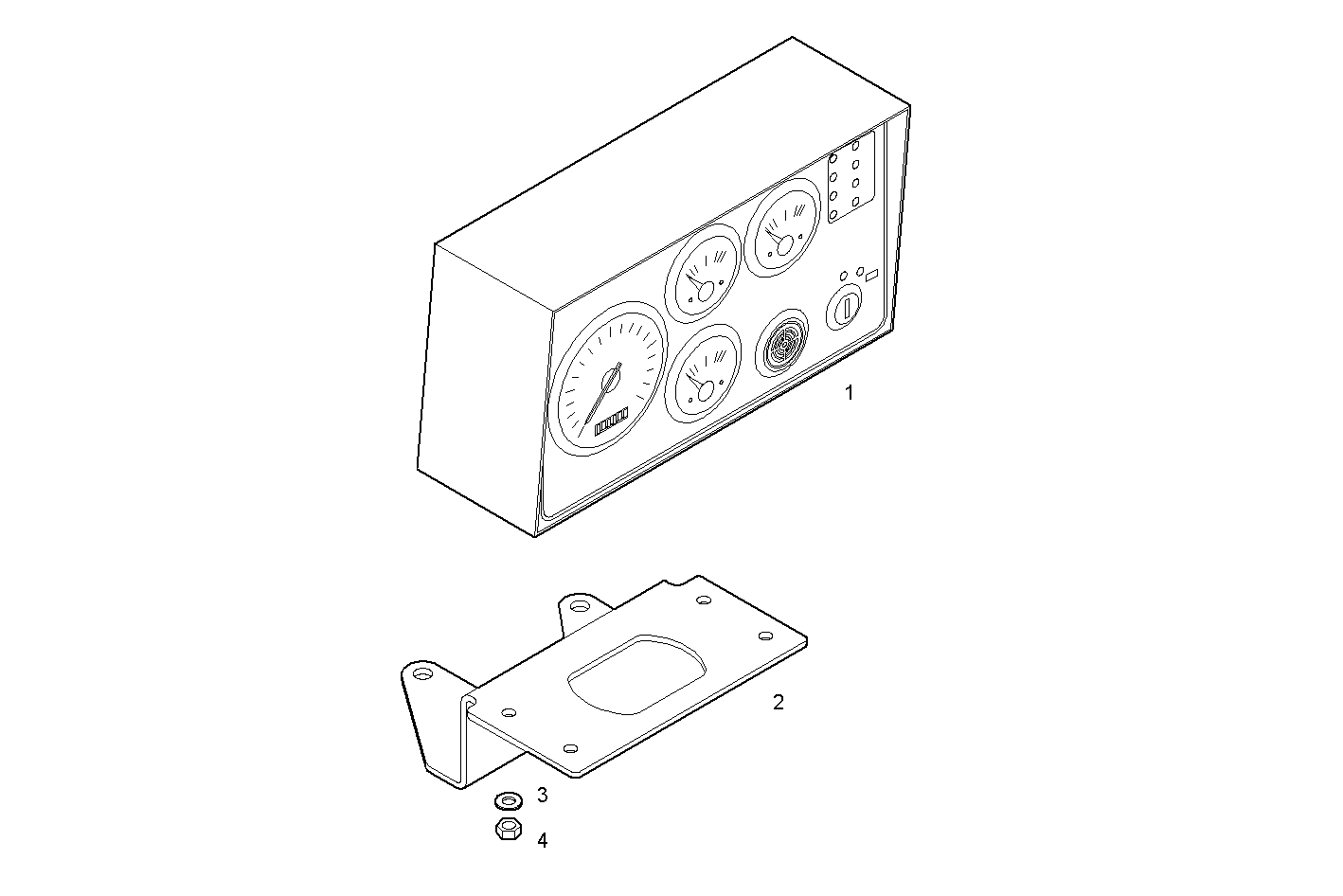

MANUAL CONTROL BOARD
Assembly ID: A38780512
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8038763 | CONTROL BOARD ASSY | 1 | ||
| 2 | 8040407 | SUPPORT | 1 | ||
| 3 | 17088974 | SPRING WASHER | 3 | ||
| 4 | 17037821 | HEXAGON NUT | 3 |
Applies to engines
| Engine | Family | |
|---|---|---|
| N45MNTE20.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNTU20.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNTD20.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MSTD20.50 | NEF 4 mechanic. - TIER 2 | view |
| N45MNTD22.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MSTD22.50 | NEF 4 mechanic. - TIER 2 | view |
| N45MNTF41.00 | NEF 4 mechanic. | view |
| N45MNTF41.10 | NEF 4 mechanic. | view |
| N45MNTF40.10 | NEF 4 mechanic. | view |
| N45MNTX20.00 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTX20.50 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTX21.50 | NEF 4 mechanic. - TIER 3 | view |
| N45MNTX21.00 | NEF 4 mechanic. - TIER 3 | view |
