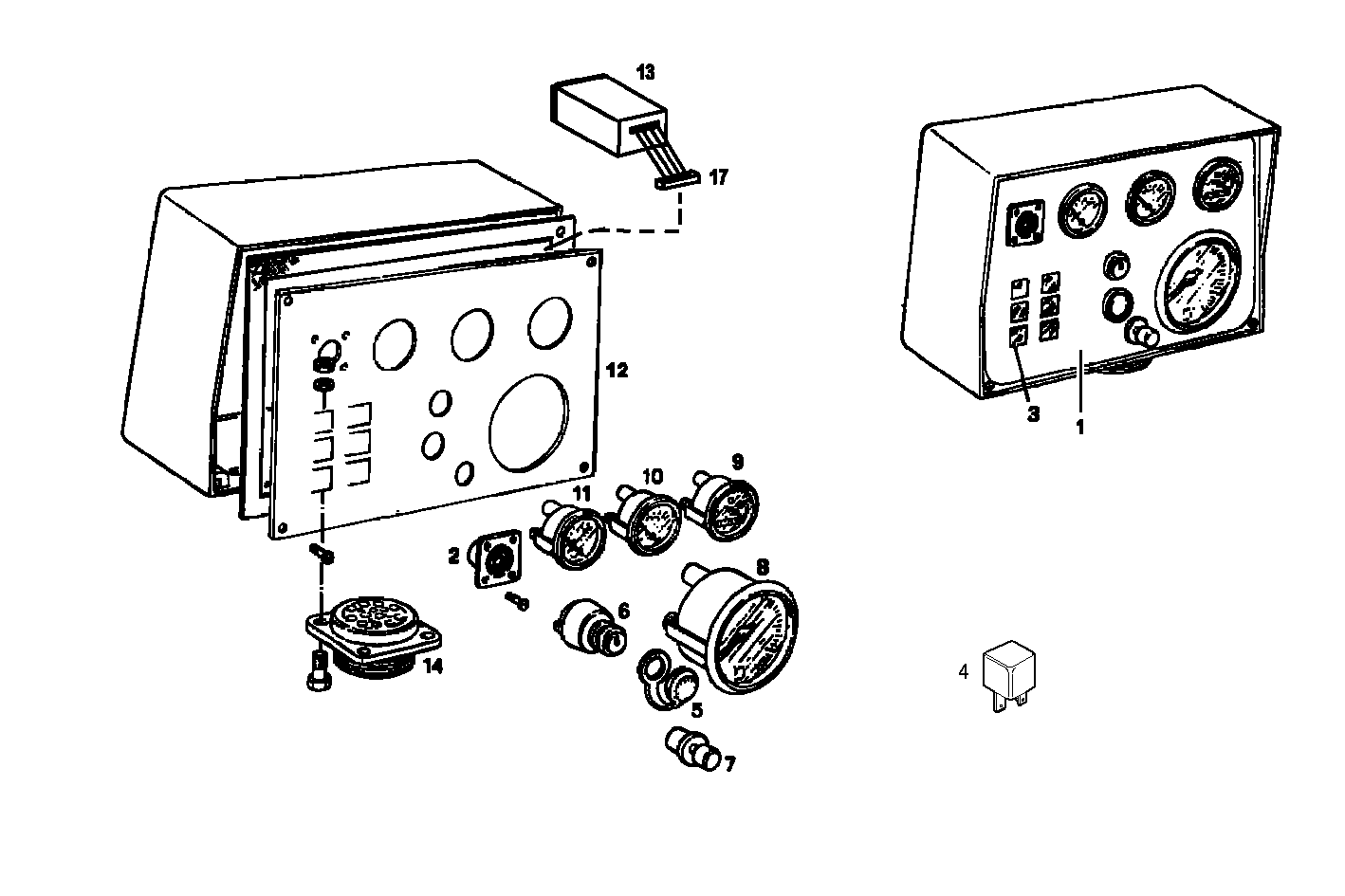

ELECTRIC INSTRUMENTS PANEL

Assembly ID: A38780530

ELECTRIC INSTRUMENTS PANEL

Parts

# Part number Description Note Quantity
1 8025054 INSTRUMENTS BOARD 1
2 8110230 ACOUSTIC HORN 1
3 8110229 WARNING LIGHT 8
4 8109125 RELAY 1
5 8110226 CAP 1
6 8103708 SWITCH 1
7 8025024 PUSH BUTTON 1
8 8030617 REVOLUTION COUNTER 1
9 8030616 VOLTMETER 1
10 8030614 THERMOMETER 1
11 8030615 PRESSURE GAUGE 1
12 8110225 PLATE 1
13 8110228 ELECTRONIC CARD 1
14 8105629 CONNECTION 1
17 8094761 WIRE/CABLE 1

Applies to engines

Engine Family
N67MNAM15.01 NEF 6 mechanic. view
N67MNAM15.31 NEF 6 mechanic. view
N67MNSM22.11 NEF 6 mechanic. view
N67MNTM28.11 NEF 6 mechanic. view
N67MNTM28.31 NEF 6 mechanic. view
N45MNAM10.01 NEF 4 mechanic. view
N67MNAM15.02 NEF 6 mechanic. view
N45MNAM10.02 NEF 4 mechanic. view
N45MNAM10.30 NEF 4 mechanic. view
N67MNTM28.12 NEF 6 mechanic. view
